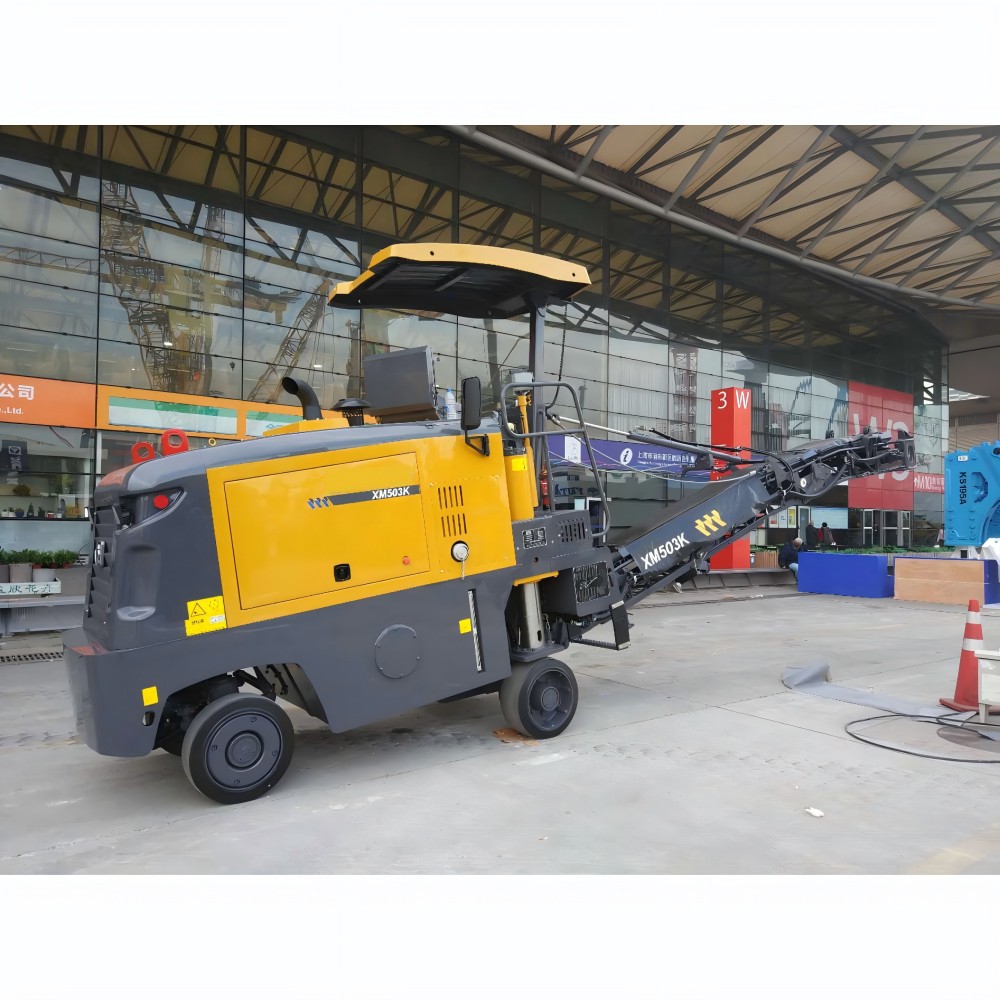

Home > Road machineryMilling machine XCMG XM503K Milling Machine
XCMG XM503K pavement miller users all-wheel-drive,single front wheel steering,with excellent climbing and motor performance,has the characteristics of recycling milled waste,large depth of milling at the same time.It can meet the requirements of the maintenance machinery miniaturization and multifunction,is the main model for municipal road maintenance.
Item | Unit | XM503K |
Milling width | mm | 500 |
Maximum milling depth | mm | 210 |
Tool nose distance | mm | 15 |
Number of tools | 60 | |
Rotor diameter with tool | mm | 750 |
engine model | SC4H-C140 | |
Engine manufacturers | Shangchai | |
Rated speed | rpm | 2200 |
Rated power | Kw | 103 |
Displacement | L | 4.3 |
Fuel consumption at rated power | l/h | 26.2 |
Comprehensive fuel consumption | l/h | 10.5 |
Emission Standards | China-Ⅲ | |
Fuel tank | L | 180 |
Water tank | L | 330 |
Working speed | m/min | 0-30.7 |
Walking speed | Km/h | 0-7.5 |
Theoretical climbing ability | % | 60 |
Milling drum maximum ground clearance | mm | 210 |
Front tire size | mm | 559X178 |
Rear tire size | mm | 559X254 |
Discharging belt width | mm | 350 |
Discharging belt theoretical feeding capacity | m3/h | 44.4 |
Discharge maximum height | mm | 3800 |
Theoretical discharge capacity | m3/h | 80 |
Overall dimensions (length X width X height) | mm | 8185X1888X4080 |
Length X width X height (including conveyor belt) | mm | 6276X1888X2530 |
Length X Width X Height (not including conveyor belts) | mm | 3676X1888X2530 |
Conveyor belt size (length X width X height) | mm | 6000X860X860 |
Total weight | kg | 7550 |
Working weight | kg | 7950 |
Minimum milling radius | mm | 350 |
Maximum ground clearance of milling drum | mm | 210 |
