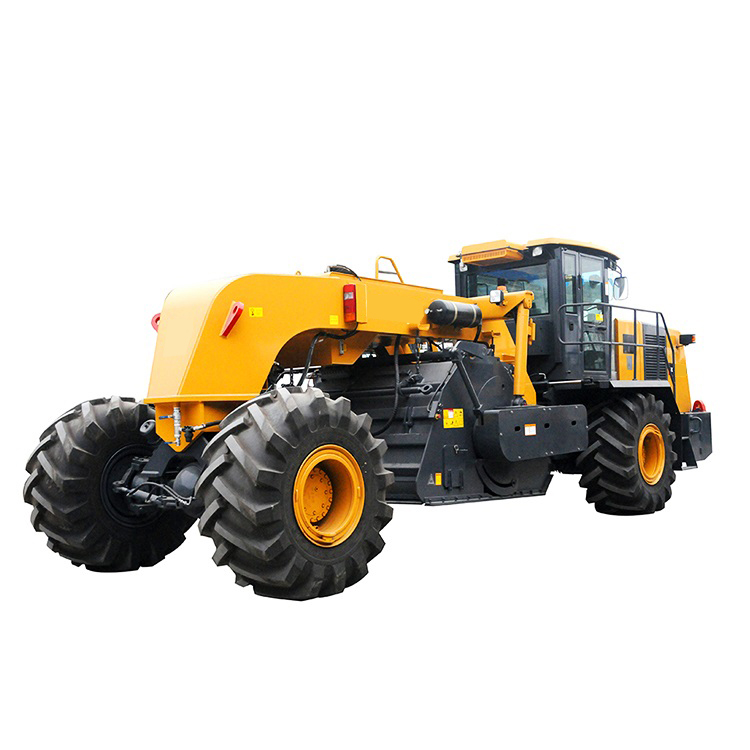

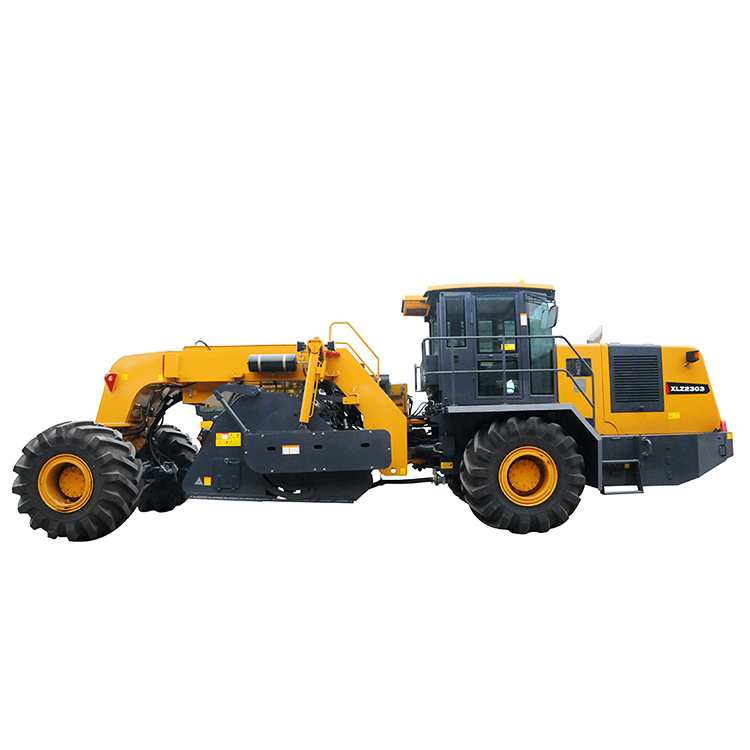

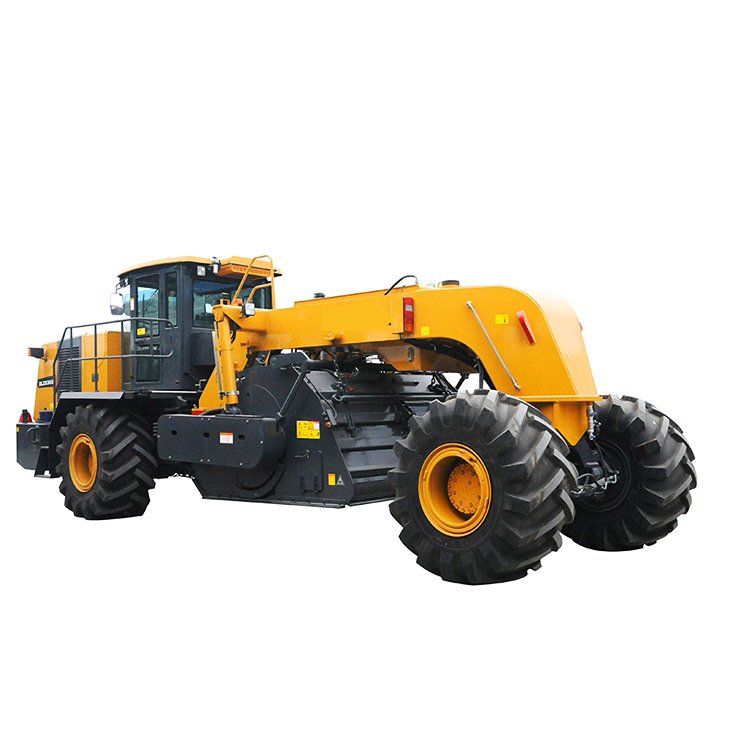

Home > Road machineryMilling machineXCMG XLZ2303S Pavement Cold Recycling Machine
Similar Product
Select the products
Item | Unit | XLZ2303S |
Milling width | mm | 2300/2100 |
Maximum milling depth | mm | 0-400 |
Cutter spacing | mm | 162/144 |
Diameter of milling wheel (with cutter) | mm | 1380 |
Manufacturer | Weichai | |
Cooling type | Water-cooled + air-air inter-cooled | |
Model | WP13G530E310 | |
The quantity of cylinder stator | 6 | |
Rated power | kW | 390 |
Engine speed | rpm | 2100 |
Oil consumption: Full load | kg/h | 69.86 |
Working speed | km/h | 0- 3.2/4 |
Traveling speed | km/h | 0-22.8/29 |
Theoretical gradeability (working gear) | % | 20 |
Ground clearance | mm | 350 |
Front axle load | kg | 17000 |
Rear axle load | kg | 9500/5500 |
Shipping weight | kg | 26500/22500 |
Working weight | kg | 26500/22500 |
Fuel tank | L | 650 |
Hydraulic oil tank | L | 380 |
Water tank | L | 1000 |
Voltage of electric system | V | 24 |
Machinery(length*width*height) | mm | 9232x3262X3450 |
