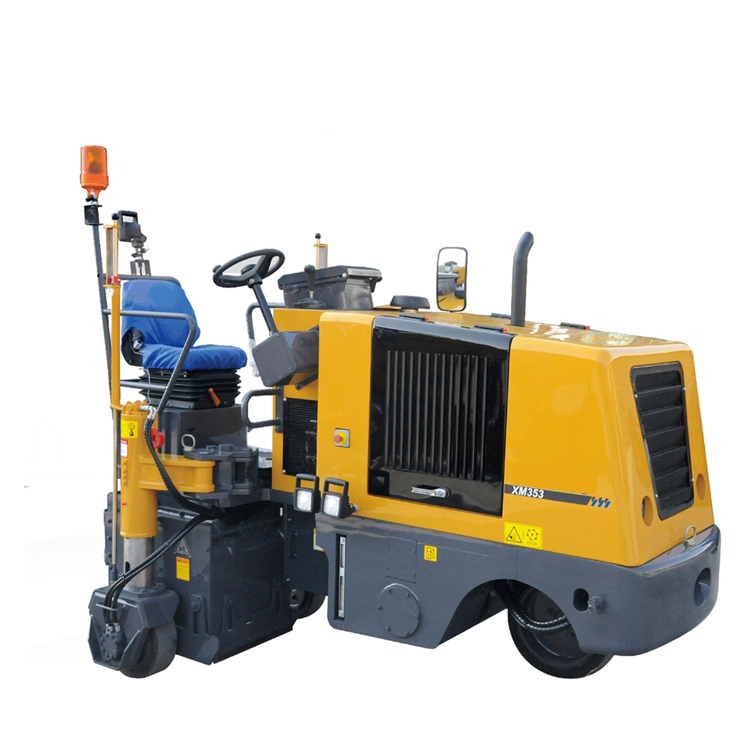

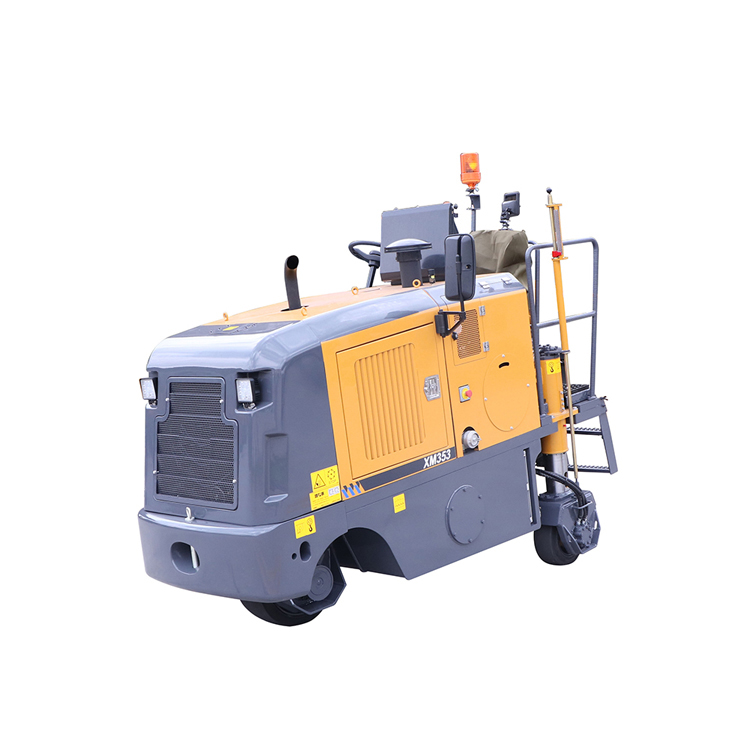

Home > Road machineryMilling machine XCMG XM353 Milling Machine
The equipment features advanced performance, high efficiency, simple process, easy control of milling depth, flexible operation, good maneuverability and the old material recycling and utilization. It is an ideal equipment for pavement maintenance and renovation.
Performance and characteristic
Hydraulic driving milling drum has the obvious characteristics of stable milling and high efficiency.
Compact three-wheeled machine with front-wheel drive .The advance speed is infinitely variable in both gear which can be suitable for the requirement of different working conditions.
The front steering driving axie has large steering angle and small turming radius ,can mill along the manhole covers.
The high-strength and high wear resistance imported cutter head and cutter rest have long service life and low construction cost.
The imported hydraulic elements have high working reliability.
Excellent welting milling performance with right rear leg which can be fast swung into the frame makes the milling drum attached to the road edge stone or wall for milling operation.
Hydraulic handheld breakers and rumble strip equipment can be selected.
Model | XM353 | ||
Engine | Model | Deutz | |
Rated Power/ Speed | kw/rpm | 72/2200 | |
Operating Speed | m/min | 0~40 | |
Driving Speed | km/h | 0~5.6 | |
Specifications | Gradeability | % | 50 |
Ground clearance | mm | 120 | |
Operating Weight | kg | 5000 | |
Max Milling Width | mm | 500 | |
Max Milling Depth | mm | 120 | |
Operating Parameters | Number of tools | 36/48 | |
Drum diameter with tools | mm | 580 | |
Overall Size | Machinery (LX WX H) | mm | 3170x1430x2350 |
Fuel Tank Capacity | L | 95 | |
Hydraulic Oil Tank Capacity | L | 100 | |
Water Tank Capacity | L | 200 |
