Home > Road machineryMilling machineXCMG XM1003 Milling Machine

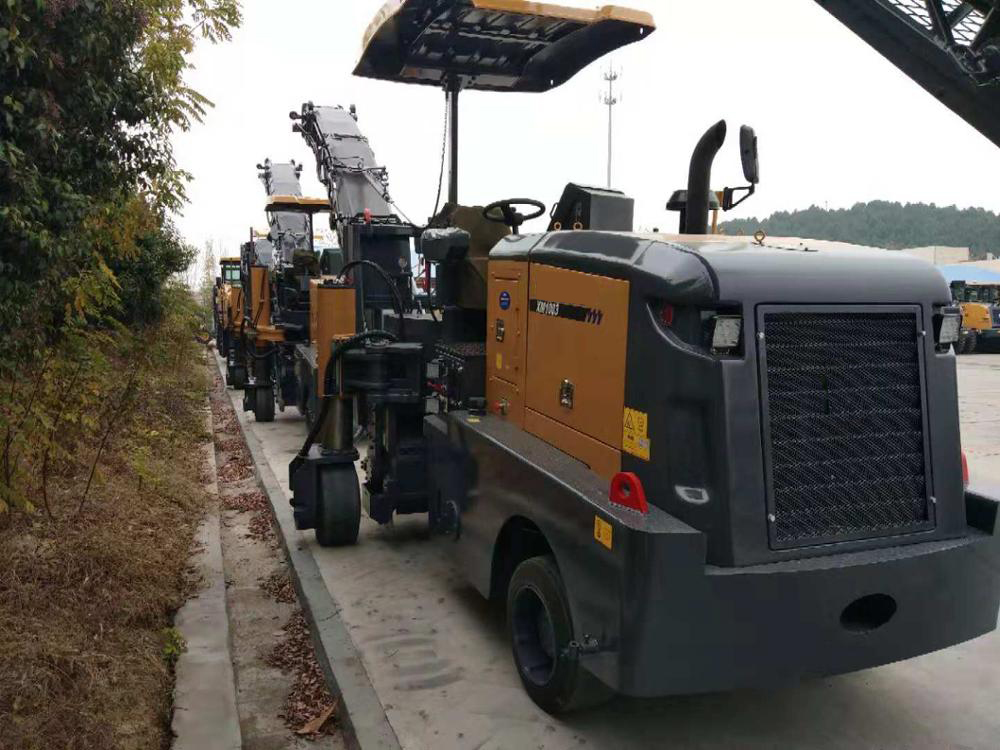

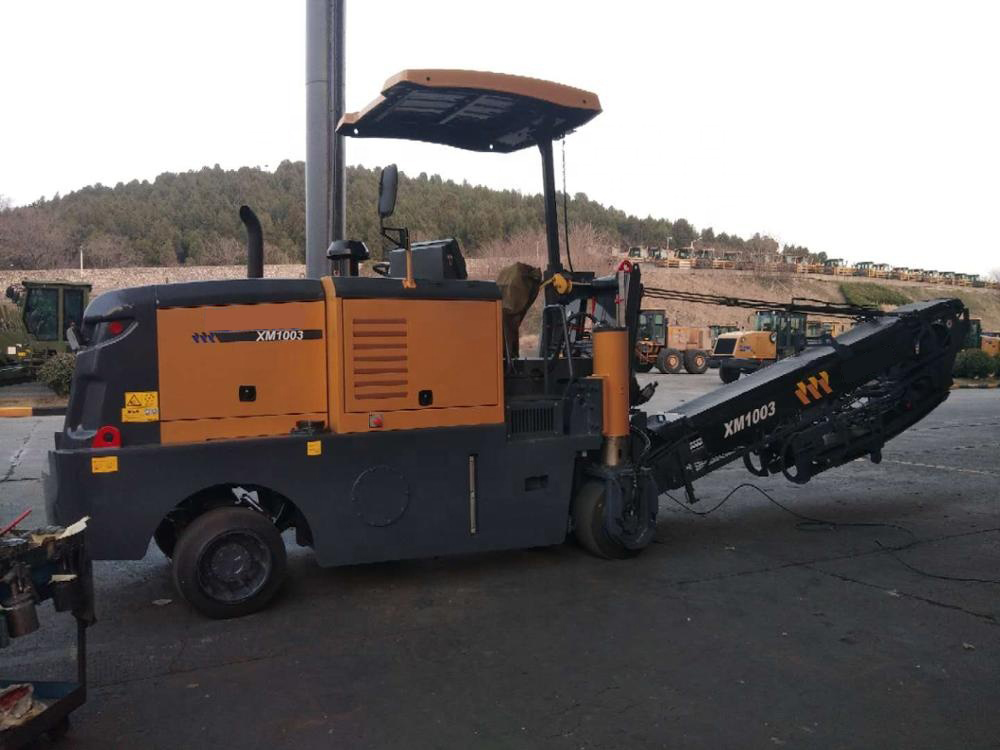

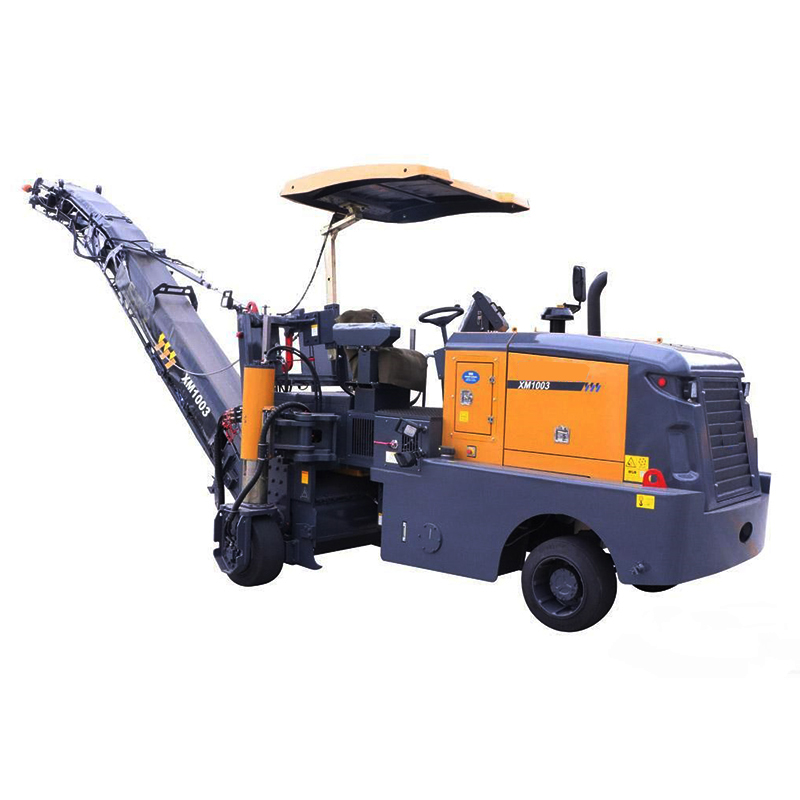

XM1003 road milling machine is a high-performance 1m-wide/1.3m-wide milling machine mainly used for the digging and renovation of asphalt concrete pavements in highways, downtown roads, airports, cargo yards, and parking lots.
This machine is applied with advanced technologies including TTC microcomputer intelligent control technology, variable power energy-saving technology, limit load control technology, full-hydraulic four-wheel drive technology, China-III/Euro-III compliant high pressure common rail electronic injection engine technology, intelligent sprinkling control technology, engine high temperature protection technology, and construction data management technology.
With high working efficiency, simple construction processes, easy control of milling depth, easy and flexible operations, good mobility, and direct recycling of milled old material, this machine can be extensively applied for the repair, renovation, and maintenance of asphalt roads.
Model | XM1003 | ||
Engine | Model | Shangchai | |
Rated Power/ Speed | kw/rpm | 162/2200 | |
Operating Speed | m/min | 0~45 | |
Driving Speed | km/h | 0~8 | |
Specifications | Gradeability | % | 50 |
Ground clearance | mm | 180 | |
Operating Weight | kg | 15600 | |
Max Milling Width | mm | 1000 | |
Max Milling Depth | mm | 180 | |
Operating Parameters | Number of tools | 82 | |
Drum diameter with tools | mm | 700 | |
Overall Size | Machinery (LX WX H) | mm | 4690x2500x3220 |
Conveyor (LxWxH) | mm | 8050x1070x980 | |
Fuel Tank Capacity | L | 350 | |
Hydraulic Oil Tank Capacity | L | 130 | |
Water Tank Capacity | L | 800 | |
