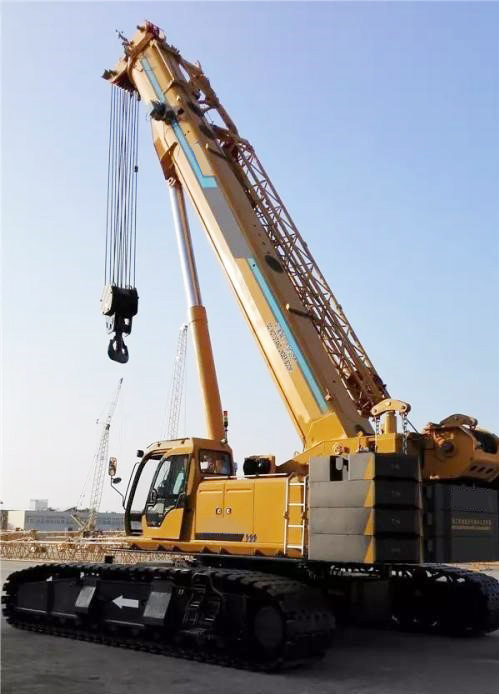

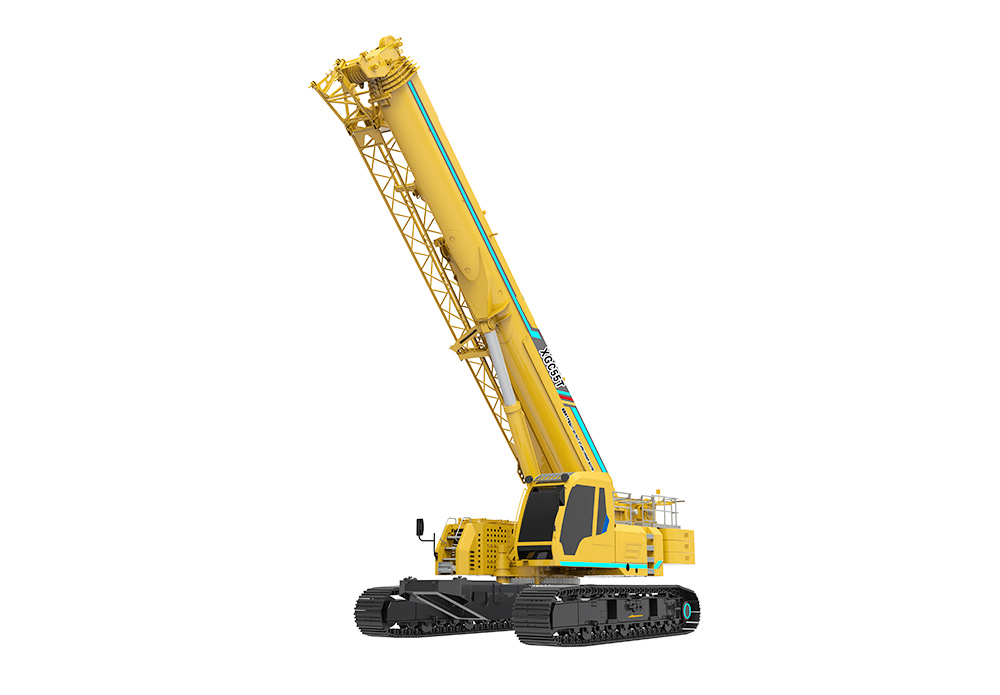

XGC55T integrated transport is only disassembly of counterweight with high assembly/ disassembly efficiency. (transport width 2.98m, transport weight ≤ 38t).
Performance Characteristics:
Equipped with two modes of no-load in high-speed and with-load in low-speed to achieve automatic switch-over for travel with-load in high-speed, overload travel protection function, to ensure the safety for travel with-load.
Automatic direction change function of forward 1 backward travel, without changing steering direction, so as to make operation more humanization. * Use of mixed luffing down technology, to ensure not only smooth gravity falling but also fast dynamic falling, for energy-saving, stable, fast and efficient operation.
Item | Unit | Specification |
Dimension | ||
Overall length | (mm) | 12736 |
Overall width | (mm) | 4800/3400 |
Overall height | (mm) | 3247 |
Main. Driven wheel center distance | (mm) | 4170 |
crawler width | (mm) | 760 |
Weight | ||
Dead weight in travel state | (kg) | 62600 |
Travel | ||
No load travel speed | (km/h) | 3 |
Full load travel speed | (km/h) | 1.5 |
Min. ground clearance | (mm) | 436 |
Max. gradeability | (%) | 45 |
Ground pressure | (MPa) | 0.076 |
Engine | ||
Noise | (A)) | 80 |
Engine model | - | QSB6.7 |
Engine rated output | (kW) | 164 |
Engine rated Speed | (r/min) | 2200 |
Engine emission standard | Off road EU Stage IIIA | |
Volume | ||
Hydraulic oil tank volume | (L) | 900 |
Fuel tank volume | (L) | 500 |
Lifting performance | ||
Max. total rated lifting load | (t) | 55 |
Min. rated working radius | (m) | 3 |
Base boom max. load moment | (kN·m ) | 2116.8 |
Full extend boom max. load moment | (kN·m ) | 1207 |
Lifting height-base boom | (m) | 10.9 |
Lifting height-full extend boom | (m) | 41.4 |
Lifting height-full extend boom + jib | (m) | 55 |
Base boom | (m) | 10.6 |
Full-extend boom | (m) | 41 |
Full-extend boom+Jib | (m) | 57 |
Jib angle | (°) | 0°、15°、30° |
Working speed | ||
Boom elevating time | (s) | 60 |
Boom telescoping time | (s) | 110 |
Max. slewing speed | (r/min) | 2 |
Main winch max. speed(single line) | (m/min ) | 140 |
Auxiliary winch max.speed(single line) | (m/min ) | 140 |
