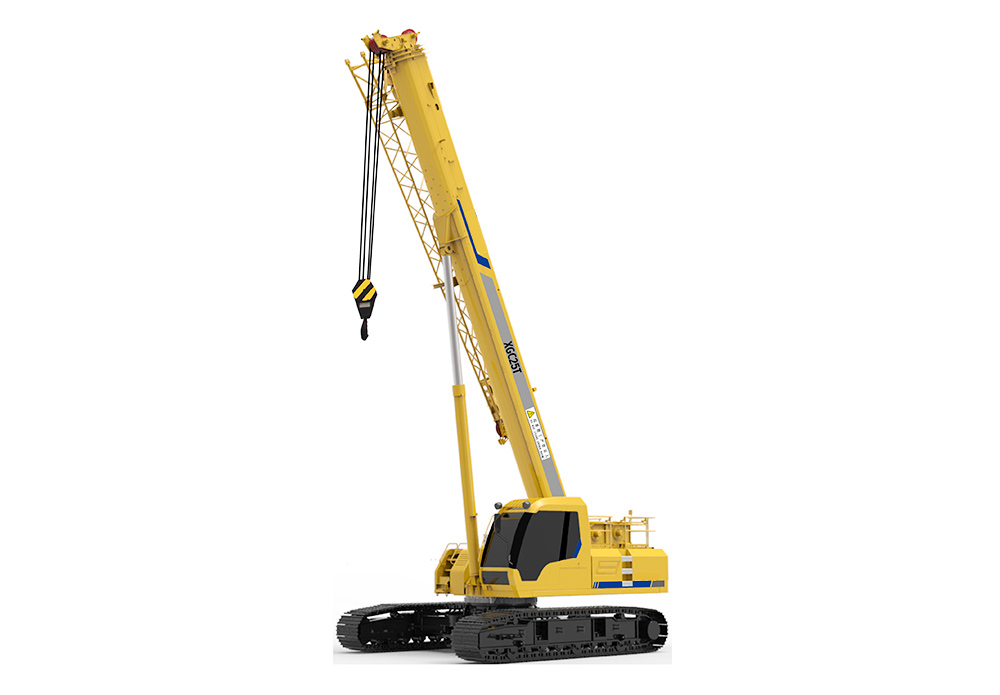

Deep integration of XCMG two major product technology advantages of wheeled cranes and crawler cranes, full study of global customers needs, being proud of launching XGC series telescopic boom crawler crane with both functions of telescopic boom and travel with a load. XGC25T is of integrated transport design without disassembly, greatly save transport costs. (transport width 2.95m, transport weight ≤ 34.9t).
Performance Characteristics:
Equipped with two modes of no-load in high-speed and with-load in low-speed to achieve automatic switch-over for travel with-load in high-speed, overload travel protection function, to ensure the safety for travel with-load.
Automatic direction change function of forward/ backward travel, without changing steering direction, so as to make operation more humanization.
Use of mixed luffing down technology, to ensure not only smooth gravity falling but also fast dynamic falling, for energy-saving, stable, fast and efficient operation.
Item | Unit | Specification |
Dimension | ||
Overall length | (mm) | 12805 |
Overall width | (mm) | 4200/2950 |
Overall height | (mm) | 3035 |
Main. Driven wheel center distance | (mm) | 4330 |
crawler width | (mm) | 700 |
Weight | ||
Dead weight in travel state | (kg) | 34960 |
Travel | ||
No load travel speed | (km/h) | 2.6 |
Full load travel speed | (km/h) | 1.5 |
Min. ground clearance | (mm) | 357 |
Max. gradeability | (%) | 45 |
Ground pressure | (MPa) | 0.06 |
Engine | ||
Noise | (A)) | 80 |
Engine model | - | QSB6.7 |
Engine rated output | (kW) | 142 |
Engine rated Speed | (r/min) | 1800 |
Engine emission standard | Off road EU Stage IIIA | |
Volume | ||
Hydraulic oil tank volume | (L) | 400 |
Fuel tank volume | (L) | 450 |
Lifting performance | ||
Max. total rated lifting load | (t) | 25 |
Min. rated working radius | (m) | 3 |
Base boom max. load moment | (kN·m ) | 970 |
Full extend boom max. load moment | (kN·m ) | 576 |
Lifting height-base boom | (m) | 9.9 |
Lifting height-full extend boom | (m) | 32.3 |
Lifting height-full extend boom + jib | (m) | 39.8 |
Base boom | (m) | 10.6 |
Full-extend boom | (m) | 33 |
Full-extend boom+Jib | (m) | 41.15 |
Jib angle | (°) | 0°、15°、30° |
Working speed | ||
Boom elevating time | (s) | 48 |
Boom telescoping time | (s) | 56 |
Max. slewing speed | (r/min) | 2.5 |
Main winch max. speed(single line) | (m/min ) | 140 |
Auxiliary winch max.speed(single line) | (m/min ) | 140 |
