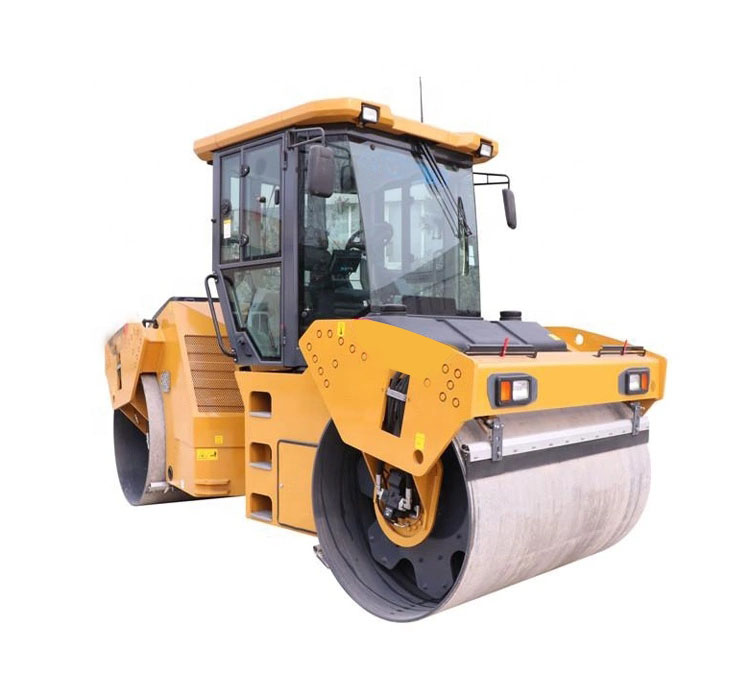

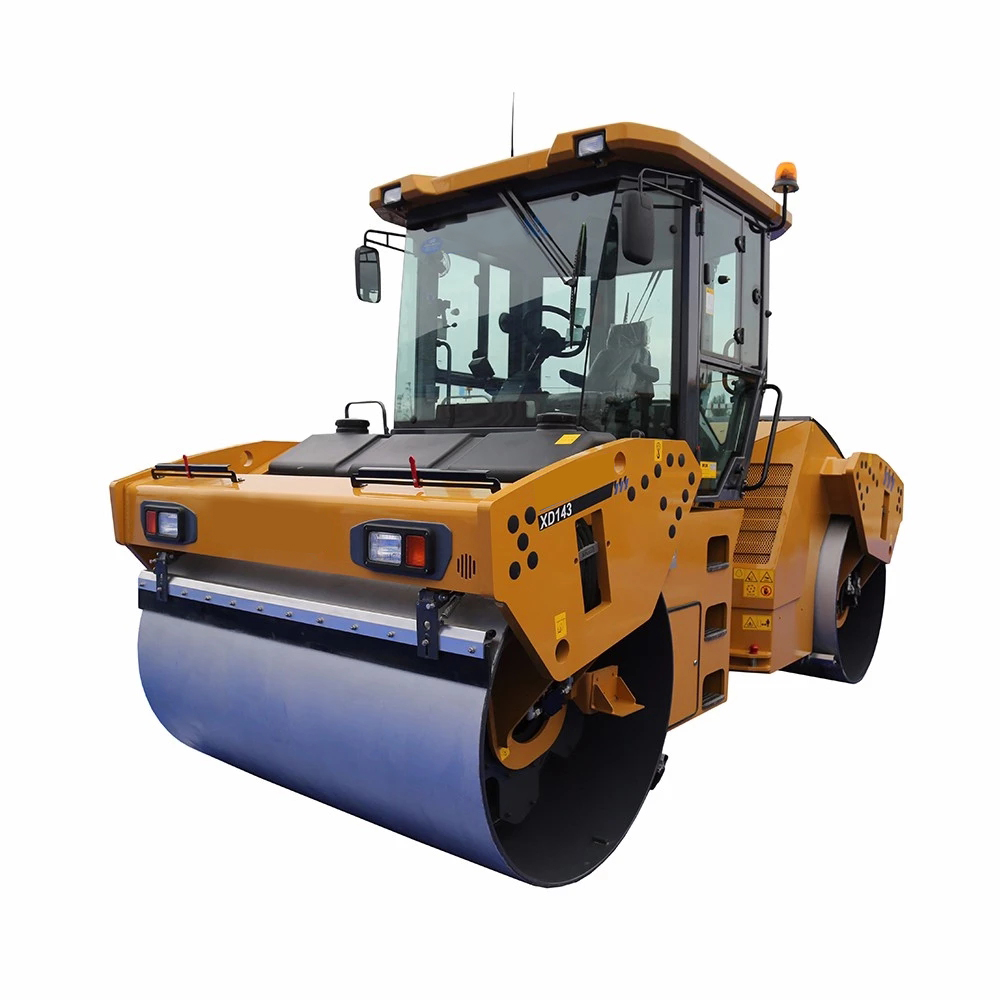

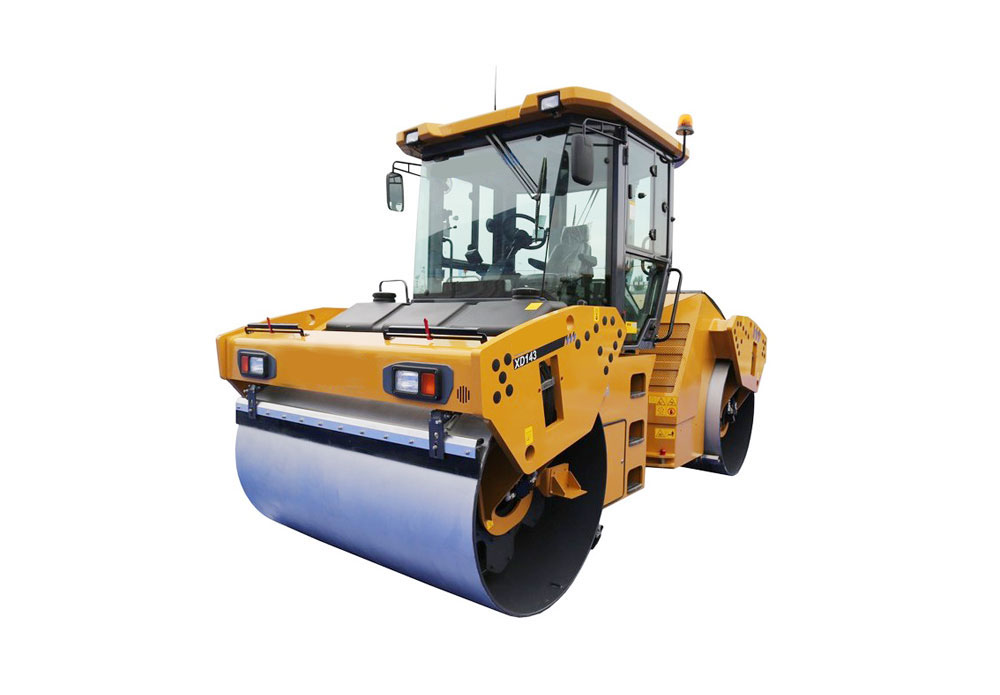

XCMG XD143 Hydraulic Double Drum Vibratory Roller


Similar Product





<<  BACK TO LIST

Main parameter:
Operating weight :14 tons ,
Vibration frequency : 45/48 Hz,
Drum width:2130 mm,

Detailed configuration
DEUTZ BF4M1013EC engine,119Kw,
Saul hydraulic system ,
Electronic control system ,
Driving cabin with air conditioner equipped,

Advantages
Adopt top brand engine , pump ,vibratory bearing .Great working performance .
Large colorful LCD screen equipped .
High vibrational frequency improve the compaction quality

XD143 vibratory roller is suitable for compaction of roads, parking lots, airports and other large projects. It can also be used for compacting roadbeds and sub-base materials, with a wide range of applications. The product uses the world's most advanced intelligent control system, and the control system is based on CAN-BUS bus communication technology.

Specification

Type

Unit

 XD143

Operating weight (including cab)

kg

14000

load on front drum

kg

7000

Load on rear wheels

kg

7000

Static linear load

N/cm

305

Speed

km/h

0~10

Gradeability in theory

%

35

Minimum turning radius

mm

4050/5950

Crab-walking distance

mm

160

Minimum ground clearance

mm

340

Wheel base

mm

3700

Steering angle

± °

35

Swing angle

±°

8

Vibration frequency

Hz

48-45

Nominal amplitude

mm

0.41/0.8

Centrifugal force

kN

85/140
