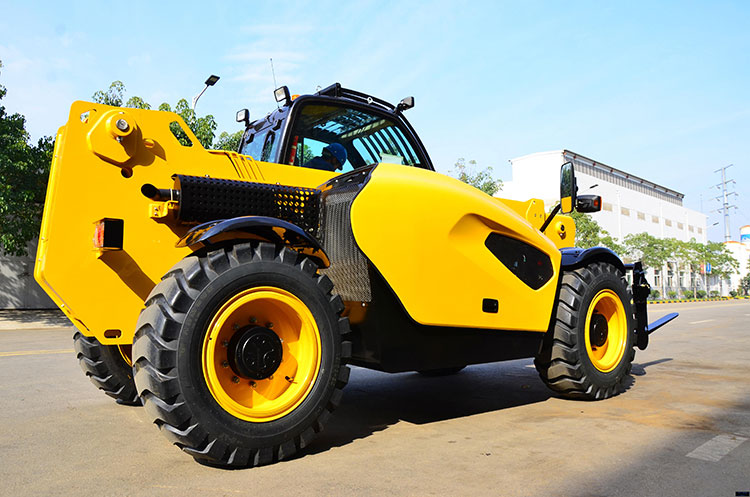

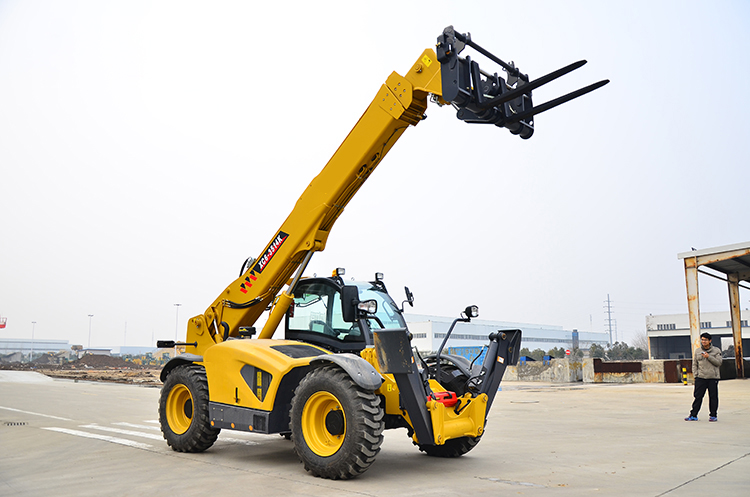

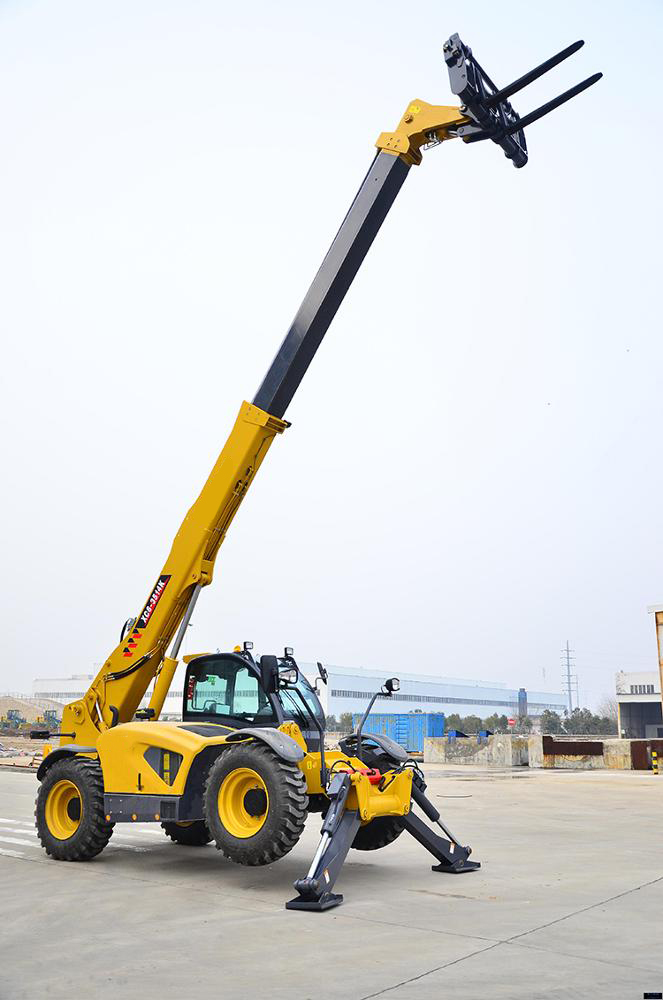

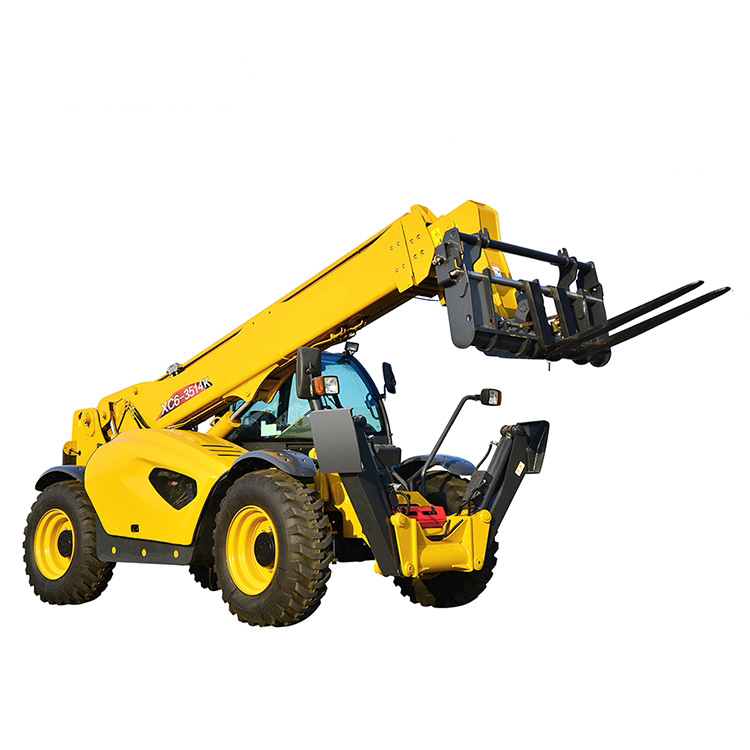

XCMG XC6-3514K Telescopic Handler


Similar Product


Select the products




<<  BACK TO LIST

MODEL


XC6-3514K

Gross weight

kg

10500

Engine power

kW

74.9

Rated load

kg

3500

Effective load at maximum

kg

635

Maximum lifting height

mm

13700

Maximum forward reach

mm

9600

Center distance of load

mm

600

Luffing angle

°

-4~73

Fork angle

°

90~18

Maximum traction force

kN

≥55

Gradeability

°

≥25

Maximum traveling speed

km/h

30

Turning radius

mm

≤4750

Braking distance

m

≤8

Overall length

mm

6380

Overall width

mm

2500

Overall height

mm

2740

Wheelbase

mm

2980

Wheel tread

mm

2060

Fork length

mm

1200

Bale clamp diameter

mm

800-1800
