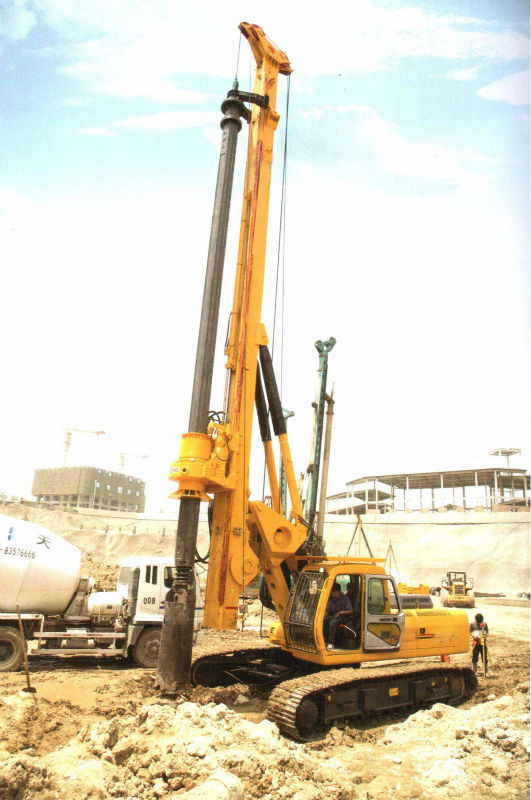

Home > Piling & Drilling machineryRotary drilling rigXCMG XR360 Rotary Drilling Rig
It introduces the back-inclination large triangle structure with stationary luffing support, which is suitable for working conditions of low-tonnage drilling rig, improving the rigidity of working mechanism and enhancing the stability of whole drilling rig while achieving easy transportation;
The imported Kawa-saki hydraulic parts can achieve reasonable powertrain matching and high construction efficiency;
The imported Cum-mins engine can minimize fuel consumption with the help of two optional accelerator control modes;
The working amplitude of auxiliary winch is increased, which can hoist light and small objects and save cost as well;
The main winch is designed with a high displacement motor, achieving more sensitive response and more reliable working and also getting rid of the difficulty in earth dumping for pile holes of small diameter.
Engine | Model | B5.9-C | |
Rated Power | kW | 112/1950 | |
Rotary Drive | Max. output torque | kN·m | 120 |
Rotary speed | r/min | 6~28 | |
Pull-Down Cylinder | Max.pull-down piston push | kN | 120 |
Max.pull-down piston pull | kN | 120 | |
Max.pull-down piston stroke | m | 3.5 | |
Main Winch | Max.Pulling force | kN | 100 |
Max.line speed | m/min | 70 | |
Auxiliary Winch | Max.Pulling force | kN | 45 |
Max.line speed | m/min | 70 | |
Undercarrige | Max. traveling speed | km/h | 3.2 |
Min. Clearance | mm | 450 | |
Track shoe width | mm | 700 | |
Overall Drilling Weight | t | 40 | |
Dimension | Working condition | mm | 7175X3400X16800 |
Transportation condition | mm | 12580X3400X3360 | |
