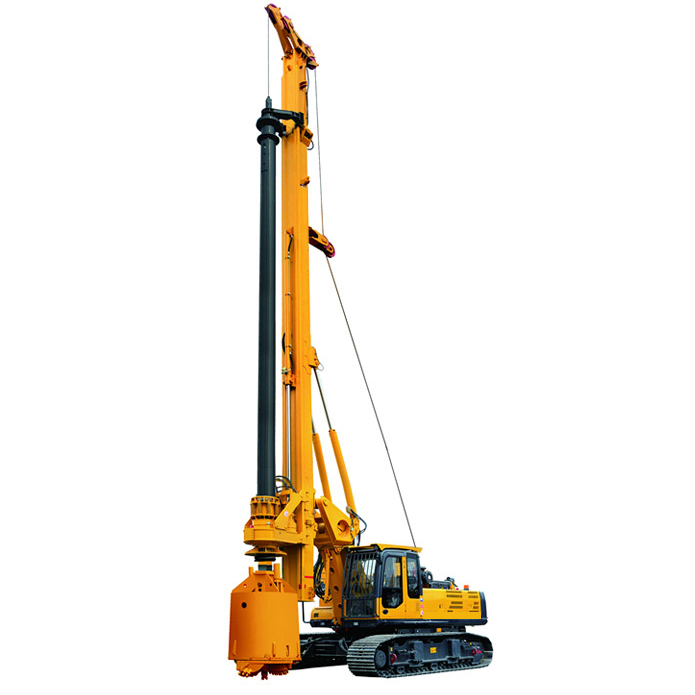

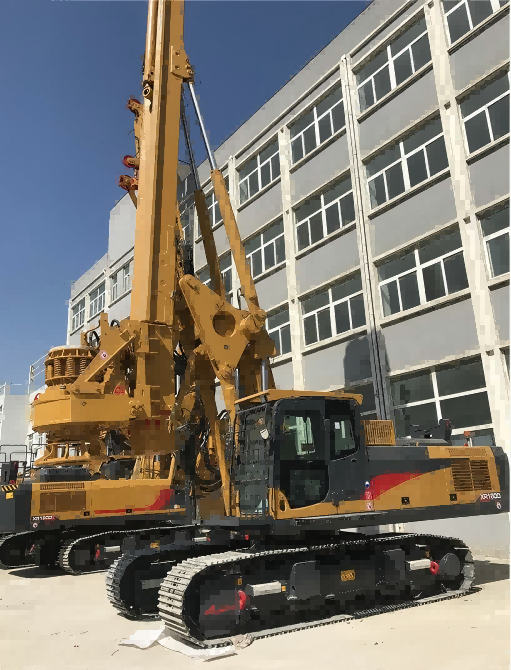

Home > Piling & Drilling machineryRotary drilling rigXCMG XR150DIII Rotary Drilling Rig
Engine | Engine Brand | CUMMINS | |
Engine Type | QSB7-C202 | ||
Rated Power | kW | 150 | |
Rotary Drive | Max output torque | kN . m | 150 |
Rotary speed | r/min | 7~33 | |
Max Drilling Diameter | mm | 1500 | |
Max Drilling Depth | m | 56 | |
Pull-Down Cylinder | Max pull-down piston push | kN | 120 |
Max pull-down piston pull | kN | 160 | |
Main Winch | Max Pulling force | kN | 160 |
Max line speed | m/min | 72 | |
Auxiliary Winch | Max Pulling force | kN | 50 |
Max line speed | m/min | 60 | |
Mast Rake | Side | o | ± 3 |
Forwards | o | ±5 | |
Backwards | o | ± 15 | |
Undercarrige | Max traveling speed | km/h | 2.5 |
Max grade ability | % | 40 | |
Min Clearance | mm | 365 | |
Track shoe width | mm | 700 | |
Distance between tracks | mm | 2960 ~ 4200 | |
Hydraulic System | Working pressure | Mpa | 35 |
Overall Drilling Weight | t | 49 | |
Dimension | Working condition | mm | 7550 x 4200 x 19040 |
Transportation condition | mm | 13150x2960x3140 | |
