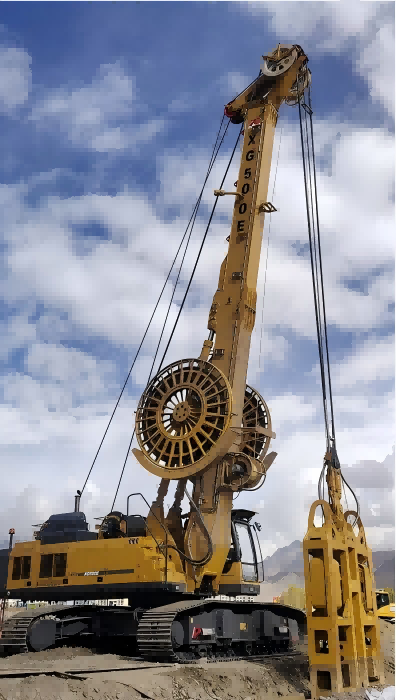

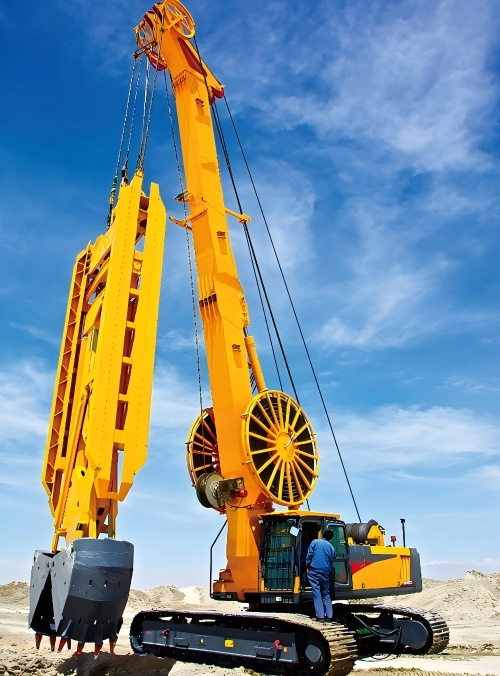

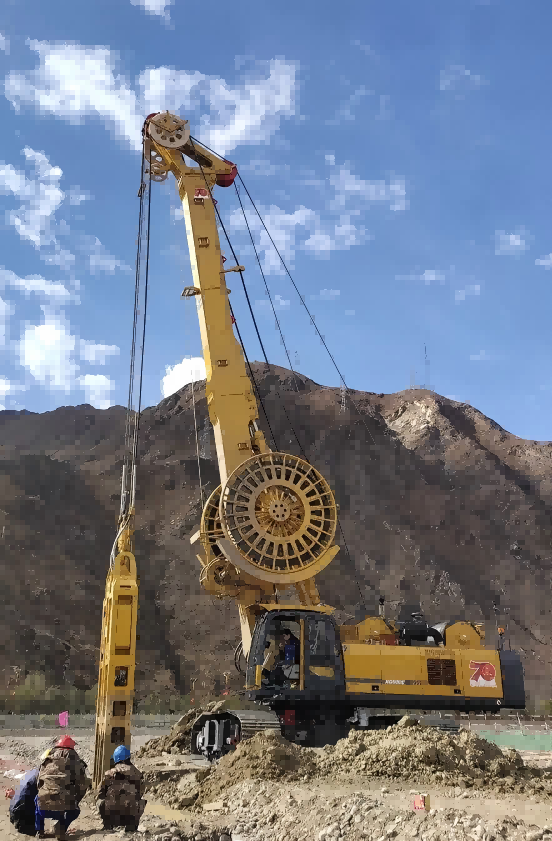

XCMG XG500E Diaphragm Wall Grab


Similar Product


Select the products




<<  BACK TO LIST

Item

Unit

Specification

Working Specification

Wall depth

m

75

Wall thickness

mm

300-1500

Max. hoisting power

KN

2x250

Max. winch speed (up/down)

m/min

45/75

Hydraulic system pressure

Mpa

32

Working radius

mm

4650-5350

Engine Specification

Engine manufacture

-

CUMMINS

Engine Model

-

 QSM11

Engine Rated power

kW/ r/min

298/2100

Chassis Specification

Max. traveling speed

km/h

1.5

Max. grade

%

35

Min. clearance

mm

450

Track shoe width

mm

800

Track pitch

mm

3500-4800

Dimension(LxWxH)

Working condition

mm

10400×4800×17300

Transporting condition

mm

13500×3500×3500

Overall Drilling weight

t

105
