Home > Hoisting machineryTruck craneXCMG XCT8L4 Truck Crane

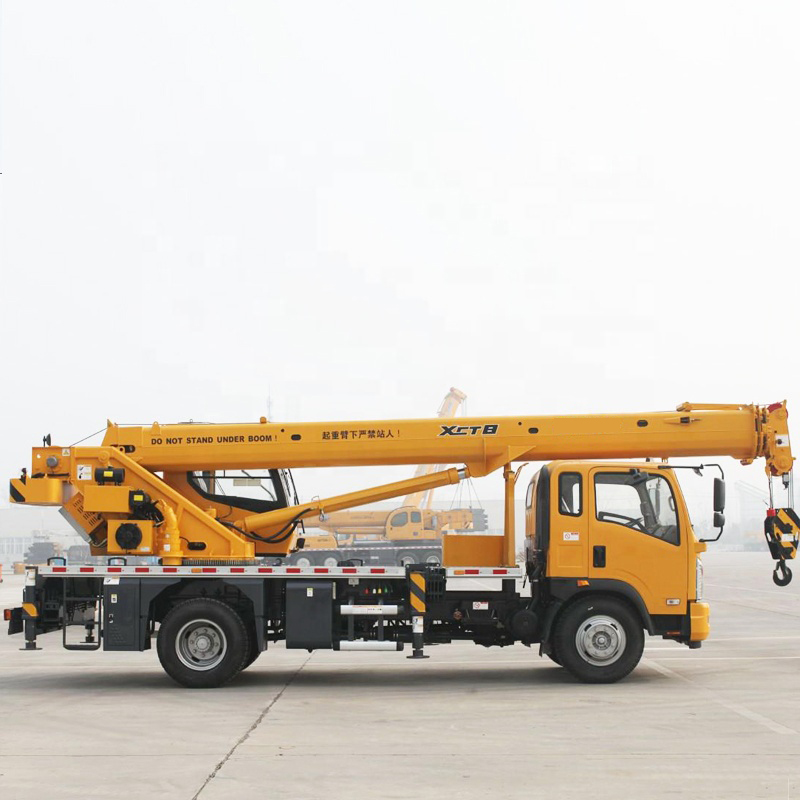

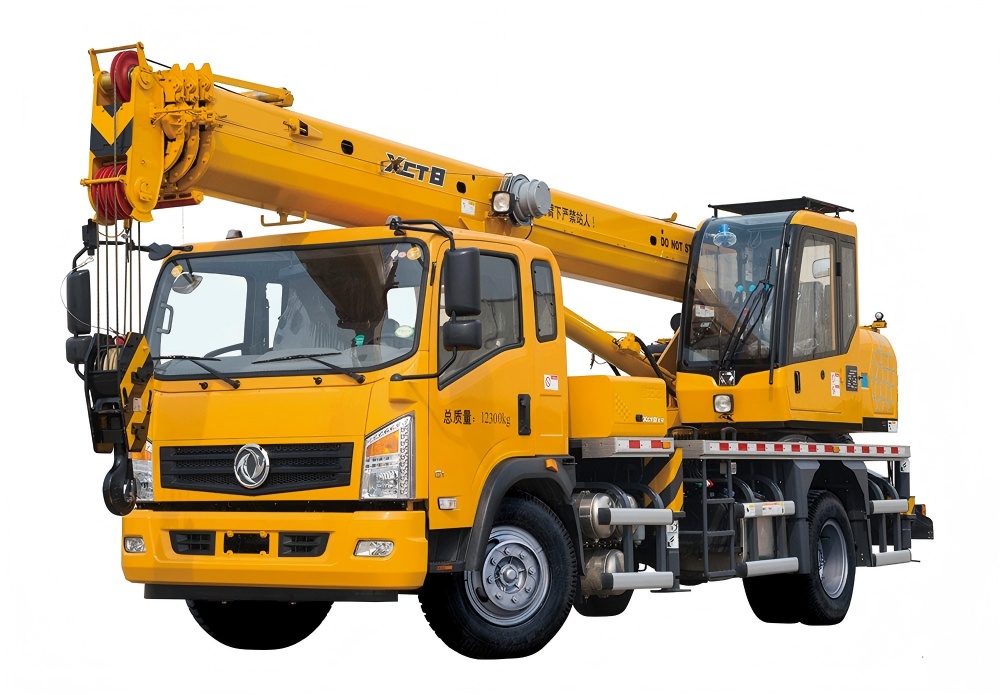

XCT8L4 Truck crane is widely used for the lifting operations in general engineering projects, such as construction site, urban renewal, communication and transportation, ports, bridge, oilfields and mine, and complex working environments.
Advantages and highlights:
Super lifting performance 4-section boom of 25.5 m with Octagon-type profile is the longest of the same class in the industry; the max. parts of line is 6 for the main hook block. The performance is 20% higher than that of the competitors, the performance of medium-long boom is higher.
New energy-saving hydraulic system The min. stable slewing speed is 0.3°/s. The min. stable lifting speed (drum) is 3.0m/min. Precise and safe lifting movements can be realized.
Optimized power for universal chassis Spiral spring clutch is upgraded by diaphragm spring clutch, torque transfer efficiency improves 10%; with large-ratio transmission adopted, max. grade ability is up to 35%; max. travel speed is 90km/h, ranking first in the industry.
Item | Unit | Specification |
Dimensions | ||
Overall length | mm | 9375 |
Overall width | mm | 2400 |
Overall height | mm | DONGFENG 3240 |
Wheel base | mm | 4400 |
Wheel track | mm | DONGFENG 1810/1800 |
Weight | ||
Total weight in travel | Kg | DONGFENG 12300 |
Axle load | Kg | DONGFENG 4150/8150 |
Power | ||
Engine model | DONGFENG YC4E140-42 | |
Engine rated power | kw/(r/min) | DONGFENG 103/2600 |
Engine rated torque | N.m/(r/min) | DONGFENG 430/(1300～1600) |
Travel | ||
Travelling | ||
Max. travel speed | km/h | 90 |
Min. stable travel speed | km/h | 2～3 |
Turning | ||
Min. turning diameter | m | 16 |
Min. turning diameter(boom head) | m | 18.3 |
Max. grade ability | ％ | 35 |
Min. ground clearance | mm | 260 |
Approach angle | ° | 18 |
Departure angle | ° | 13 |
Fuel consumption for 100km | L | 18 |
Lifting performance | ||
Max. total rated lifting capacity | t | 8 |
Min. rated working radius | m | 3 |
Base boom Max. load moment | kN·m | 302 |
Turning radius at turntable tail | mm | 2327 |
Outrigger | ||
Longitudinal distance span | m | 4.3 |
Lateral distance span | m | 4.7 |
Max. lifting height | ||
Base boom | m | 8.5 |
Fully extended boom | m | 25.6 |
Fully extended boom＋jib | m | - |
Fully extended boom＋jib+ extension | - | |
Boom length | ||
Base boom | m | 8 |
Fully extended boom | m | 25.5 |
Fully extended boom＋jib | m | - |
Fully extended boom＋jib+ extension | m | - |
Working speed | ||
Max. swing speed | r/min | 3 |
Lifting speed | ||
Main winch | s | 130 |
Vice winch | s | - |
Boom full extension time | ||
extension | s | 40 |
contraction | s | - |
Boom elevating time | ||
Lifting | s | 28 |
Dropping | s | - |
Horizontal | ||
Stretching | s | ≤16 |
Retracting | s | ≤16 |
Vertical | ||
Stretching | s | ≤17 |
Retracting | s | ≤17 |
