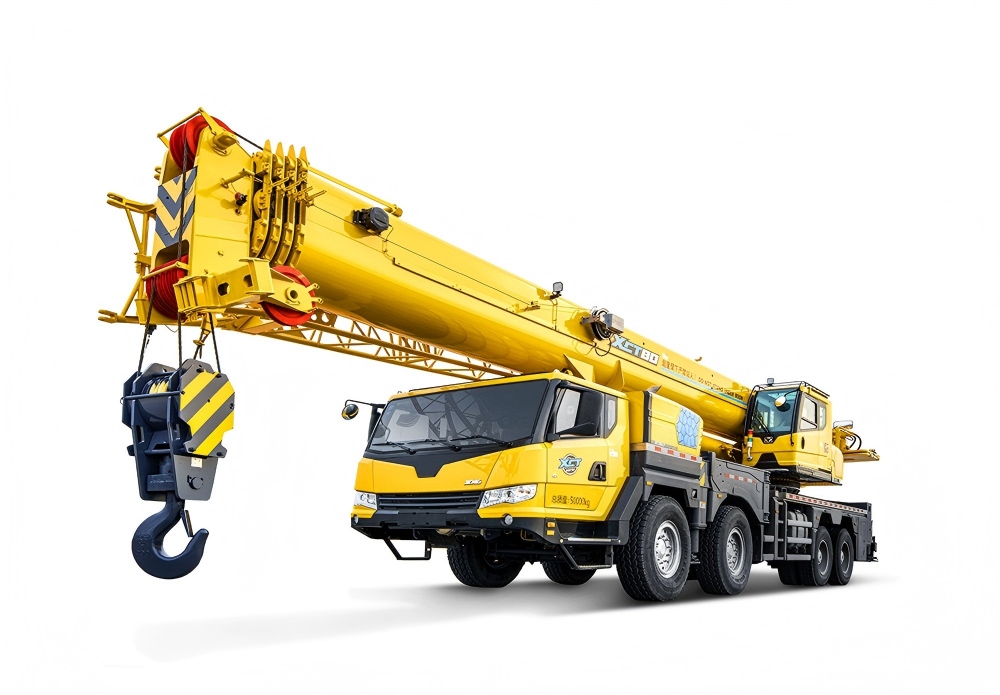

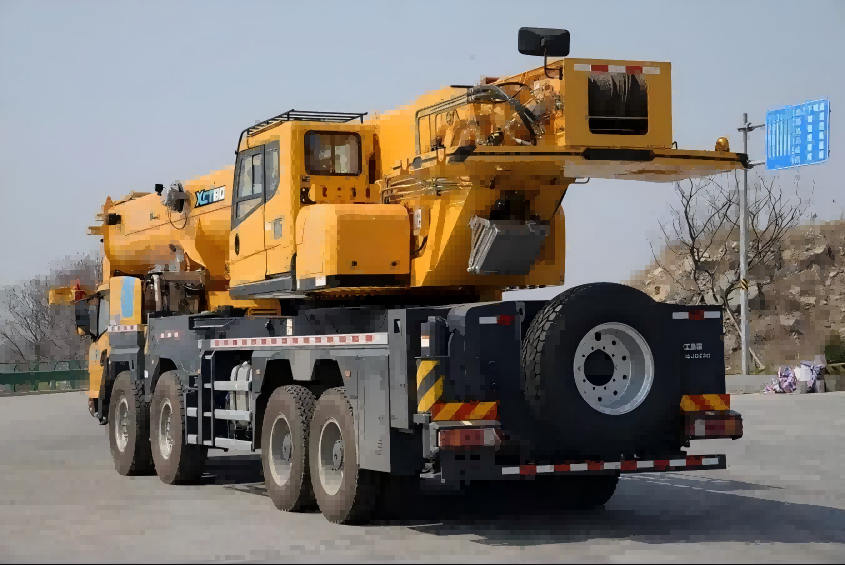

XCT80L5 is the only crane in the industry that adopts "K" shaped legs (commonly known as "swing leg") in this ton class, and it is a two-stage telescopic control. The operation mode is to first swing the leg, then extend the second section, after full extension, the first visual feeling is solid.Indeed, the k-leg is capable of lifting a great deal more weight forward and laterally than the h-leg with the fifth leg.
5 sections of single board boom head design, double cylinder rope row expansion mode, main boom full extension length of 50.5 meters, standard 17.5 meters fixed auxiliary arm, more than 30 meters bridge construction, plant equipment installation and other high-frequency conditions leading more than 10%, the industry operating efficiency is the best.The total weight is 16 tons.
Item | Unit | Specification |
Dimensions | ||
Overall length | mm | 15000 |
Overall width | mm | 2750 |
Overall height | mm | 3990 |
Wheel base | mm | 2000+4000+1350 |
Wheel track | mm | 2353/2353/2063/2063 |
Weight | ||
Total weight in travel | Kg | 50000 |
Axle load | Kg | 12000/12000/13000/13000 |
Power | ||
Engine model | MC11.40-50 / MC11.40-60 | |
Engine rated power | kw/(r/min) | 297/1900 297/1900 |
Engine rated torque | N.m/(r/min) | 1900/1000-1400 1907/1000-1400 |
Travel | ||
Travelling | ||
Max. travel speed | km/h | ≥90 |
Min. stable travel speed | km/h | 2.5～3 |
Turning | ||
Min. turning diameter | m | ≤24 |
Min. turning diameter(boom head) | m | ≤31 |
Max. grade ability | ％ | 47 |
Min. ground clearance | mm | 303 |
Approach angle | ° | 20 |
Departure angle | ° | 14 |
Braking distance | m | ≤10 |
Fuel consumption for 100km | L | 44 |
Lifting performance | ||
Max. total rated lifting capacity | t | 80 |
Min. rated working radius | m | 3 |
Base boom Max. load moment | kN·m | 3352 |
Turning radius at turntable tail | mm | 4260（Counter weight）4290（Winch） |
Outrigger | ||
Longitudinal distance span | m | 7.8(7.16) |
Lateral distance span | m | 7.9(5.9) |
Max. lifting height | ||
Base boom | m | 13.3 |
Fully extended boom | m | 50.5 |
Fully extended boom＋jib | m | 75.5 |
Fully extended boom＋jib+ extension | - | |
Boom length | ||
Base boom | m | 12.95 |
Fully extended boom | m | 50.5 |
Fully extended boom＋jib | m | 77 |
Fully extended boom＋jib+ extension | m | - |
Working speed | ||
Max. swing speed | r/min | ≥2.0 |
Lifting speed | ||
Main winch | s | ≥145（Single rope, fourth layer, no load） |
Vice winch | s | ≥90（Single rope, fourth layer, no load） |
Boom full extension time | ||
extension | s | ≤125 |
contraction | s | - |
Boom elevating time | ||
Lifting | s | ≤55 |
Dropping | s | - |
Horizontal | ||
Stretching | s | ≤40 |
Retracting | s | ≤30 |
Vertical | ||
Stretching | s | ≤45 |
Retracting | s | ≤25 |
