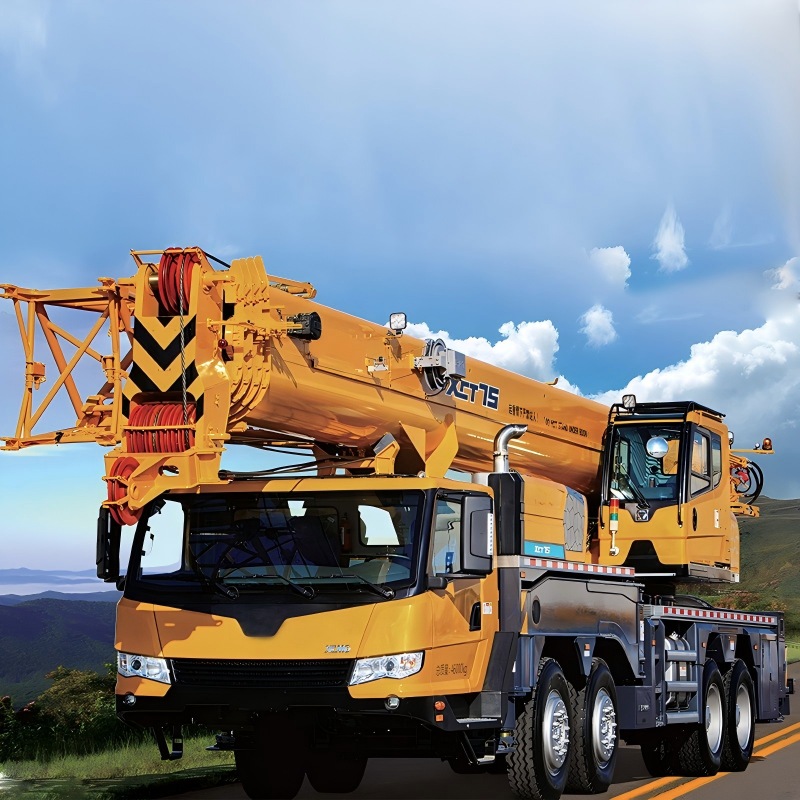

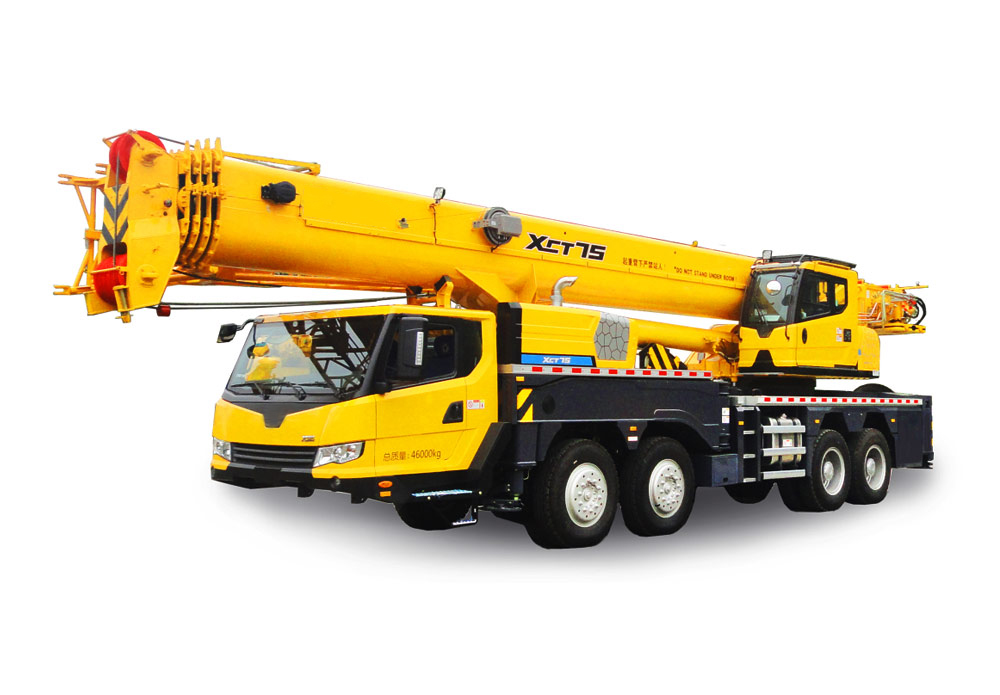

Home > Hoisting machineryTruck craneXCMG XCT75 Truck Crane
XCT75 truck crane is designed mainly for domestic market including international market’s demands. Adopting exclusive self- made chassis, it is applicable for wider roads in which the lifting and hoisting working of normal constructions can satisfy the common lifting jobsites with higher hoisting height, stronger lifting capacity and higher working efficiency. It is widely used in many complicated jobsites such as constructions, urban renovation, transportation, port, bridge, oil and mining etc.
With four-axle crane chassis and K-shaped outrigger, XCT75 has five-section boom of U-shaped added with two lattice jibs and concealed double-independent winches.
Equipped with low speed and large torque power system, it adopts new energy-saving hydraulic system mounted with a combined counterweight (or build-in counterweight available). With XCMG G-generation brand new design and man-made interactive system reaching the level of car, XCT75 takes the lead of the highest performance in the industry which contributes to more intelligent, energy-saving and humanized.
Item | Unit | Specification |
Dimensions | ||
Overall length | mm | 14700 |
Overall width | mm | 2750 |
Overall height | mm | 3910 |
Wheel base | mm | 1470+3950+1350 |
Wheel track | mm | 2316/2063 |
Weight | ||
Total weight in travel | Kg | 46000 |
Power | ||
Engine model | MC11.36-40/SC10E360Q4 | |
Engine rated power | kw/(r/min) | 268/1900 265/1900 |
Engine rated torque | N.m/(r/min) | 1800/1000-14001700/1300 |
Travel | ||
Travelling | ||
Max. travel speed | km/h | 90 |
Min. stable travel speed | km/h | 2.5～3 |
Turning | ||
Min. turning diameter | m | 24 |
Min. turning diameter(boom head) | m | 28.8 |
Max. grade ability | ％ | 45 |
Min. ground clearance | mm | 305 |
Approach angle | ° | 16 |
Departure angle | ° | 13.5 |
Braking distance | m | ≤10 |
Fuel consumption for 100km | L | 40 |
Lifting performance | ||
Max. total rated lifting capacity | t | 75 |
Min. rated working radius | m | 3 |
Base boom Max. load moment | kN·m | 3175 |
Turning radius at turntable tail | mm | 4545 |
Outrigger | ||
Longitudinal distance span | m | 8.45 |
Lateral distance span | m | 7.9(5.6) |
Max. lifting height | ||
Base boom | m | 12.7 |
Fully extended boom | m | 48 |
Fully extended boom＋jib | m | 65 |
Fully extended boom＋jib+ extension | 74 | |
Boom length | ||
Base boom | m | 12.4 |
Fully extended boom | m | 48 |
Fully extended boom＋jib | m | 65.5 |
Fully extended boom＋jib+ extension | m | 74.5 |
Working speed | ||
Max. swing speed | r/min | 2 |
Lifting speed | ||
Main winch | s | 145 |
Vice winch | s | 90 |
Boom full extension time | ||
extension | s | 110 |
contraction | s | - |
Boom elevating time | ||
Lifting | s | 55 |
Dropping | s | - |
Horizontal | ||
Stretching | s | 50 |
Retracting | s | 40 |
Vertical | ||
Stretching | s | 50 |
Retracting | s | 45 |
