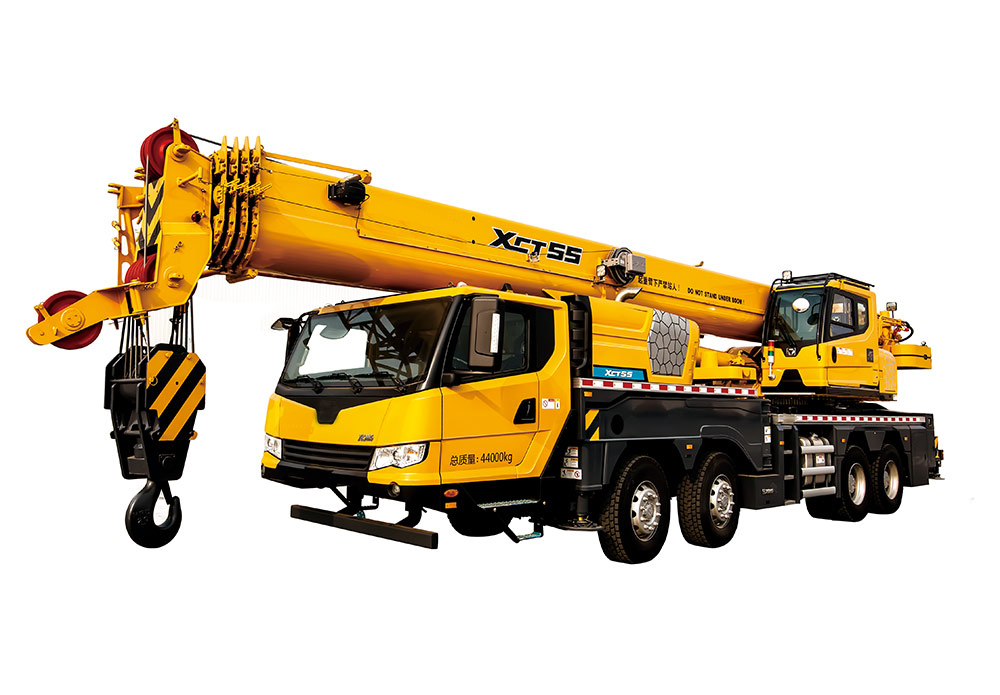

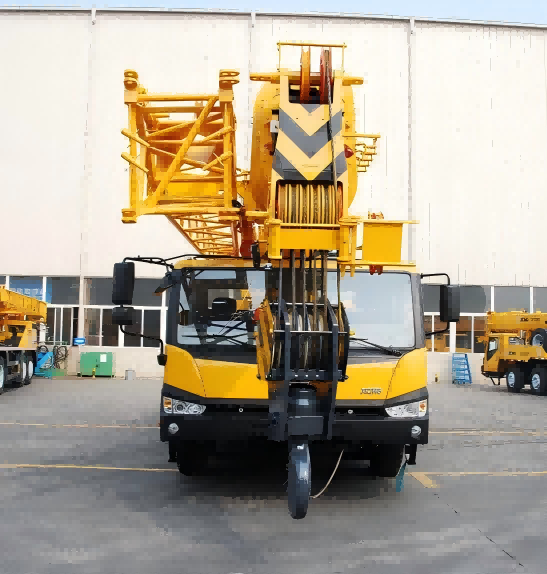

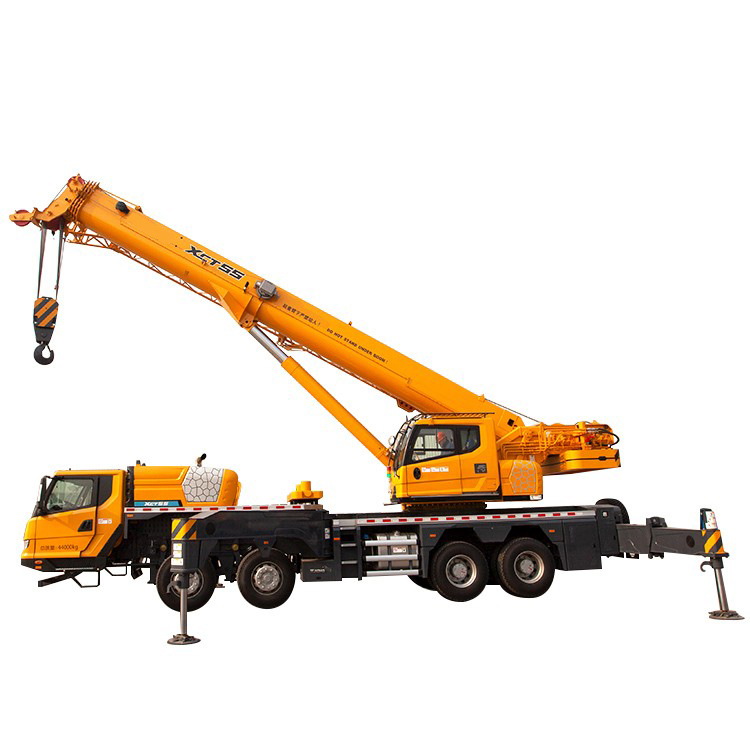

Home > Hoisting machineryXCMG XCT55L5 Truck Crane
XCT55L5 is experts of efficiency,create wealth pioneer.New energy-saving hydraulic system, operating fuel consumption lower, fretting better. Operating conditions are better than the average 15% of competitors, fretting and ride to improve 20%, to meet the needs of users precise lifting.
Item | Unit | Specification |
Dimensions | ||
Overall length | mm | 13980 |
Overall width | mm | 2550 |
Overall height | mm | 3610 |
Wheel base | mm | 1470+3700+1350 |
Wheel track | mm | 2124/2124/1834/1834 |
Weight | ||
Total weight in travel | Kg | 44000 |
Axle load | Kg | 9000/9000/26000 |
Power | ||
Engine model | MC11.36-40/SC10E340Q4 | |
Engine rated power | kw/(r/min) | 268/1900 251/1900 |
Engine rated torque | N.m/(r/min) | 1800/(1000~1400) 1550/1300 |
Travel | ||
Travelling | ||
Max. travel speed | km/h | 90 |
Min. stable travel speed | km/h | 2.5～3 |
Turning | ||
Min. turning diameter | m | 24 |
Min. turning diameter(boom head) | m | 26.9 |
Max. grade ability | ％ | 45 |
Min. ground clearance | mm | 303.5 |
Approach angle | ° | 16/10 |
Departure angle | ° | 13 |
Braking distance | m | ≤10（The speed is 30km/h) |
Fuel consumption for 100km | L | 35 |
Lifting performance | ||
Max. total rated lifting capacity | t | 55 |
Min. rated working radius | m | 3 |
Base boom Max. load moment | kN·m | 2033 |
Turning radius at turntable tail | mm | 3845 |
Outrigger | ||
Longitudinal distance span | m | 7.3 |
Lateral distance span | m | 8.035 |
Max. lifting height | ||
Base boom | m | 11.9 |
Fully extended boom | m | 44.5 |
Fully extended boom＋jib | m | 60.3 |
Fully extended boom＋jib+ extension | - | |
Boom length | ||
Base boom | m | 11.6 |
Fully extended boom | m | 44.5 |
Fully extended boom＋jib | m | 60.5 |
Fully extended boom＋jib+ extension | m | - |
Working speed | ||
Max. swing speed | r/min | 2 |
Lifting speed | ||
Main winch | s | 130 |
Vice winch | s | 130 |
Boom full extension time | ||
extension | s | 80 |
contraction | s | - |
Boom elevating time | ||
Lifting | s | 40 |
Dropping | s | - |
Horizontal | ||
Stretching | s | 20 |
Retracting | s | 15 |
Vertical | ||
Stretching | s | 35 |
Retracting | s | 25 |
