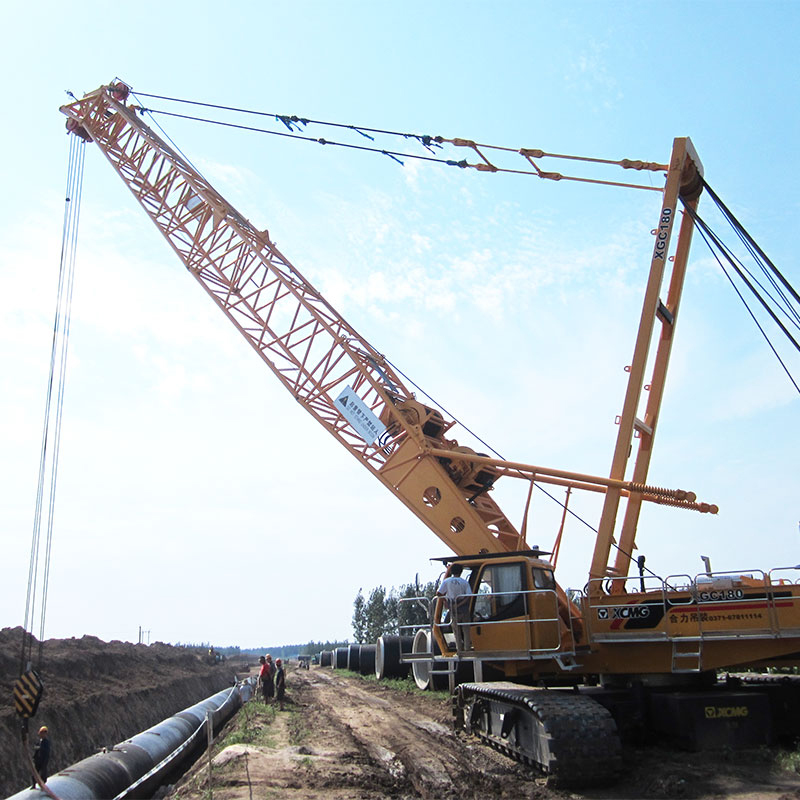

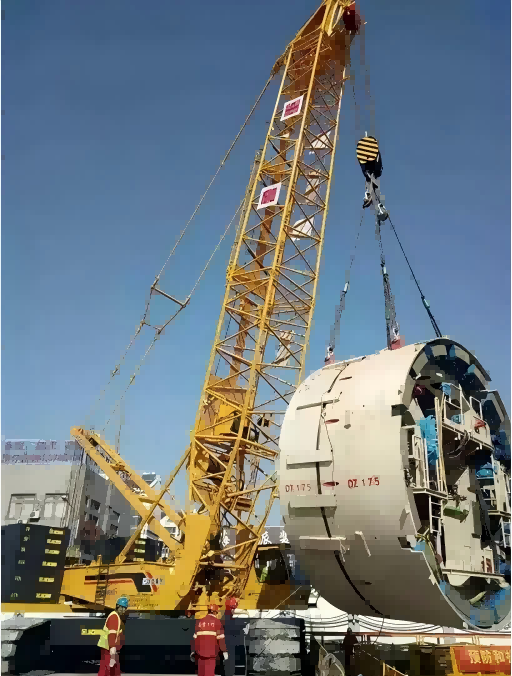

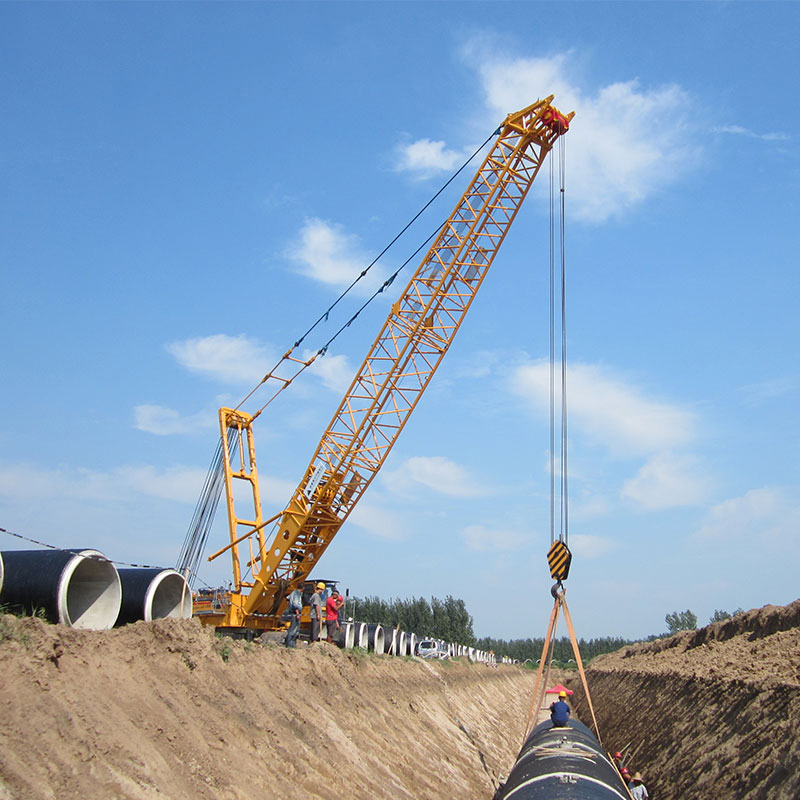

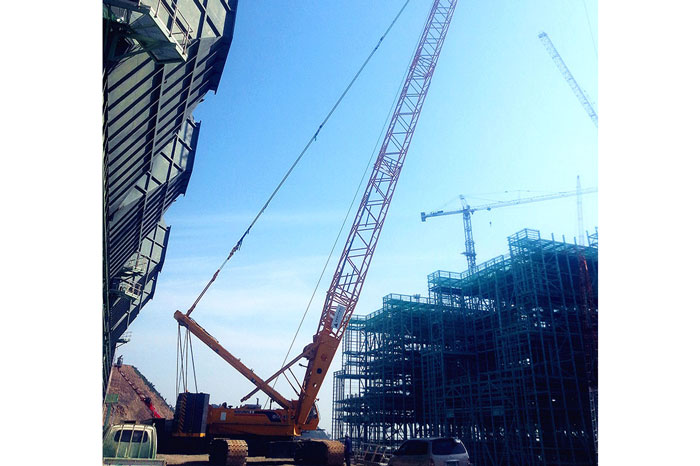

Home > Hoisting machineryCrawler craneCrawler crane XGC180
| Location: | Xuzhou, China |
Similar Product
Select the products
1. High lifting performance
Boom max. lifting capacity/radius 180t/5m, boom max. load moment 1043.8tm. Boom max. length+luffing jib max. length 58m+41m, luffing jib max. lifting capacity 50t.Fixed jib max. lifting capacity 33.5t.
2. Optimized design of transport and assembly/ disassembly
Fully equipped self-assembly/disassembly system (Optional) can easily achieve: rear counterweight self-assembly/disassembly, track frame self-assembly/disassembly, and boom base self-assembly/disassembly.
Largest single unit transport weight is controlled within 30t, transport width not more than 3m, so as to meet the transport requirement of global accessibility.
Fixed jib can be three-piece integrated transport, and transport design of inserted boom sections, maximize the use of transport space, and save transport costs.
3. More optimized structural design
Superstructure is a large box-type structural design, with heavy load bearing capacity, light weight, and good rigidity.
Auxiliary hoisting winch is placed in boom base, with relaxed arrangement for turntable, easy maintenance.
Item | Unit | Specification |
Lifting performance | ||
Max. total rated lifting capacity | t | 180 |
Fixed jib Max. lifting capacity | t | 33.5 |
Luffing jib Max. lifting capacity | t | 50 |
Max. load moment | t.m | 1043.8 |
Tower jib Max. lifting capacity | t | 50 |
Single block Max. lifting capacity | t | - |
Special jib Max. lifting capacity | t | - |
Dimensions | ||
Main boom length | m | 19～82 |
Main boom luffing angle | ° | 30～83 |
Fixed jib length | m | 13～31 |
Tower jib length | m | 20～59 |
Max. dimension of single unit(basic machine)in travel configuration(Lx W x H) | m | 9.58×3.0×3.3 |
Fixed jib installation angle | ° | 15、30 |
Special jib length | m | - |
Working speed | ||
Winch Max. single line speed | m/min | 120 |
Boom luffing gear Max. single line speed | m/min | 2×34 |
Vice jib luffing gear Max. single line speed | m/min | 41.6 |
Max. slewing speed | r/min | 2 |
Max. travel speed | km/h | 1.3 |
Grade ability | % | 30 |
Mean ground pressure | MPa | 0.105 |
Tower jib luffing gear Max. single line speed | m/min | 41.6 |
Lifting device luffing gear Max. single line speed | m/min | - |
Power | ||
Engine model | QSL9 | |
Engine rated power | kW | 243 |
Discharge | Ⅲ | |
Weight | ||
Total weight | t | |
Max. single unit weight for transportation | t | 30 |
