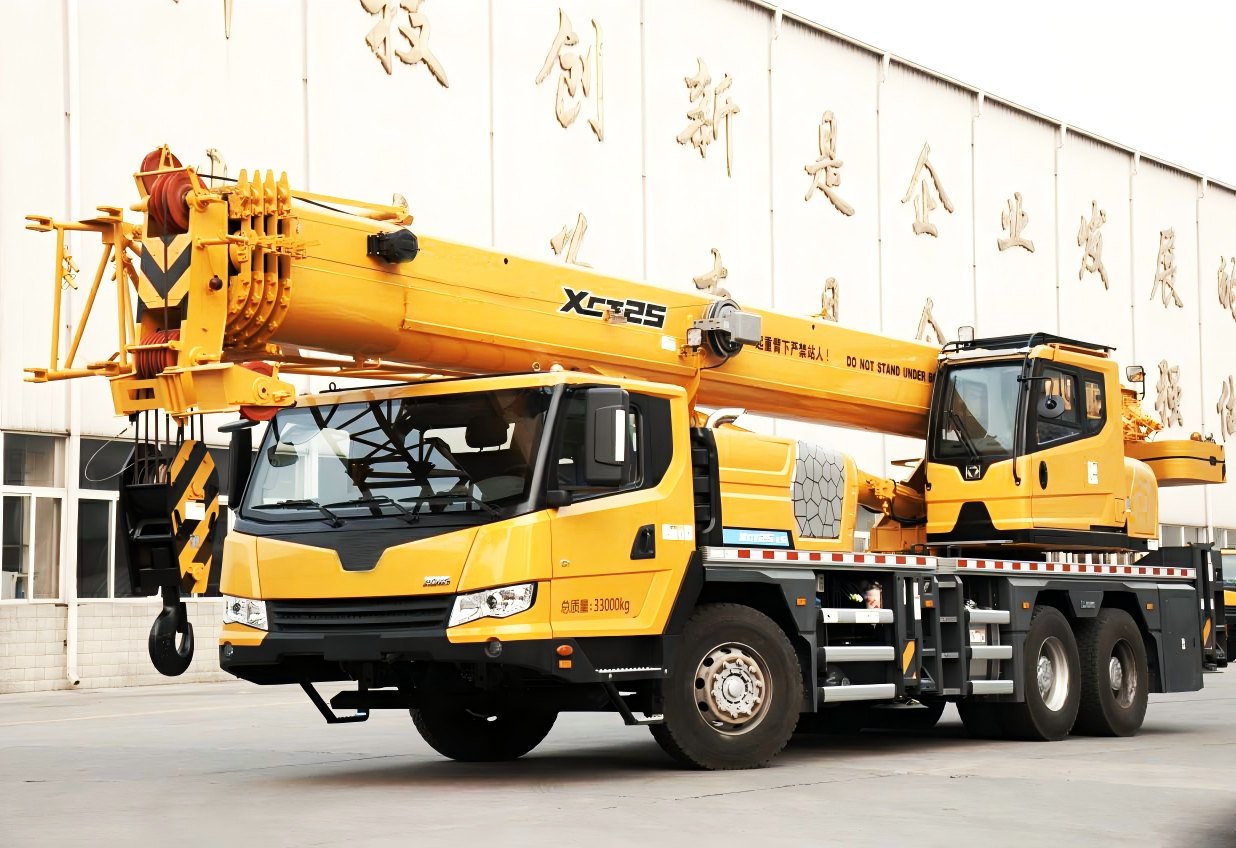

XCT25L5 has ultra-high performance, strong who and commander.Five "U-shaped" main arm, fully extended arm length 42m,20% of the leading performance of the lifting performance; low-speed large torque power system, the largest climbing ability of 45%, the strongest through the sex industry; 100 km comprehensive fuel consumption 30L, the industry's lowest.
Item | Unit | Specification |
Dimensions | ||
Overall length | mm | 13000 |
Overall width | mm | 2550 |
Overall height | mm | 3500 |
Wheel base | mm | 4600+1350 |
Wheel track | mm | 2074/1834/1834 |
Weight | ||
Total weight in travel | kg | 33400 |
Axle load | kg | 7400/13000/13000 |
Power | ||
Engine model | - | SC9DF320Q5/ MC07.31-50 |
Engine rated power | kw/(r/min | 235/1900 /228/2300 |
Engine rated torque | N.m/(r/min | 1350/(1100~1400) /1230/(1200~1800) |
Travel | ||
Travelling | ||
Max. travel speed | km/h | ≥90 |
Min. stable travel speed | km/h | 2.5～3 |
Turning | ||
Min. turning diameter | m | ≤21 |
Min. turning diameter(boom head) | m | ≤27 |
Max. grade ability | ％ | ≥45 |
Min. ground clearance | mm | 260 |
Approach angle | ° | 12 |
Departure angle | ° | 14 |
Braking distance | m | ≤10 |
Fuel consumption for 100km | L | 30 |
Lifting performance | ||
Max. total rated lifting capacity | t | 25 |
Min. rated working radius | m | 3 |
Base boom Max. load moment | kN·m | 1148 |
Turning radius at turntable tail | mm | 3650 |
Outrigger | ||
Longitudinal distance span | m | 5.6 |
Lateral distance span | m | 6.4 |
Max. lifting height | ||
Base boom | m | 11.2 |
Fully extended boom | m | 42.8 |
Fully extended boom＋jib | m | 51.1 |
Fully extended boom＋jib+ extension | - | - |
Boom length | ||
Base boom | m | 10.8 |
Fully-extended boom | m | 43 |
Fully-extended boom＋jib | - | 52 |
Fully extended boom＋jib+ extension | m | - |
Working speed | ||
Max. swing speed | r/min | ≥2.5 |
Lifting speed | ||
Main winch | - | ≥135 |
Vice winch | - | ≥135 |
Boom full extension time | ||
extension | s | ≤100 |
contraction | - | - |
Boom elevating time | ||
Lifting | s | ≤35 |
Dropping | s | - |
Horizontal | ||
Stretching | s | ≤25 |
Retracting | s | ≤20 |
Vertical | ||
Stretching | s | ≤25 |
Retracting | s | ≤20 |
