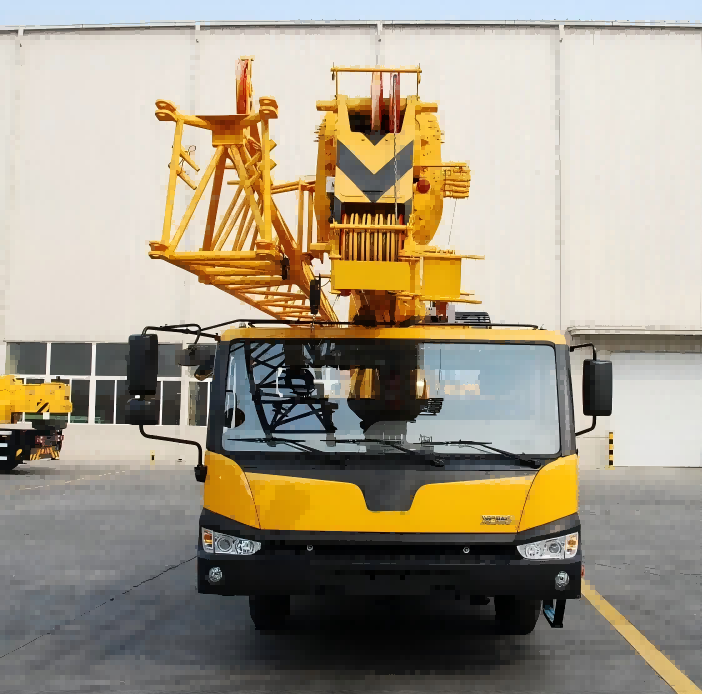

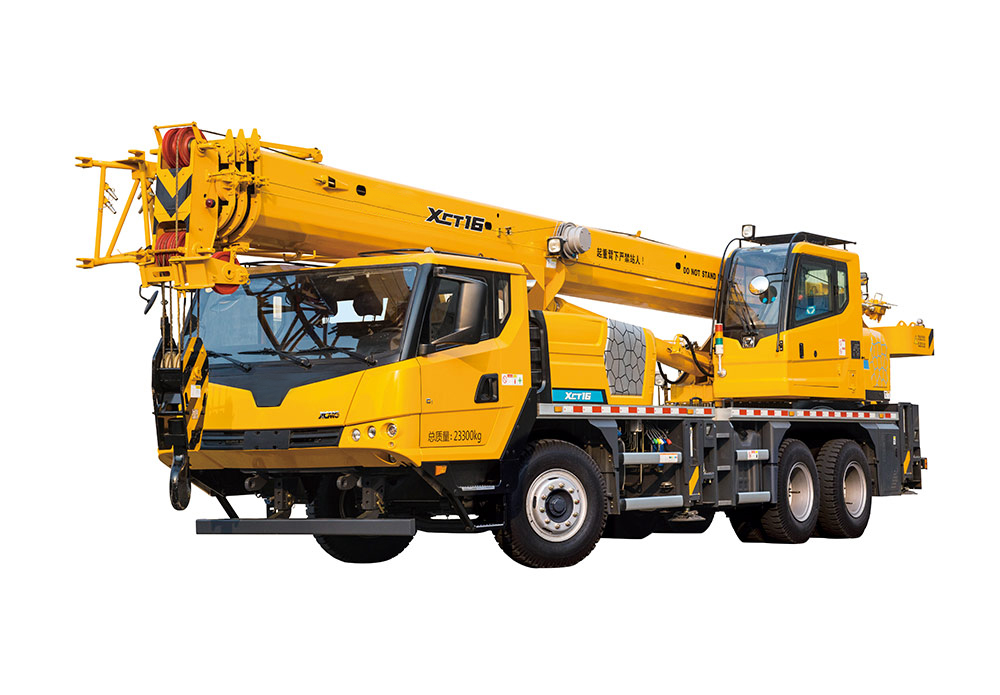

XCT16 has four 12-section cross-section of the new main boom, the main arm length of 32m, jib length of 8.15m, are leading the industry's highest level; lifting machine industry, the highest standard with the fifth leg, to achieve 360 ° operation.
Item | Unit | Specification |
Dimensions | ||
Overall length | mm | 11960 |
Overall width | mm | 2500 |
Overall height | mm | 3330 |
Wheel base | mm | 4425+1350 |
Wheel track | mm | Hande 2027/1834 |
Weight | ||
Total weight in travel | Kg | 23300 |
Axle load | Kg | 6500/16800 |
Power | ||
Engine model | SC7H260Q4/SC7H245Q4/WP6.245.E40 | |
Engine rated power | kw/(r/min) | 192KW/2300r/min180KW/2300r/min180KW/2300r/min |
Engine rated torque | N.m/(r/min) | 1000N.m/1200~1600r/min960N.m/1200~1600r/min900N.m/1100~1700r/min |
Travel | ||
Travelling | ||
Max. travel speed | km/h | 85 |
Min. stable travel speed | km/h | 2~5 |
Turning | ||
Min. turning diameter | m | 20 |
Min. turning diameter(boom head) | m | 23.6 |
Max. grade ability | ％ | 48 |
Min. ground clearance | mm | 261 |
Approach angle | ° | 19/12(With front protection) |
Departure angle | ° | 14 |
Braking distance | m | ≤10（The speed is 30km/h) |
Fuel consumption for 100km | L | 28 |
Lifting performance | ||
Max. total rated lifting capacity | t | 16 |
Min. rated working radius | m | 3 |
Base boom Max. load moment | kN·m | 730 |
Turning radius at turntable tail | mm | 3180 |
Outrigger | ||
Longitudinal distance span | m | 5.1 |
Lateral distance span | m | 5.8 |
Max. lifting height | ||
Base boom | m | 10.5 |
Fully extended boom | m | 32.5 |
Fully extended boom＋jib | m | 40.6 |
Fully extended boom＋jib+ extension | - | |
Boom length | ||
Base boom | m | 10 |
Fully extended boom | m | 32 |
Fully extended boom＋jib | m | 40.15 |
Fully extended boom＋jib+ extension | m | - |
Working speed | ||
Max. swing speed | r/min | 3 |
Lifting speed | ||
Main winch | s | 130 |
Vice winch | s | 130 |
Boom full extension time | ||
extension | s | 50 |
contraction | s | |
Boom elevating time | ||
Lifting | s | 35 |
Dropping | s | - |
Horizontal | ||
Stretching | s | 22 |
Retracting | s | 20 |
Vertical | ||
Stretching | s | 25 |
Retracting | s | 24 |
