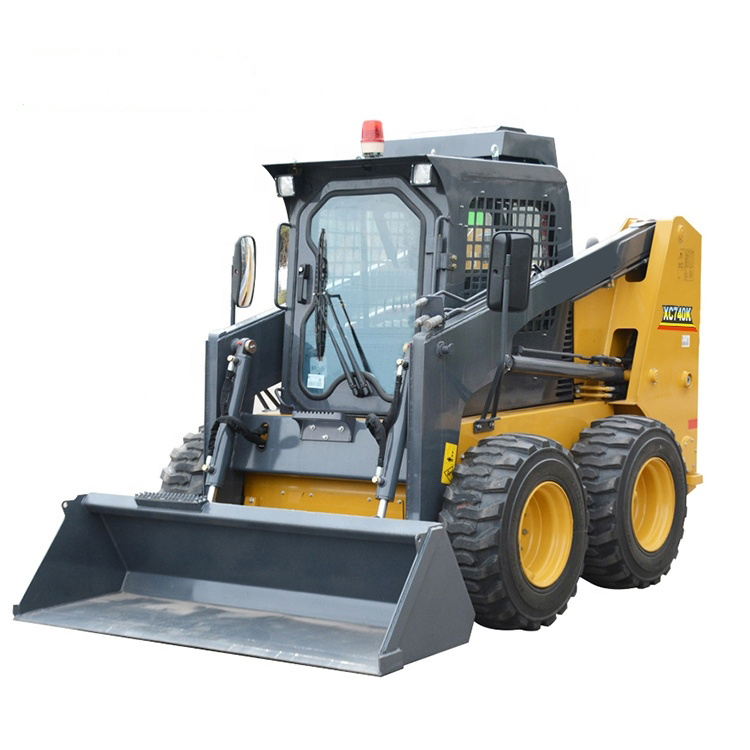

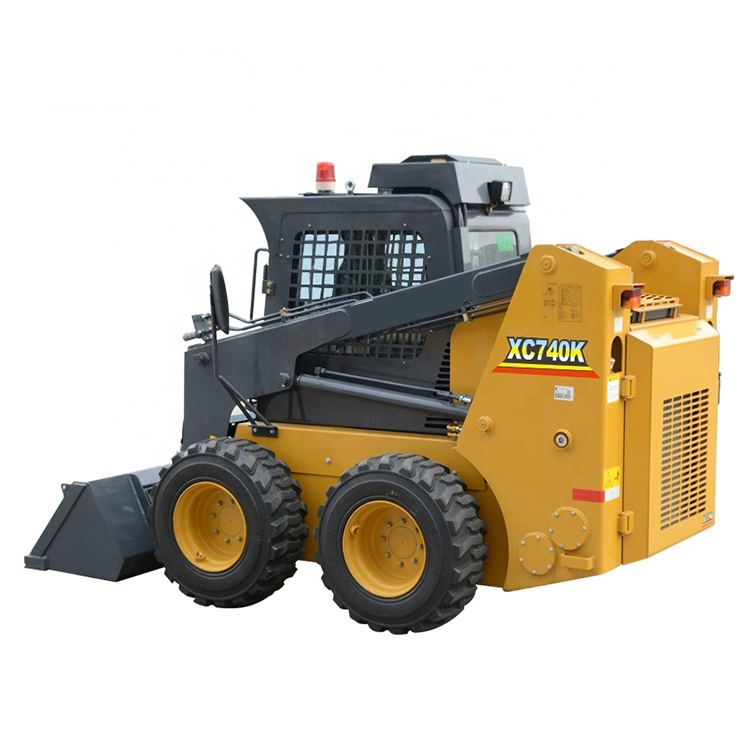

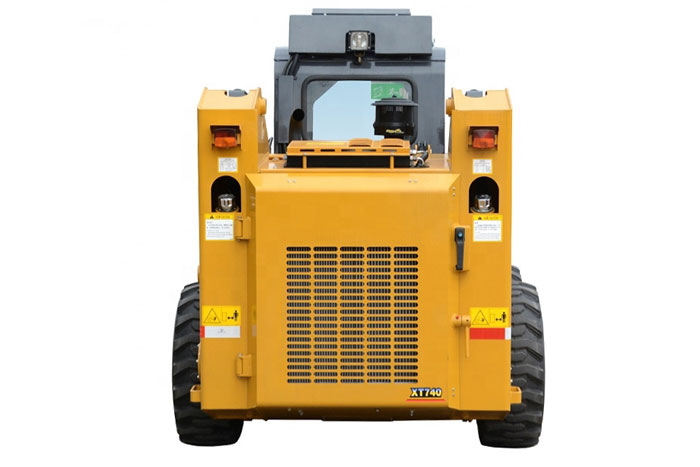

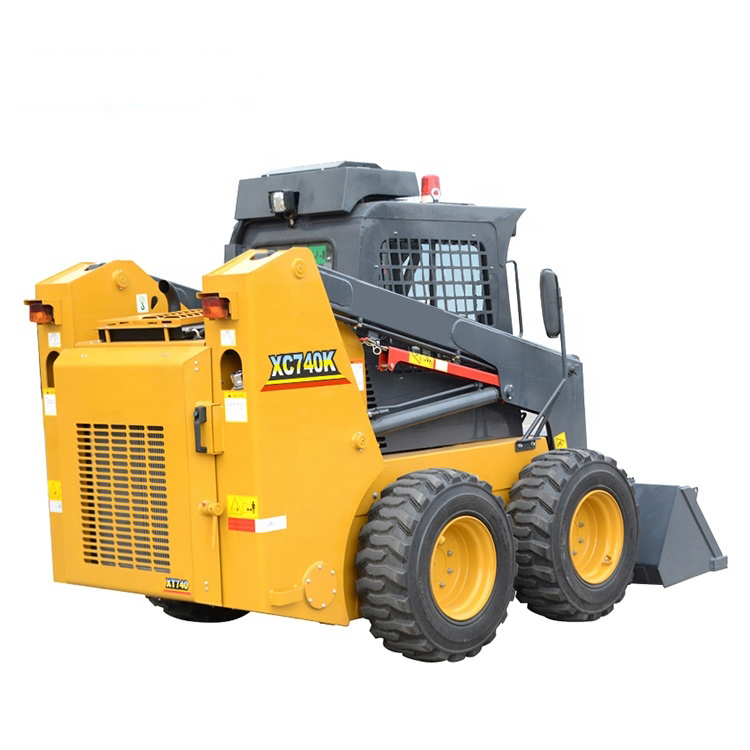

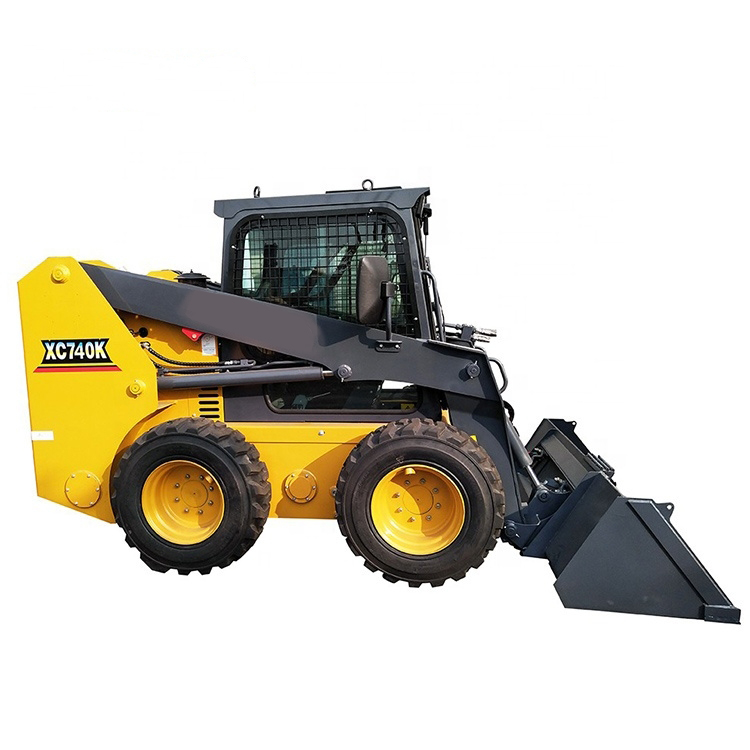

Home > Earth moving machinerySkid steer loaderXCMG XC740K Skid Steer Loader
Item | Unit | Specifications （XC740K） | |
Rated load | kg | 750 | |
Tipping load | kg | 1500 | |
Operating weight | kg | 3140 | |
Maximum breakout force | KN | 18 | |
Engine | Manufacturer | -- | Xinchai |
Model | -- | 4D27G31 | |
Rated power | Hp/kw | 49.3/36.8 | |
Rated speed | rpm | 2500 | |
Cooling mode | -- | Water-cooling | |
Performance parameter | Operation mode | Mechanical & multi function electronic control | |
Tire standard | -- | 10-16.5 | |
Maximum speed | Km/h | 14 | |
Hydraulic system | Hydraulic flow rate | L/min | 62.5 |
Optional large flow | -- | -- | |
Hydraulic pressure | bar | 200 | |
Maximum operating height | mm | 3878 | |
Bucket hinge pin height | mm | 3057 | |
Cabin top height | mm | 1960 | |
Maximum horizontal height of bucket bottom | mm | 2851 | |
Length without bucket | mm | 2533 | |
Length with bucket | mm | 3310 | |
Toppling angle | ° | 40 | |
Maximum unloading height | mm | 2375 | |
Ground-bucket angle | ° | 30 | |
Rotating angle of bucket at highest point | ° | 83 | |
Unloading distance | mm | 575 | |
Wheel base | mm | 1027 | |
Departure angle | ° | 25 | |
