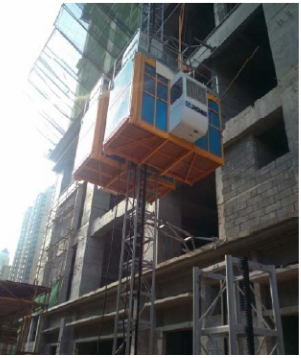

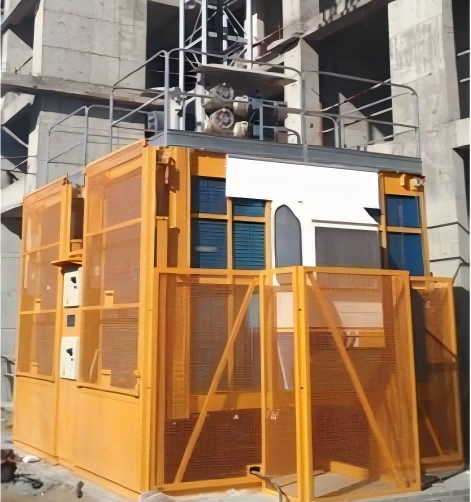

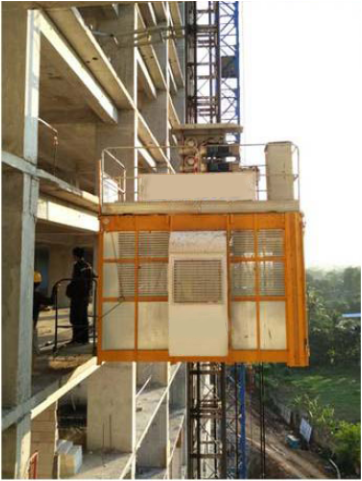

Home > Hoisting machineryTower crane XCMG SC200 Construction Hoist
The advantages are as follow:
·Starting and braking smoothly.
·Convenience installation and tansport.
·The main electrical components adopt domestic first-class manufacturers with good reliability.
·The cage coaming board and the bottom board are made of aluminum,with good appearance.
· Perfect safety protection device to ensure the safety of equipment operaton.
·Multiple configuration are available for customer selection.
Inside size of cage
(L)3200mm x(W)1500mm x(H)2200mm
Technical data
Model | Rated load (Kg) | Lifting speed (m/min) | Height (m) |
Attachementspace | Motor power (KW) | Inverter power (KW) | Safety device | |
Twin cage | SC200/200E | 2x2000 | 0-36 | 60 | 9 | 2x2x13 | 2x30 | SAJ40-12 |
Remark
·Standard cage dimension is 3.2×1.5×2.2m,special dimension can be made according to requirement of customer;
·Standard Cable guide types:cable sleeve,cable car and patent power guide rail are also available;
·Motor and reducer are made in china;
·Standard Tie-in adjustment range is 3~3.6m,or can be made according to requirement of customer;
·Standard mast section is 650×650X1508mm, base section and safety section does not install rack.
