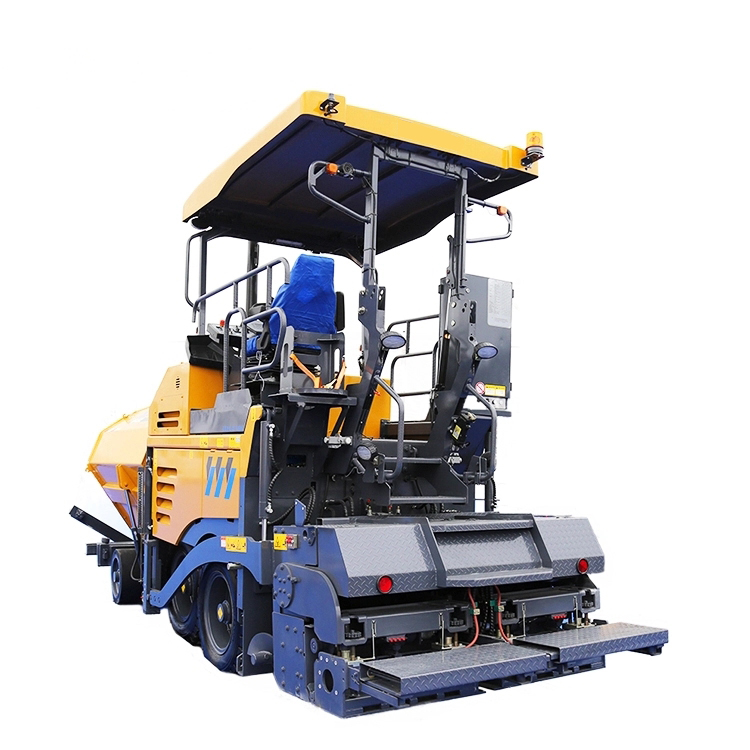

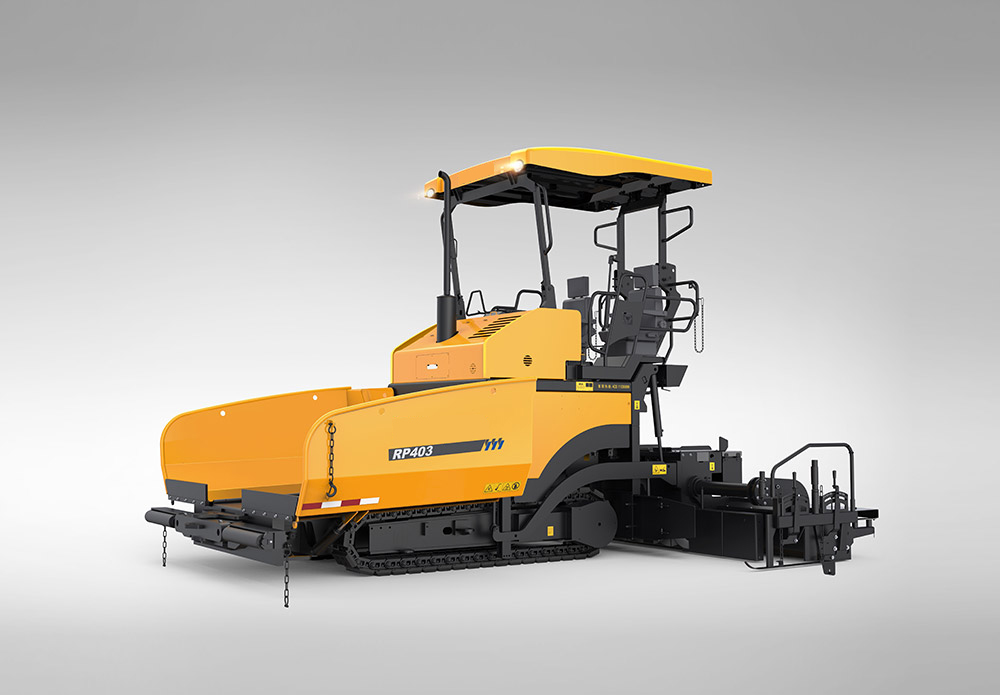

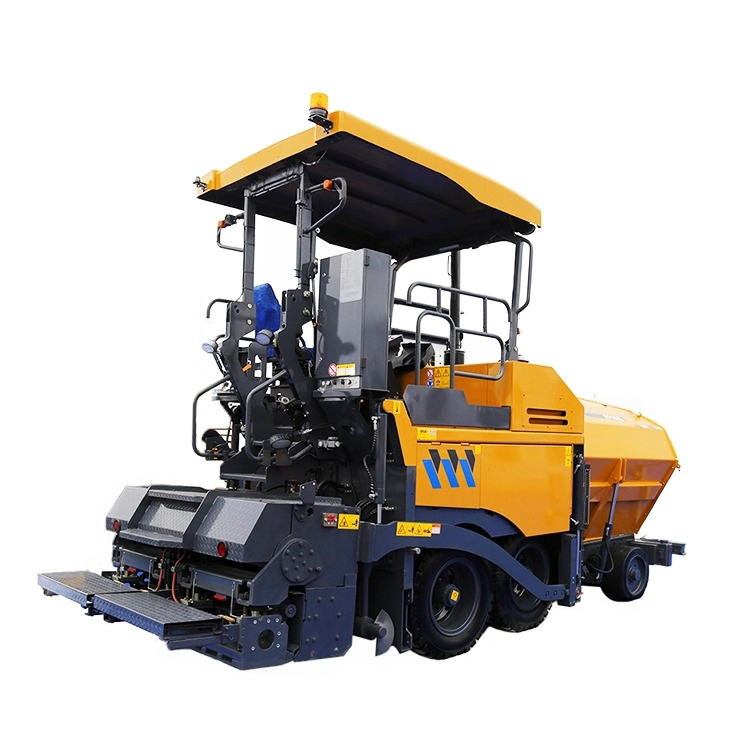

Home > Road machineryAsphalt concrete paver XCMG RP403 Asphalt Concrete Paver
Miniaturization of the machine, 1.8 meters ultra-small machine width, optional width limiting device, minimum paving width of 0.8 meters, suitable for paving maintenance of milling "grooves", using hydraulically independent drive, crawler walking .
The device is equipped with a water-cooled turbocharged diesel engine (75kW/2000rpm), a powerful three-phase alternator with generator management system, and the generator adopts independent drive technology.
The hydraulic system adopts load-sensitive control technology on both sides. The hoppers can be individually folded and oscillating follow-up inference.
The electronic control system design is a CAN bus technology platform, a network control system of the CPU control technology, and an automatic leveling device.
Model | RP403 | |
Description | Unit | Parameter value |
Basic pave width | m | 1.8-3.4 |
Maximum pave width | m | 4.5 |
Maximum layer thickness | mm | 260 |
Maximum paving speed | m/min | 30 |
Maximum driving speed | km/h | 3.6 |
Hopper capacity | t | 12 |
Maximum laydown rate | t/h | 300 |
Engine model | Deutz BF4M2012 | |
Rated power | kW/rpm | 75/2000 |
Transport dimension | mm | 5535×1800×3580 |
Transport weight | t | 11.5 |
Dimension | mm | 5535×1800×3629 |
Weight | t | 12 |
