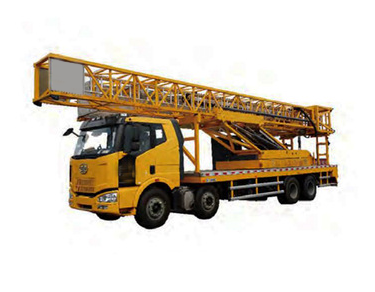

Home > Special purposs vehicleBridge Inspection Truck XCMG XZJ5315JQJC4 Bridge Inspection Truck
Similar Product
Select the products
Description | Unit | Parameter value |
Overall length of unit | mm | 12900 |
Overall width of unit | mm | 2500 |
Overall height of unit | mm | 4000 |
Total weight of unit | kg | 31000 |
Max. horizontal working range | m | 20.6 |
Max. overcoming barrier | m | 4.8/5.4 |
Max. overbridging of sidewalk | m | 3.0/3.5 |
Max. overcoming barrier of show car | m | 4.0/4.5 |
Max. overbridging of sidewalk of show car | m | 2.8/3.3 |
Max. lowering depth | m | 9 |
Max. crossing box girder | m | 7.8 |
Max. payload of platform | kg | 800 |
Max. payload of platform front | kg | 400 |
Max. platform width | m | 1.1 |
Rotation range of 1st slewing organization | ° | 0~90 |
Rotation range of 2nd slewing organization | ° | 0~180 |
Walking speed | m/min | ≥13 |
Chassis model | Jie Fang CA1310P63K2L6T4A1E4(State IV)/CA1310P63K1L6T4E5(StateV) | |
Max.net power of engine | 300Ps(State IV 220kw)/320Ps (StateV 236kW) |
