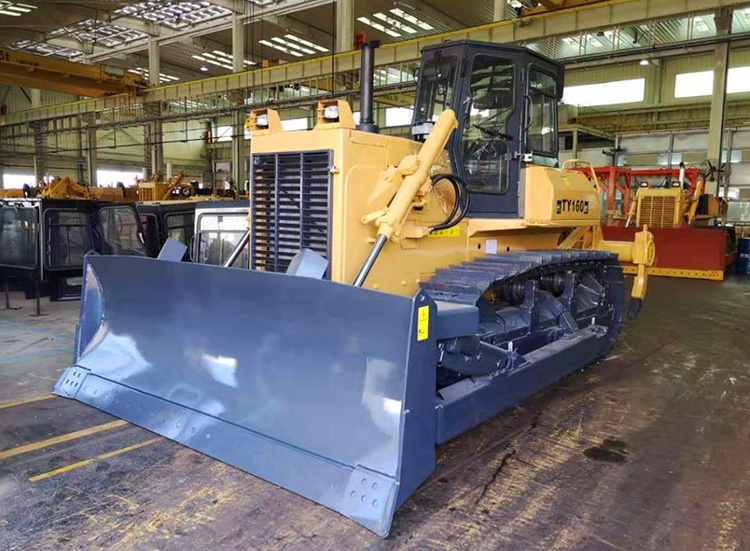

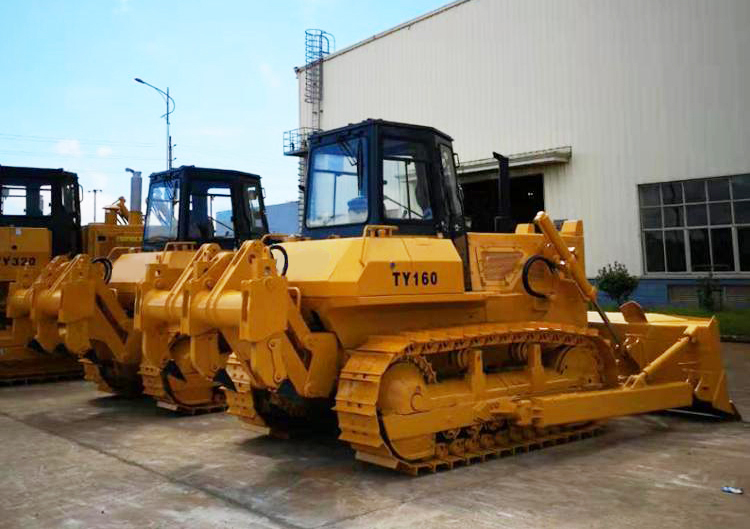

XCMG TY160 Bulldozer


Similar Product





<<  BACK TO LIST

1. The TY160 bulldozer which has excellent power, reliability and a long service life. Through the introduction of Japanese D65A-8 bulldozer technology, at the same time absorb the advantages of D60A-8,The TY160 crawler type bulldozer has been developed by the domestic design.

2. the WP10G178E25 type engine, fuel strainer to remove water filter, fuel filter assembly is a rotary type fuel filter assembly, air filter for air filter with turbo type pre filter assembly. The power is strong, the performance is reliable, and the after-sales service is convenient.

3. control console and isolation buffer material can reduce noise and reduce vibration and make the operation more comfortable.



Name

Remarks

Specifications

Overall size of the machine(mm)

Straight shovel, traction rod

5128×3416×3120

Straight shovel, three toothed soil loosen

6215×3416×3120

The use quality of the whole machine(kg)

Straight shovel, traction rod

17100

Straight shovel, three toothed soil loosen

18700

Maximum traction power (kN)


148

Minimum turning radius (mm)


3100

Maximum climbing performance (°)


30

Minimum ground clearance (mm)

No crawler

400

Average ground specific pressure (MPa)


0.065

Forward speed (km/h)

F1

3.1

F2

5.47

F3

9.07

Back speed (km/h)

R1

4.03

R2

7.12

R3

11.81

Tracked ground length (mm)


2430

Caterpillar center distance (mm)


1880

Production efficiency (m3/h)

30m distance

350

Engine

Model


Weichai WD10G178E25

type


Water cooling,straight line,four stroke,direct injection

The number of cylinder - bore * stroke (mm)


6-126×130

Rated power (kW)


131

Rated speed (r/min)


1850

Maximum torque (N.m/r/min)


830/1000~1200

Fuel consumption rate (g/kW.h)


≤210

Walking system

type

Swing type and balance beam suspension structure

Pitch (mm)


203.2

Number of wheels of single side belt


2

Number of single side pulley

unilateral and 2 bilateral

6

Crawler height (mm)


60

Working device

Straight shovel single shovel capacity (M3)


3.9

The maximum lifting height of the blade (mm)


1095

The maximum depth of soil cutting blade (mm)


545

The maximum tilt blade height (mm)


860

Type of soil looser


Three teeth

Three tooth looser tooth distance (mm)


950

Three tooth looser

Soil depth (mm)

572

Elevation (mm)

702

The three tooth scarifier weight (kg)


1621
