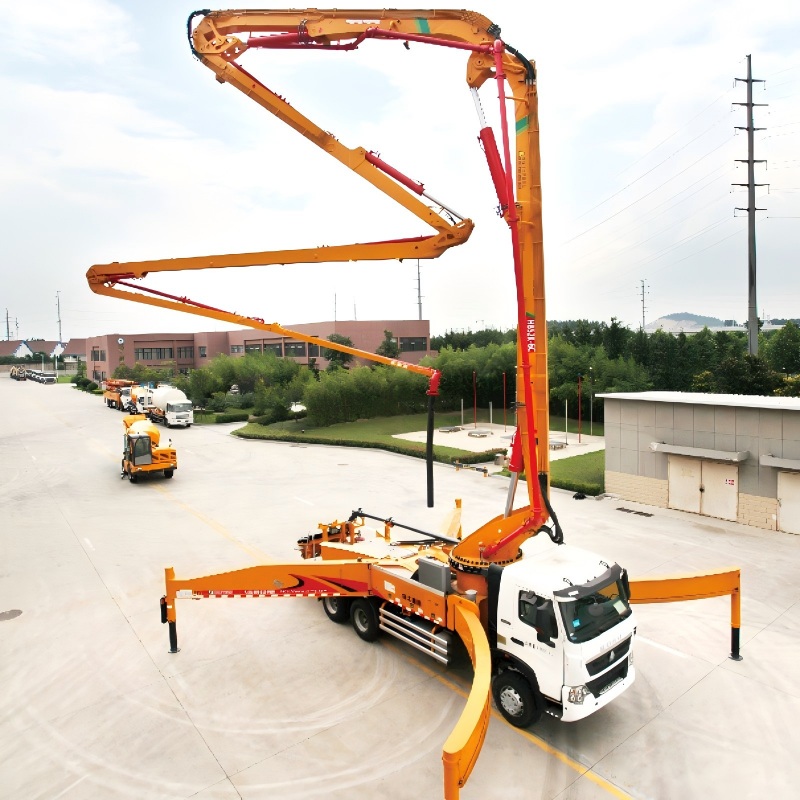

XCMG HB62K Truck Mounted Concrete Pump


Similar Product





<<  BACK TO LIST

Description

Unit

Parameter value

Outline dimension

mm

15200×2500×4000

Overall weight

kg

49000

Chassis

Model


Actros4141 8×4

Manufacturer



Max. speed

km/h

85

Max. grade-ability

%

51.4

Wheelbase

mm

2300+4000+1350

Engine

Model


OM501LA·IV/3

Max. power

kW

305

Max. torque

N·m/(r/min)

2000/1080

Displacement

L

11.946

Emission standard


Eruo IV

Pumping system

Theoretical output

m³/h

170

Concrete pumping pressure

MPa

8

Theoretical pumping times

Time/min

21~23

Delivery cylinder diameter ×stroke

mm

φ260×2200

Max. diameter of pumping concrete

mm

≤40

Filling height

mm

1540

Concrete slump range

cm

8~23

Placing boom

Reach height

m

61.1

Reach depth

m

43.6

Slewingradius

m

55.9

Slewing angle

°

±270

Unfolding angle of the 1st section

°

90

Unfolding angle of the 2nd section

°

180

Unfolding angle of the 3rd section

°

180

Unfolding angle of the 4th section

°

240

Unfolding angle of the 5th section

°

210

Unfolding angle of the 6th section

°

90

Stabilizer span

Longitudinal span of stabilizer

mm

12125

Transverse span of front stabilizer

mm

12125

Transverse span of rear stabilizer

mm

12200

Others

Lubrication method


Automatic lubrication

Control method


Manual/remote control

Volume of water box

L

1000
