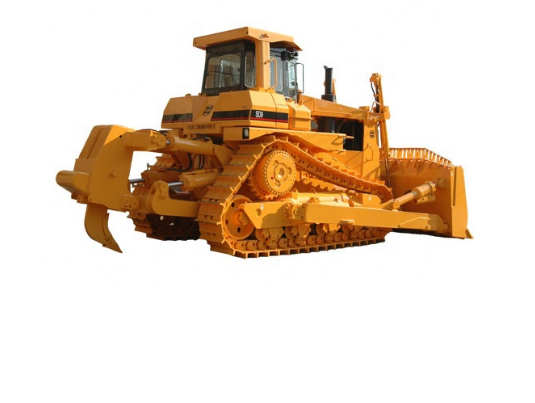

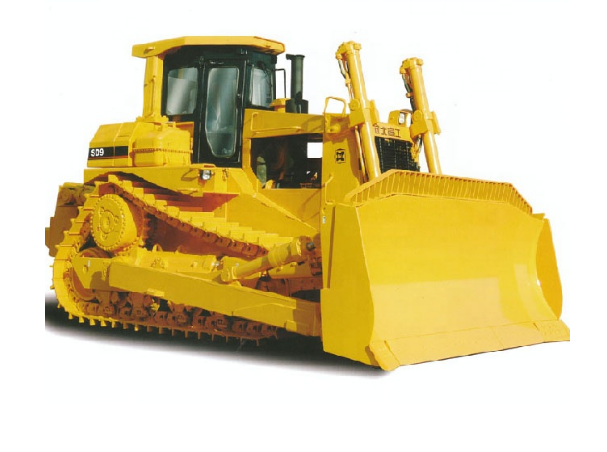

Home > Earth moving machineryBulldozer HBXG SD9N Bulldozer
Model | SD9N | |
specifications | ||
Dozer | Tilt | |
Operating weight(including ripper) | kg | 44580 |
Ground pressure | kpa | 102 |
Track gauge | mm | 2250 |
Gradient | ° | 30/25 |
Min. ground clearance | mm | 517 |
Dozer capacity | m3 | 13.5 |
Blade width | mm | 4314 |
Max. digging depth | mm | 614 |
Overall dimensions(including ripper) | mm | 6592x4314x3970 |
Engine | ||
Type | ||
Rated revelation | rpm | 2100 |
Engine power | kw | 316 |
Torque storage coefficient | % | 20 |
Undercarriage system | ||
Type | The track is triangle shape.The sprocket is elevated elastic suspended. | |
Number of track rollers(each side) | 8 | |
Pitch | mm | 240 |
Width of shoe | mm | 610 |
Gear | ||
Forward I/II/III | km/h | 3.9/6.9/12.2 |
Backward I/II/III | km/h | 4.8/8.5/15.1 |
Implement hydraulic system | ||
Max. system pressure | Mpa | 20 |
Pump type | Gears oil pump | |
System output | L/min | 220 |
Torque converter | Torque converter is power separating hydraulic-mechanic type | |
Transmission | Planetary, power shift transmission with three speeds forward and three speeds reverse,speed and direction can be quickly shifted. | |
Steering clutch | The steering clutch is hydraulic pressed, non-constant engaged clutch | |
Final drive | The final drive is two-stage planetary reduction gear mechanism, splash lubrication | |
