2011-4-28

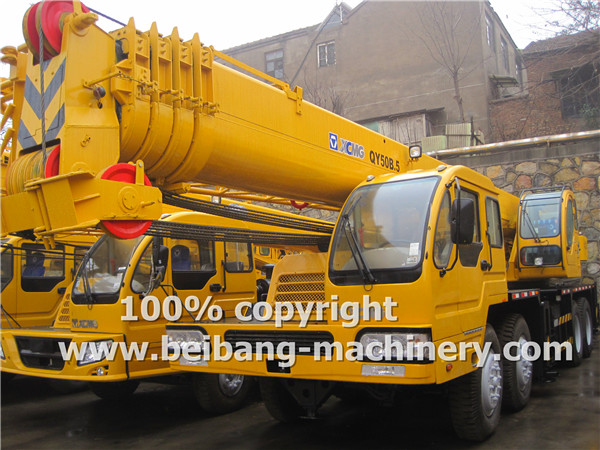

This week one truck crane XCMG QY50B.5 ready to dispatch from factory. This is the economic model with 50T truck crane, half cabin with mechanical operation.
Specification as follow:
|
Dimension |
Unit |
QY50B.5 |
|
Overall length |
mm |
13890 |
|
Overall width |
mm |
2800 |
|
Overall height |
mm |
3440 |
|
Total weight in travel |
kg |
42000 |
|
Load of axle 1, 2 |
kg |
18000 |
|
Load of axle 3, 4 |
kg |
26000 |
|
Max. travel speed |
km/h |
80 |
|
Min. turning diameter |
m |
24 |
|
Min. ground clearance |
mm |
327 |
|
Approach angle |
° |
18 |
|
Departure angle |
° |
11 |
|
Max. grade ability |
% |
35 |
|
Fuel consumption for 100km |
L |
40 |
|
Max. rated total lifting capacity |
t |
50 |
|
Min. rated working radius |
m |
3 |
|
Turning radius at turntable tail |
m |
3.71 |
|
Max. lifting torque |
kN.m |
1800 |
|
Base boom |
m |
11.56 |
|
Fully extended boom |
m |
42.58 |
|
Fully extended boom+ jib |
m |
55.8 |
