2013-6-19

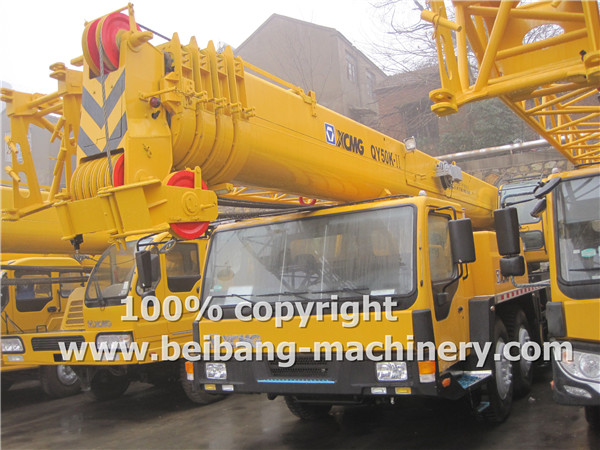

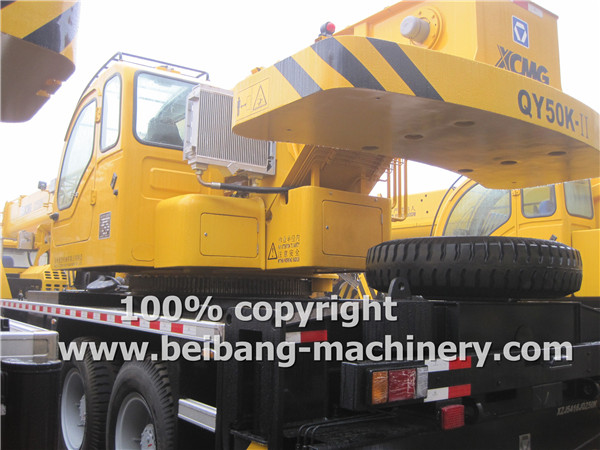

Beibang machinery new order with truck crane QY50K-II. 50T truck crane is hot model for sell. The innovative jib system adopts embedded block, plug-in boom head and international advanced U section jib, which has excellent lifting performance and safe and reliable lifting work.

Main specification as follow:

Overall length: 13750mm

Overall width: 2800mm

Overall height: 3520mm

Total weight in travel: 41000kg

Front axle load: 15000kg

Rear axle load: 26000kg

Max. travel speed: 80km/h

Min. turning diameter: 24m

Min. ground clearance: 291mm

Fuel consumption for 100km: 45L

Max. rated total lifting capacity: 50t

Min. rated working radius: 3m

Turning radius at turntable tail: 3.482m

Max. lifting torque: 1764kN.m

Base boom: 11.3m

Fully extended boom: 42.7m

Fully extended boom+ jib: 57.7m

Longitudinal outrigger span: 5.91m

Lateral outrigger span: 6.9m
