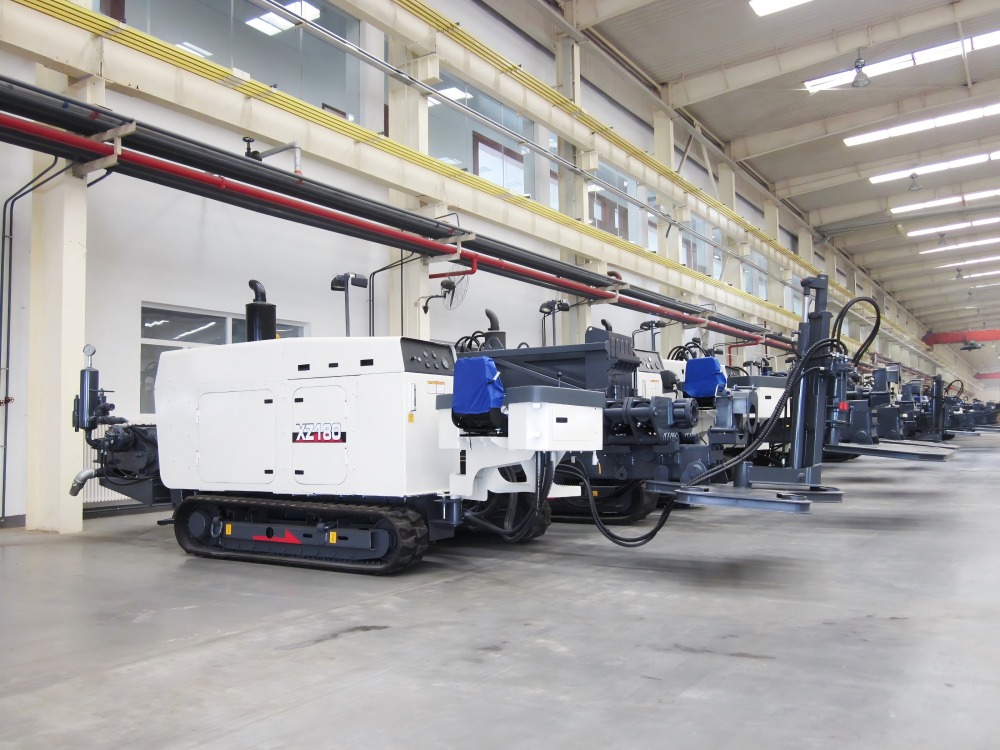

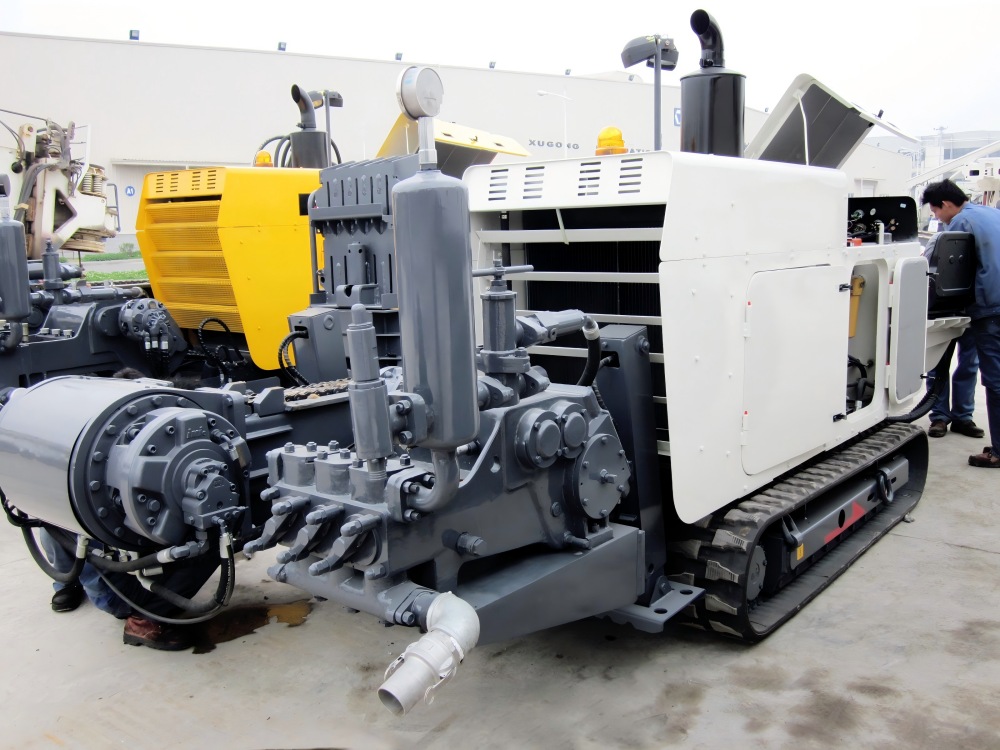

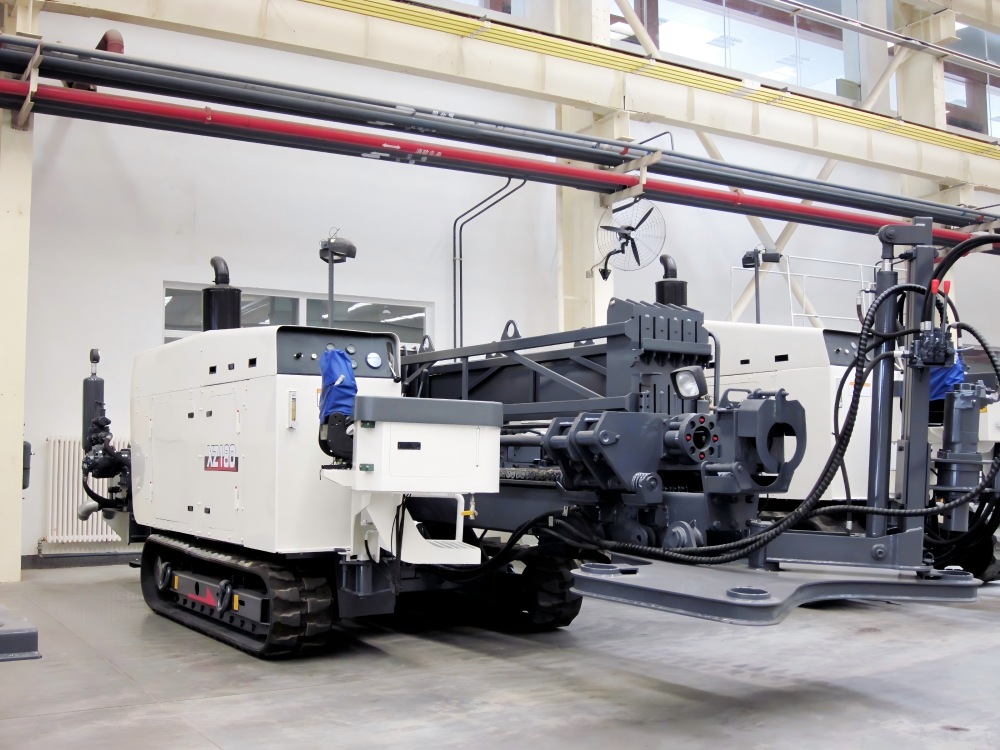

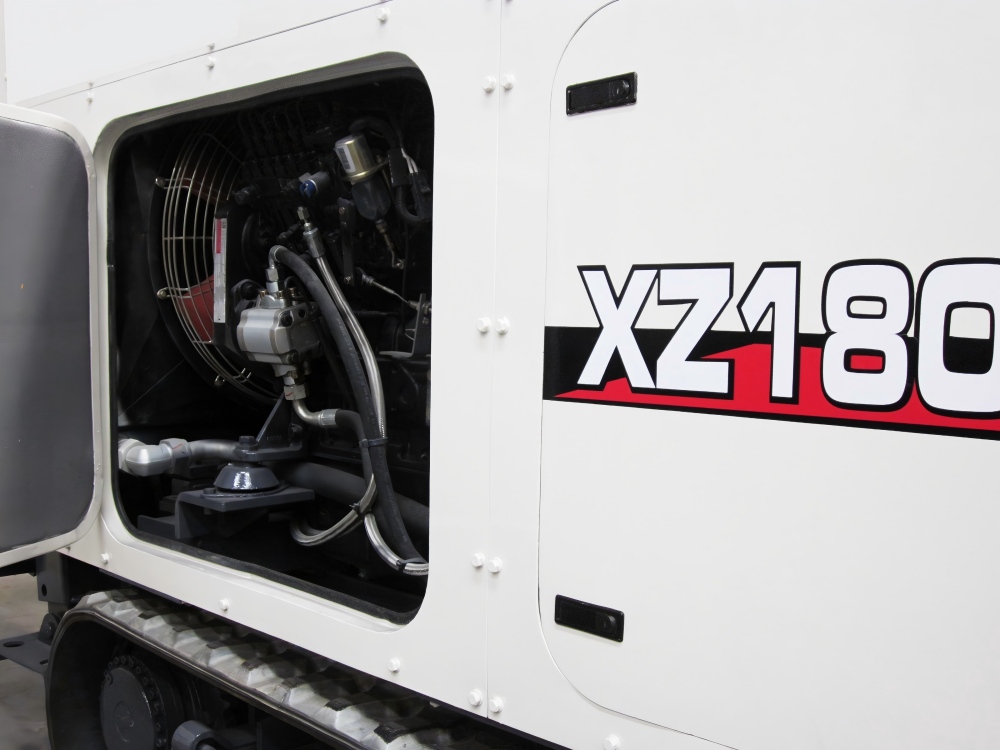

Model | XZ180 | |
Engine | CUMMINS | |
Rated power | kW | 97 |
Max.pullback/thrusting | kN | 180/180 |
Spindle torque(max) | N.m | 6000 |
Spindle speed | r/min | 0-140 |
Spindle travelling speed | m/min | 0-21 |
Backreaming diameter | mm | Ø600 |
Tubing length(single) | m | 3 |
Tubing diameter | mm | Ø60 |
Entry angle | ° | 10/22 |
Mud flow rate(max) | L/min | 250 |
Mud pressure (max) | bar | 80 |
Overall weight | kg | 8500 |
DIMENSION (LxWxH) | mm | 6500×2270×2340 |
