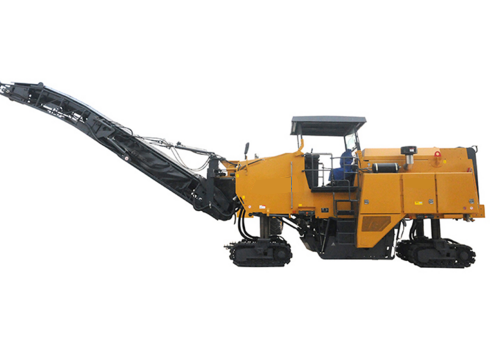

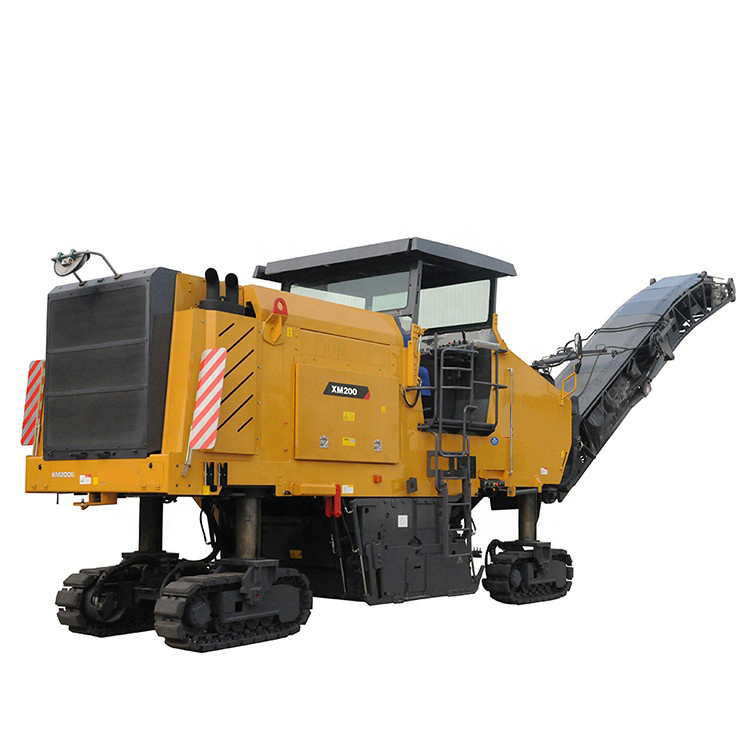

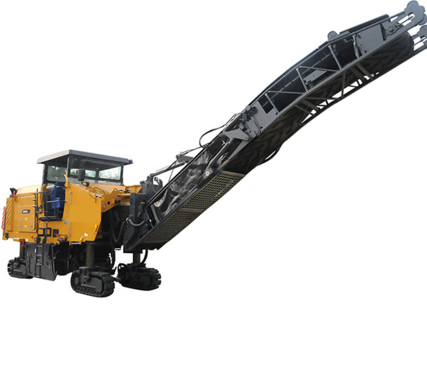

Home > Road machineryMilling machine XCMG XM200II Milling Machine
XCMG XM200II pavement milling machine is the maintenance construction machinery of asphalt concrete pavement,mainly used for excavation and renovation of highway,urban road,airport,freight yard,parking lot and other large area of asphalt concrete pavement.Can effectively remove the upheaval,oil wave,cobwebbing,rutting,etc;Could excavate pavement pit slot and groove;Can also be used for the milling of the galling defects and dislocation of cement road surface.The equipment has high working efficiency,simple construction technology,and the milling depth is easy to control,convenient and flexible,good maneuvering performance,and direct recycle of old milling material,can be widely used for maintenance and renovation of the asphalt pavement.
Model | XM220II | ||
Max. milling with | mm | 2000 | |
Max. milling depth | mm | 320 | |
Milling wheel | Number of tools | 146 | |
Drum diameter with tools | mm | 980 | |
Engine | Model | Weichai DHP13 | |
Rated power | kW | 390 | |
Rated speed | rpm | 2100 | |
Specifications | Operating speed | m/min | 0~40 |
Travel speed | km/h | 0~5 | |
Ground clearance | % | 60 | |
Ground clearance | mm | 320 | |
Operating weight | kg | 34000 | |
Volume | Fuel tank | L | 1400 |
Hydraulic oil tank | L | 300 | |
Water tank | L | 3400 | |
Conveyor | Width | mm | 850 |
Measurement | Overall machinery L*W*H | mm | 7650*2580*3000 |
Conveyor L*W*H | mm | 8060*1150*1500 |
