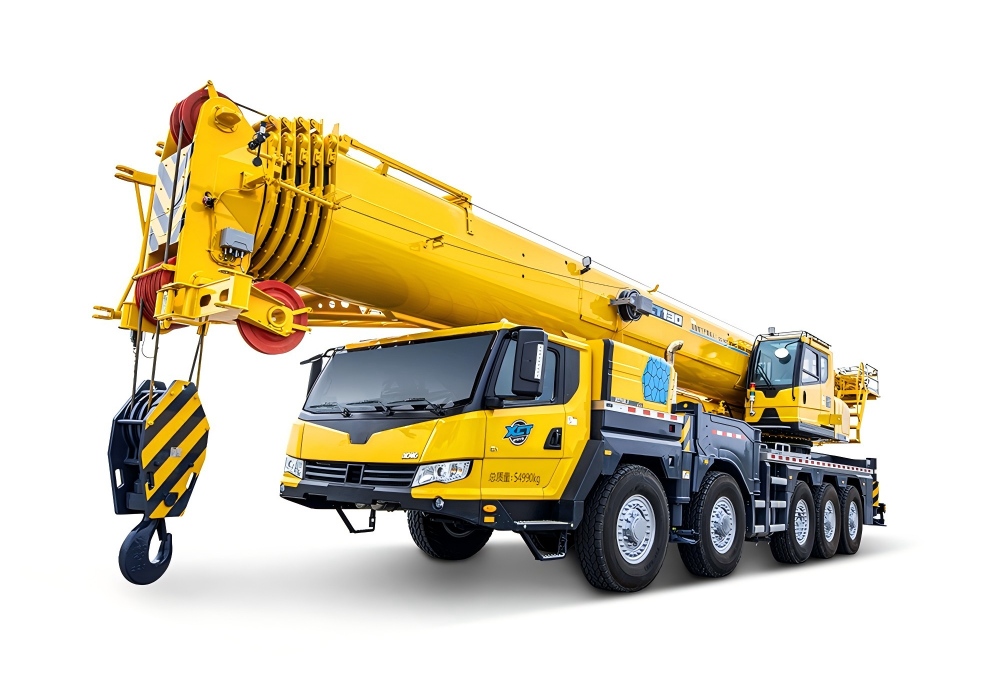

Home > Hoisting machineryTruck crane XCMG XCT130-I Truck Crane
G-generation 130-ton truck crane, K-leg, compact structure, leading performance, safe and reliable, economic and environmental protection, tailor-made for users of a high-quality model.
1: Lifting performance and driving performance are improved in an all-round way, and the overall lifting performance is 12% higher than the industry's highest level.
2: Low-speed and high-torque power system reduces fuel consumption by 12% and increases climbing capacity by 12%.
3: The average fuel consumption of the comprehensive working condition is reduced by 10%, and the smoothness and fretting performance are increased by 15%.
4: The industry's first crane intelligent boom technology, to achieve car-level Xugong machine interaction system, to provide users with a comfortable intelligent operation experience;
5: The new generation of appearance, humanized design, user operation is more comfortable and convenient;
Item | Unit | Specification |
Dimensions | ||
Overall length | mm | 15785 |
Overall width | mm | 3000 |
Overall height | mm | 3995 |
Wheel base | mm | 2200+3050+1500+1500 |
Wheel track | mm | 2528/2528/2518/2518/2518 |
Weight | ||
Total weight in travel | kg | 54900 |
Axle load | kg | 10990/11000/11000/11000/11000 |
Power | ||
Engine model | - | MC13.48-50 |
Engine rated power | kw/(r/min | 356/1900 |
Engine rated torque | N.m/(r/min | 2300/1050-1400 |
Travel | ||
Travelling | ||
Max. travel speed | km/h | ≥90 |
Min. stable travel speed | km/h | 3 |
Turning | ||
Min. turning diameter | m | ≤20 |
Min. turning diameter(boom head) | m | ≤23 |
Max. grade ability | % | ≥45 |
Min. ground clearance | mm | 360 |
Approach angle | ° | 20 |
Departure angle | ° | 15 |
Braking distance | m | ≤10 |
Fuel consumption for 100km | L | 65 |
Lifting performance | ||
Max. total rated lifting capacity | t | 130 |
Min. rated working radius | m | 3 |
Base boom Max. load moment | kN·m | 5200 |
Turning radius at turntable tail | mm | 5112;5110 |
Outrigger | ||
Longitudinal distance span | m | 8.45 |
Lateral distance span | m | 7.9 |
Max. lifting height | ||
Base boom | m | 14 |
Fully extended boom | m | 64.1 |
Fully extended boom+jib | m | 95.5 |
Fully extended boom+jib+ extension | - | - |
Boom length | ||
Base boom | m | 13.9 |
Fully-extended boom | m | 65 |
Fully-extended boom+jib | - | 99.5 |
Fully extended boom+jib+ extension | m | - |
Working speed | ||
Max. swing speed | r/min | ≥1.4 |
Lifting speed | ||
Main winch | - | ≥135 |
Vice winch | - | ≥135 |
Boom full extension time | ||
extension | s | ≤650 |
contraction | - | - |
Boom elevating time | ||
Lifting | s | ≤65 |
Dropping | s | - |
Horizontal | ||
Stretching | s | ≤40 |
Retracting | s | ≤40 |
Vertical | ||
Stretching | s | ≤50 |
Retracting | s | ≤50 |
