Home > Hoisting machineryTruck craneXCMG XCT12L4 Truck Crane

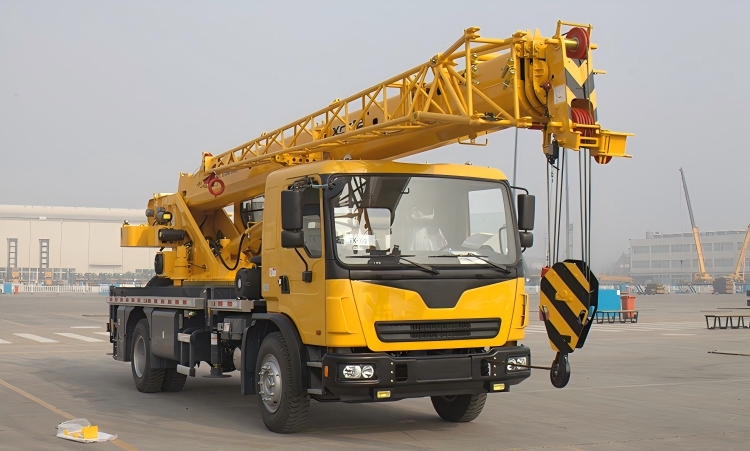

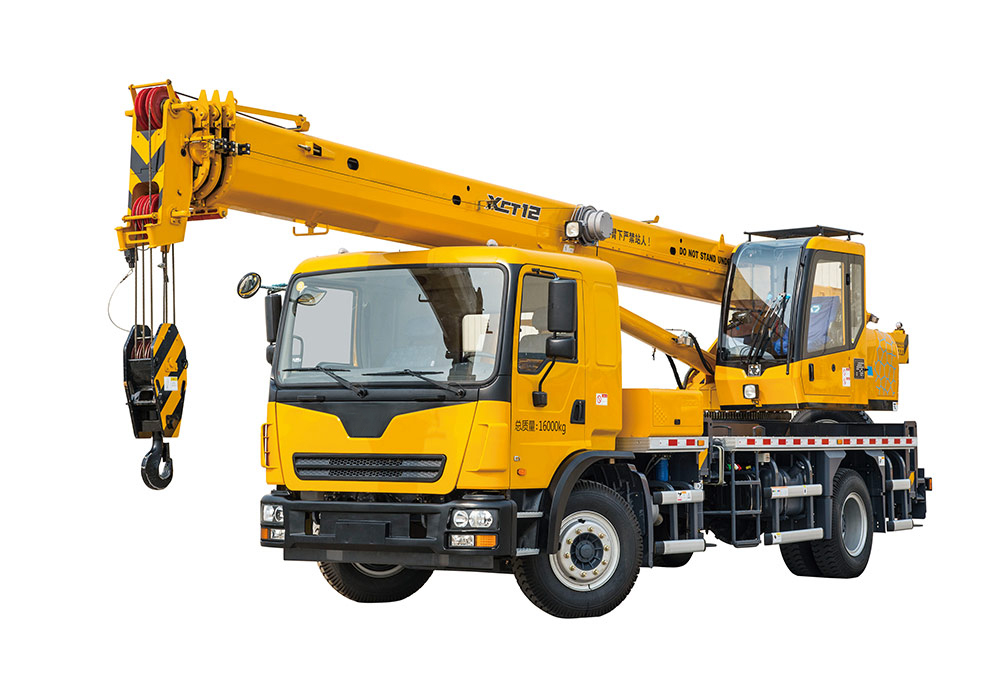

XCT12L4 Truck crane is widely used for the lifting operations in general engineering projects, such as construction site, urban renewal, communication and transportation, ports, bridge, oilfields and mine, and complex working environments.
Advantages and highlights:
Super lifting performance
4-section boom of 32m with eight side profile is the longest of the same class in the industry; the max. parts of line is 6 for the main hook block. The performance is 10% higher than that of the competitors.
New energy-saving hydraulic system
The min. stable slewing speed is 0.1°/s. The min. stable lifting speed (drum) is 2.5m/min. Precise and safe lifting movements can be realized.
Drive train
Weichai/Shanghai Nation V diesel engine, rated power 162kw/170kw, max. torque 850N.m900N.m；Weichai/Shanghai Nation III diesel engine, rated power 176kw/170kw, max. torque 900N.m900N.m.
Max. travel speed 90Km/h, Max. grade ability 41%
Energy-saving power transmission system
With new energy-saving motor, the novel power platform is centered with one-stage retarding axle and equipped with full synchronizer containing transmission with over speed gear. Strong drive performance and load bearing capacity contribute to perfect combination of high power performance and low oil consumption, which reduces the general oil consumption over 10% and exceeds competitors more than 12% at the max. speed.
Item | Unit | Specification |
Dimensions | ||
Overall length | mm | 10900 |
Overall height | mm | 3550 |
Wheel base | mm | 4700 |
Wheel track | mm | Meritor 2076/1830 |
Weight | ||
Total weight in travel | Kg | 16000 |
Axle load | Kg | 6000+10000 |
Power | ||
Engine model | SC7H230Q4/WP6.220E40 | |
Engine rated power | kw/(r/min) | 170/2300 162/2300 |
Engine rated torque | N.m/(r/min) | 900/1400 850/1400-1600 |
Travel | ||
Travelling | ||
Max. travel speed | km/h | 90 |
Min. stable travel speed | km/h | 2～3 |
Turning | ||
Min. turning diameter | m | 18 |
Min. turning diameter(boom head) | m | 22 |
Max. grade ability | ％ | 41 |
Min. ground clearance | mm | 250 |
Approach angle | ° | 21 |
Departure angle | ° | 13 |
Braking distance | m | ≤10 |
Fuel consumption for 100km | L | 25 |
Lifting performance | ||
Max. total rated lifting capacity | t | 12 |
Min. rated working radius | m | 3 |
Base boom Max. load moment | kN·m | 482.5 |
Turning radius at turntable tail | mm | 2570 |
Outrigger | ||
Longitudinal distance span | m | 4.57 |
Lateral distance span | m | 5.5 |
Max. lifting height | ||
Base boom | m | 9.5 |
Fully extended boom | m | 30.9 |
Fully extended boom＋jib | m | 38.1 |
Boom length | ||
Base boom | m | 9.45 |
Fully extended boom | m | 30.5 |
Fully extended boom＋jib | m | 37.5 |
Fully extended boom＋jib+ extension | m | - |
Working speed | ||
Max. swing speed | r/min | 3 |
Lifting speed | ||
Main winch | s | 130 |
Vice winch | s | 130 |
Boom full extension time | ||
extension | s | 58 |
contraction | s | - |
Boom elevating time | ||
Lifting | s | 38 |
Dropping | s | - |
Horizontal | ||
Stretching | s | ≤20 |
Retracting | s | ≤15 |
Vertical | ||
Stretching | s | ≤25 |
Retracting | s | ≤20 |
