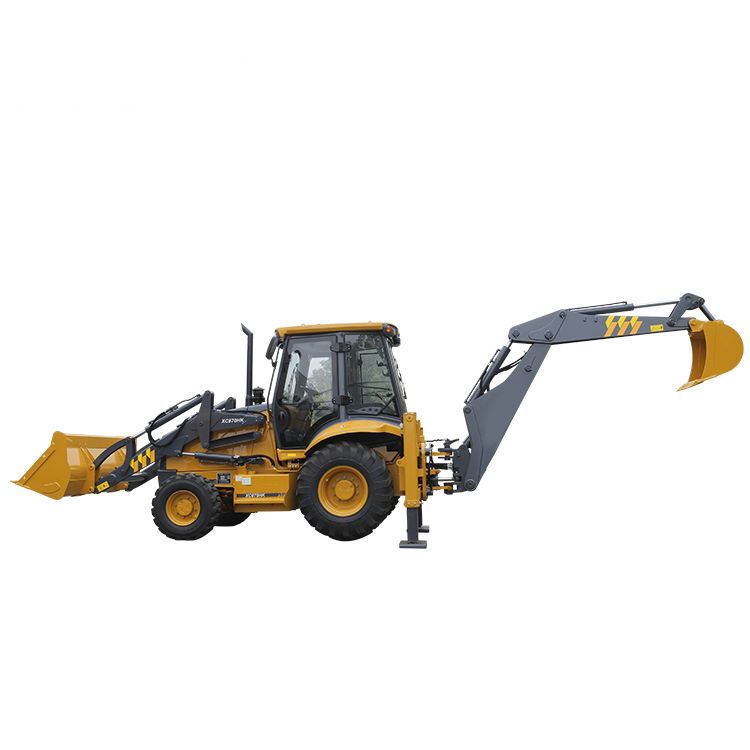

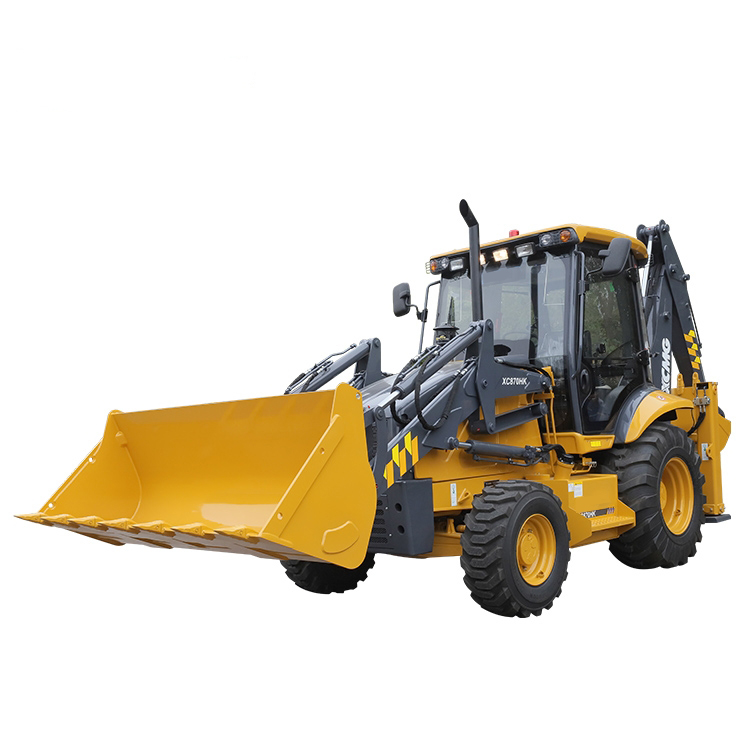

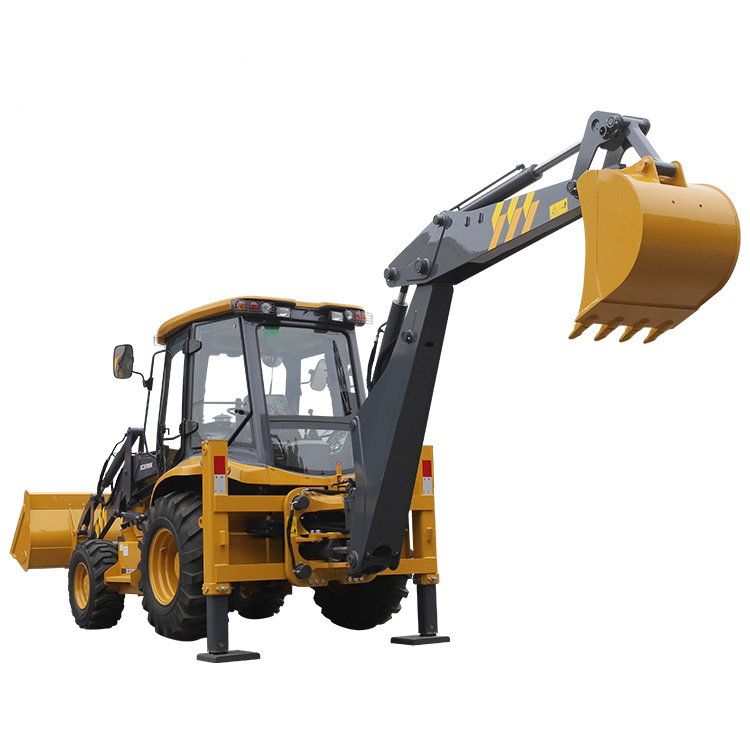

XC870HK is a K series backhoe loader newly launched by XCMG. This product is upgraded on the basis of the mature equipment and technical performances of present products, including the upgrade of engine emission, lightweight upgrade of structural parts, and optimization of working device parameters, to further improve the comfort, safety, maintainability, reliability, supportability, and economy of the product.
Item | Unit | Specifications（XC870HK） | |
Chassis type | -- | integrated | |
Drive style | -- | 4 drive/2 drive | |
Digging working device | -- | side | |
Outline dimensions(L×W×H) | mm | 6075×2350×3520 | |
Total weight | kg | 8200 | |
Max. travel speed | km/h | ≥40 | |
Wheelbase | mm | 2180 | |
Engine | Power | kW | 82/ 74/70 |
Loading device | Bucket capacity | m³ | 1 |
Rated load | kg | 2500 | |
Max. breakout | KN | 66 | |
Max. discharge height | mm | 2770 | |
Max. discharge distance | mm | 755 | |
System pressure | M pa | 24 | |
Digging device | Bucket capacity | m³ | 0.25 |
Max. digging radius | mm | 5420 | |
Max. digging depth | mm | 4320 | |
Max. digging force | KN | 63 | |
System pressure | M pa | 24 | |
