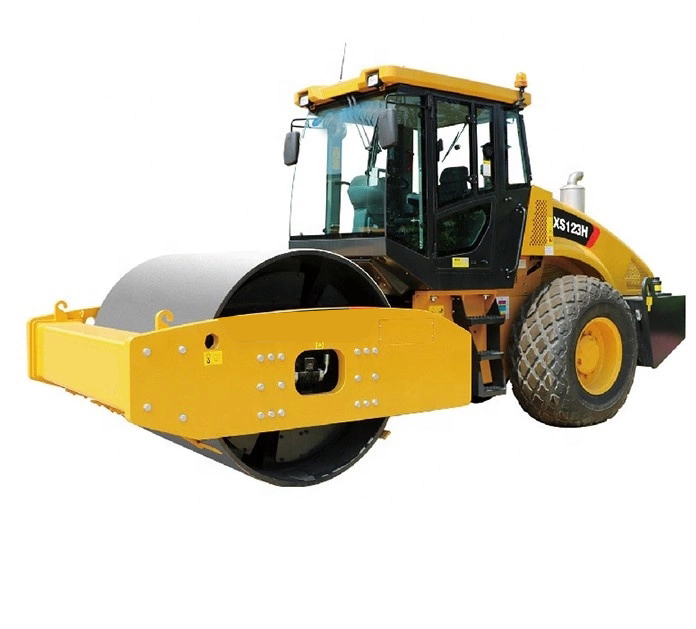

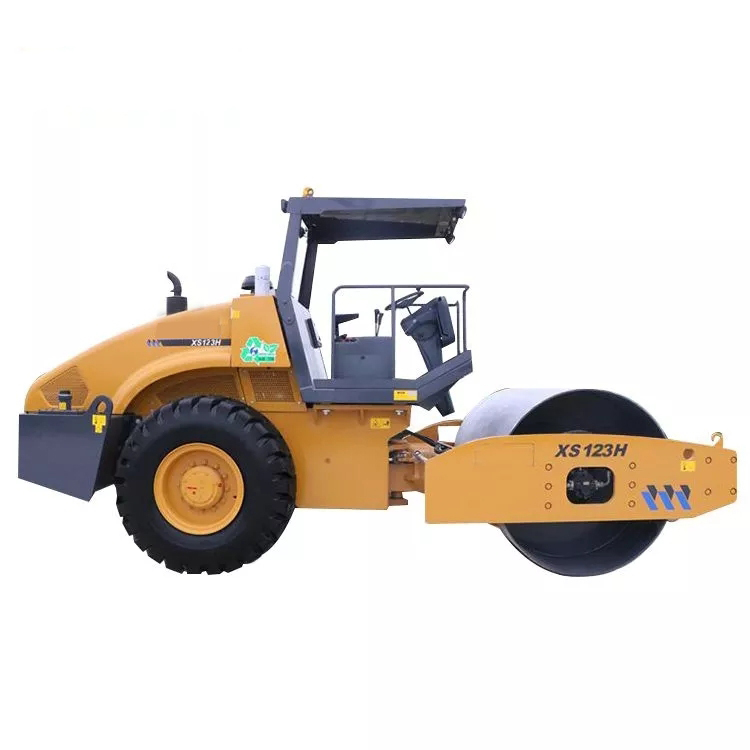

Home > Road machinery>Road roller>XCMG XS123H Hydraulic Single Drum Vibratory Roller





Similar Product

Select the products

<< BACK TO LIST

Description	Unit	Parameter value
Work weight	kg	12000
Drive wheel distribution weight	kg	6400
Vibratory drum distribution weight	kg	5600
Static line load	N/cm	258
DrVibration frequency	Hz	30/35
Theoretical amplitude	mm	1.8/0.9
Exciting force	kN	240/160
Speed range	km/h	0-7.3
Wheelbase	mm	3040
Compaction width	mm	2130
Theoretical climbing ability	%	30
Minimum turning radius	mm	6800
Vibratory drum diameter	mm	1513
Minimum ground clearance	mm	431
Engine	Model	SC4H135G2
	Rated speed	2200
	Rated power	100
Dimensions	mm	6150×2300×3200
Vibration system pressure	MPa	18
Steering system pressure	MPa	16
