Home > Earth moving machineryWheel loader XCMG LW160FV Wheel Loader

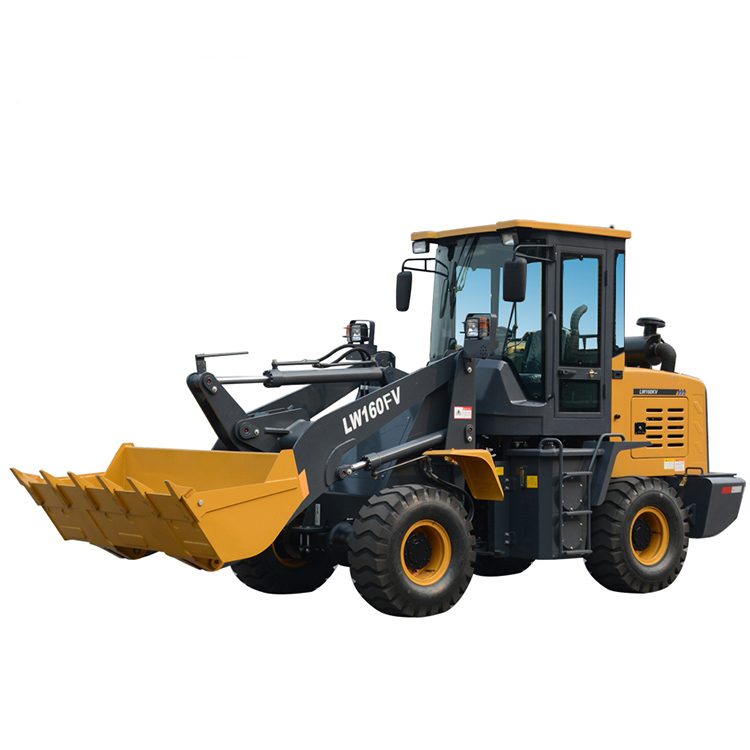

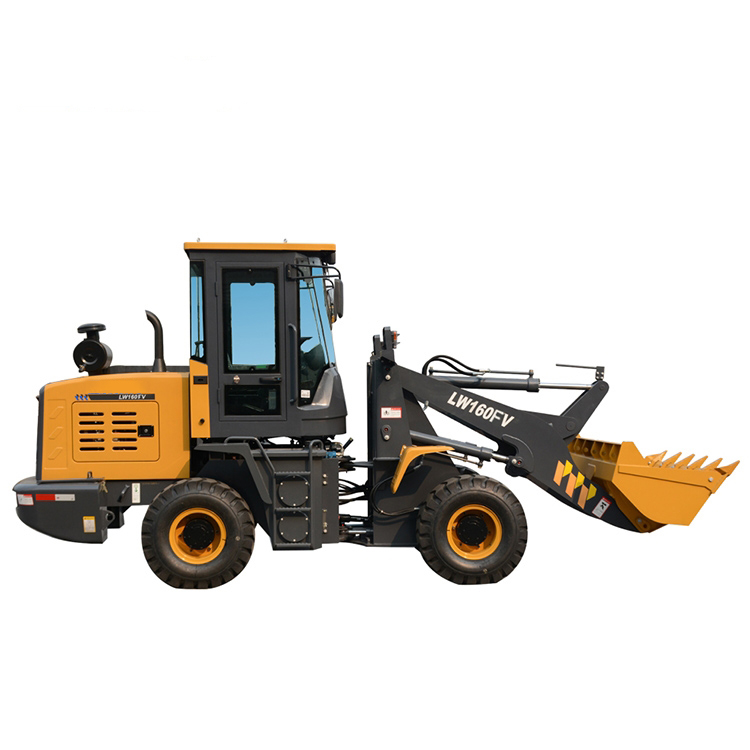

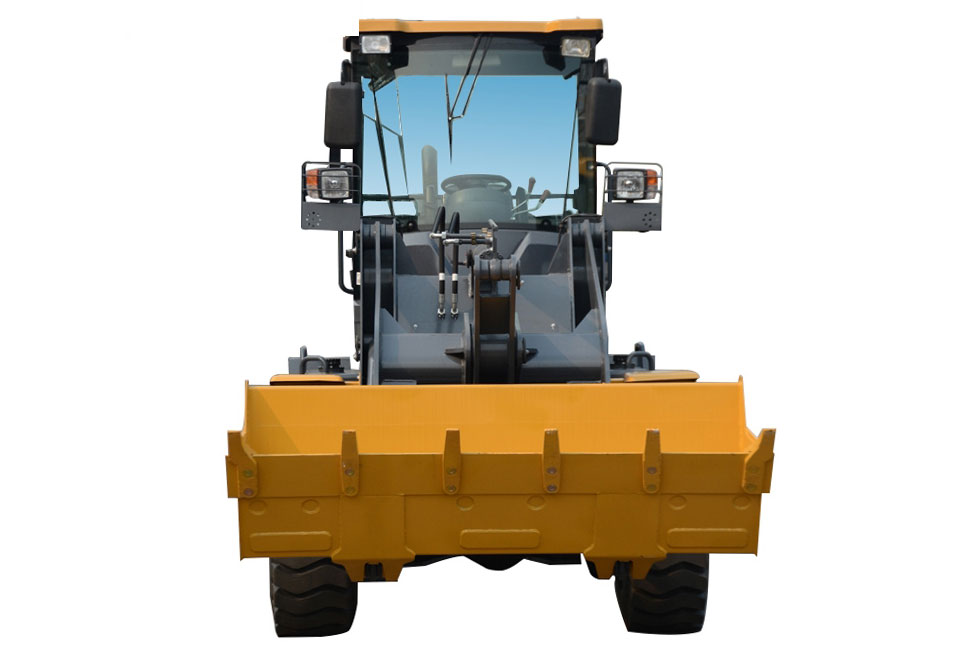

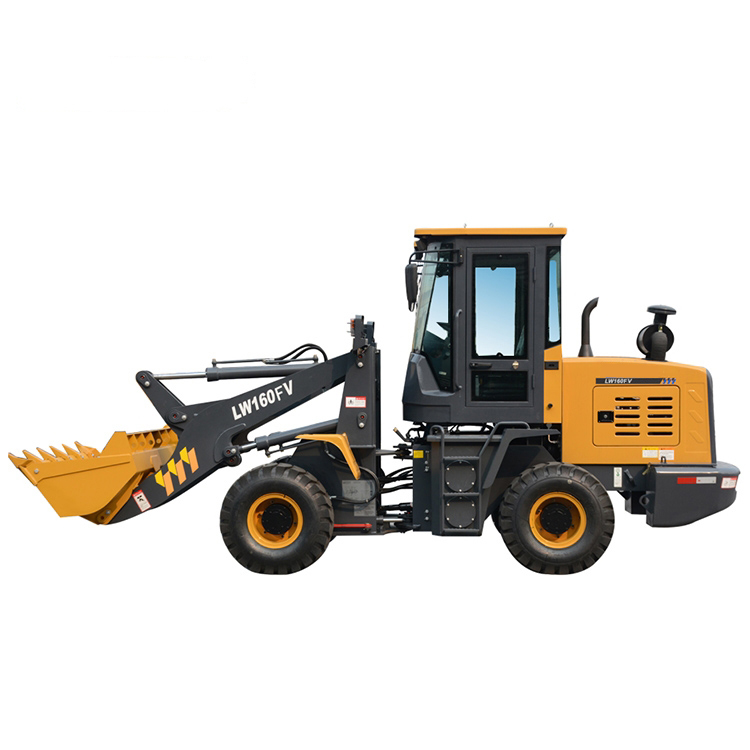

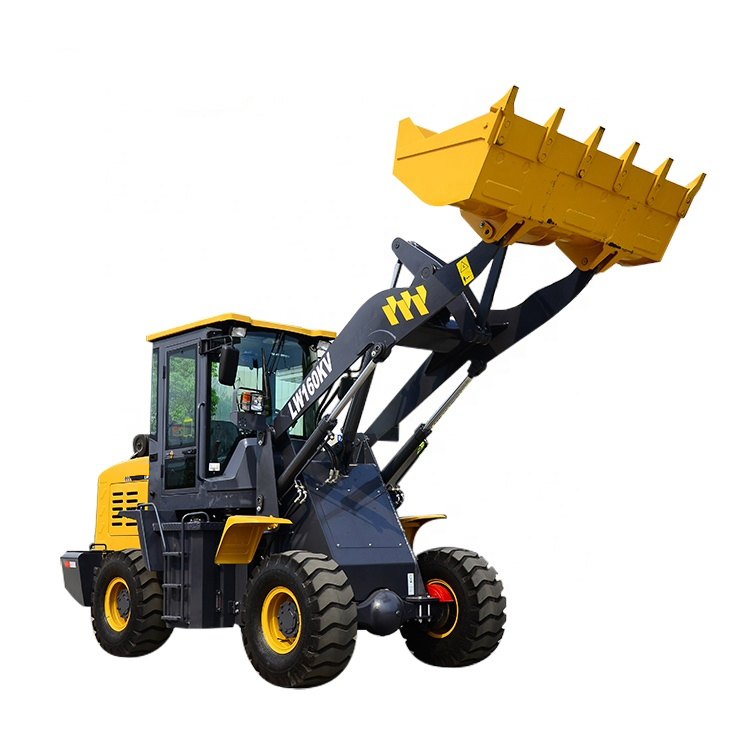

LW160FV is the latest generation of loaders introduced by XCMG. The product adopts the international mainstream modelling, the best matching of the power train, and the working device is fully optimized. It is a high-quality, high-efficiency, cost-effective small-sized loader widely used in housing construction, road maintenance, agriculture, forestry, water conservancy, sand and gravel yards and other fields. Small construction work.
1.Designed with a long wheelbase (2250mm) to accommodate all types of heavy load conditions.
2.The unloading height can reach up to 3.0 meters to meet the needs of various occasions.
Item | Unit | Specification (LW160FV) |
Rated load | kg | 4950/5100/5500 |
Bucket capacity | m³ | 0.9 |
Rated operating load | kg | 1300/1200/1000 |
Dumping height | mm | 3000/3400/3830 |
Dumping distance | mm | 785/900/860 |
Boom lifting time | s | 5.5/6.3 |
Total cycle time | s | 9/11 |
Grade ability | ° | 23 |
Max. breakout force | KN | 44 |
Min. turning radius over tires | mm | 4600 |
Articulation angle | ° | 35 |
Tyre size | - | 16/70-16 |
I -gear(F/R) | km/h | 8 |
II -gear(F/R) | km/h | 20.5 |
Overall machine dimension (L*W*H) | mm | 6150×2060×2930/6650×2060×2930/6800×2060×2930 |
Wheel base | mm | 2350 |
Tread | mm | 1500 |
Engine model No. | - | YN4C082-31CR |
Rated Power/Speed | kW/r/min | 60/2400 |
