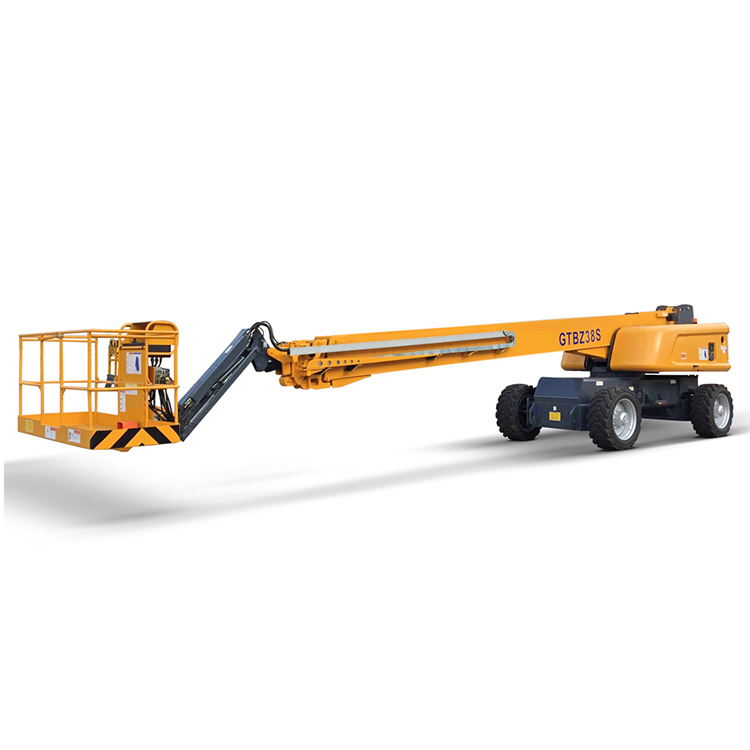

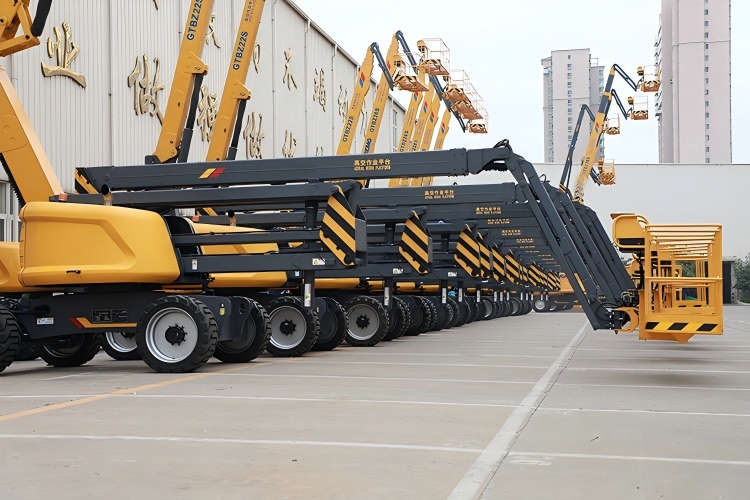

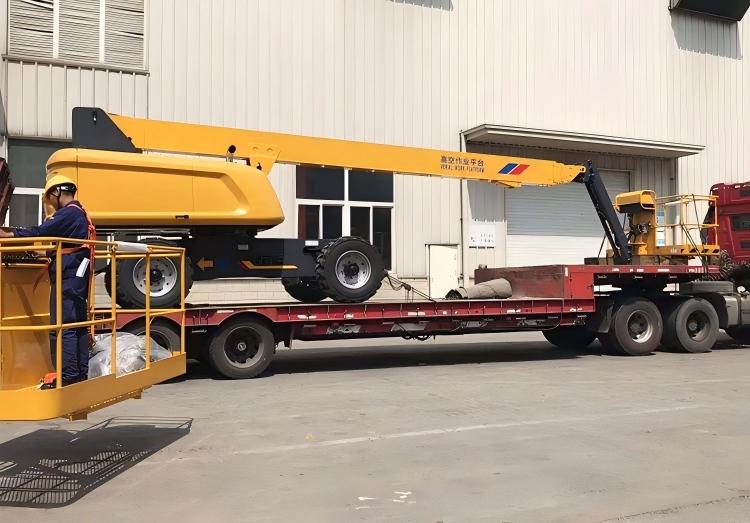

Home > Special purposs vehicleAerial Work Platform XCMG GTBZ38S Aerial Work Platform
Main configuration:
Four-wheel drive, four-wheel steering, axle balance, foam filled tires
Max. travel speed: 5km/h;
Max. grade ability: 40%;
Axle extending and retracting system: Max. span is 3.8m, providing better vehicle stability
Axle balance system: greatly improving the capability to pass through rugged road surface
XCMG CTBZ38S built-in traveling reducer integrating motor and reducer is selected, with fast and slow travel speed, which can meet the requirements for traveling in different environment. The traveling mechanism has self-braking function when traveling on a slope, meanwhile clutch device is equipped for dragging in event of failure.
Item | Unit | Parameter |
Overall length | mm | 14060 |
Overall width (axle retracting/axle extending) | mm | 2490/3800 |
Overall height | mm | 3000 |
Wheel base | mm | 3800 |
Max. working height | m | 39.9 |
Max. platform height | m | 38.2 |
Max. working radius | m | 23.3 |
Max. load capacity | kg | 230 (no limit)/340 (with limit) |
Boom elevation range | ° | -7~+75 |
Turntable slewing angle | ° | 360° |
Max. tail swing (axle retracting/axle extending) | mm | 2085/1430 |
Platform dimension | mm | 2400×900 |
Slewing angle of platform | ° | 180 |
Overall weight | kg | 20600 |
Max. travel speed | km/h | 5 |
Min. turning radius (axle retracting/axle extending) | m | 8.2/10.8(turning for twice) |
5.8/6.8(turning for four times) | ||
Min. ground clearance | mm | 260 |
Max. grade ability | % | 40 |
Tire specification | - | 445/50D710 |
Engine mode | - | Perkins 1104D-44T |
Cummins B3.3-85HP | ||
Engine rated power | kW/(r/min) | 55.5/2400 |
63/2600 |
