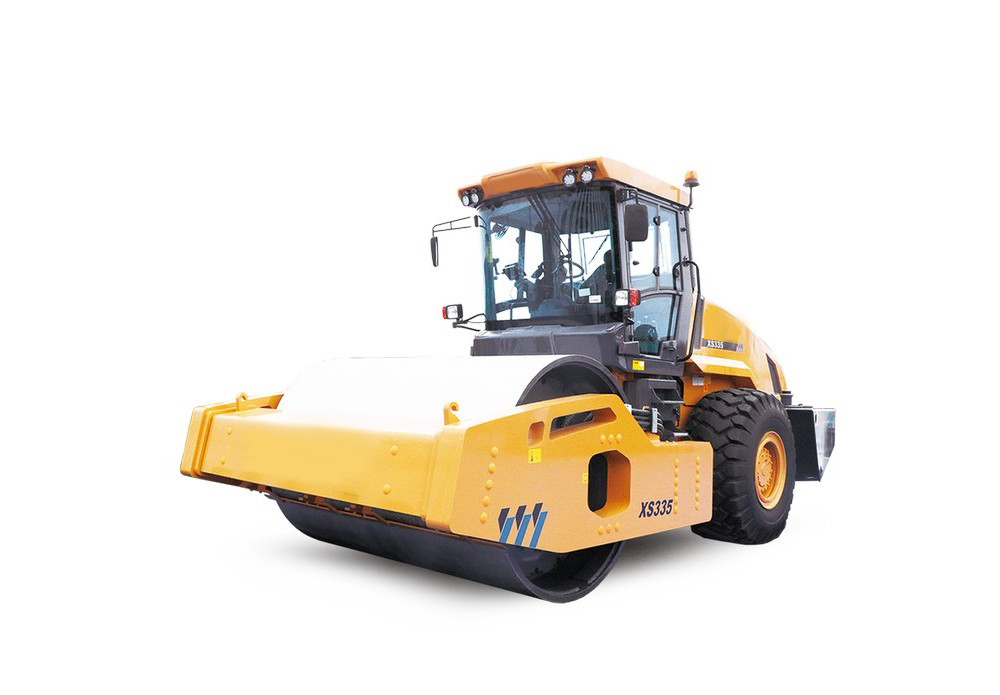

Home > Road machineryRoad roller XCMG XS335 Hydraulic Single Drum Vibratory Roller
Similar Product
Select the products
Item | Unit | Specification |
Working performance | ||
Static linear load | N/cm | 938 |
Vibration frequency | Hz | 26/31 |
Theoretical amplitude of vibration | mm | 2.2/1.1 |
Centrifugal force | kN | 670/480 |
Drum width | mm | 2170 |
Travelling performance | ||
Max. travelling speed | km/h | 10.4 |
Min. travelling speed | km/h | 4 |
Theoretical gradeability | % | 45 |
Min. turning radius | mm | 7060 |
Swing angle | ° | 33 |
Weight | ||
Operating weight | kg | 33500 |
Distributed weight on front drum | kg | 11000 |
Distributed weight on vibrating drum | kg | 22500 |
Dimensions | ||
Overall dimensions(L×W×H) | mm | 7592x2800x3478 |
Engine | ||
Model | Weichai | |
Rated speed | r/min | 2200 |
Rated power | kW | 276 |
