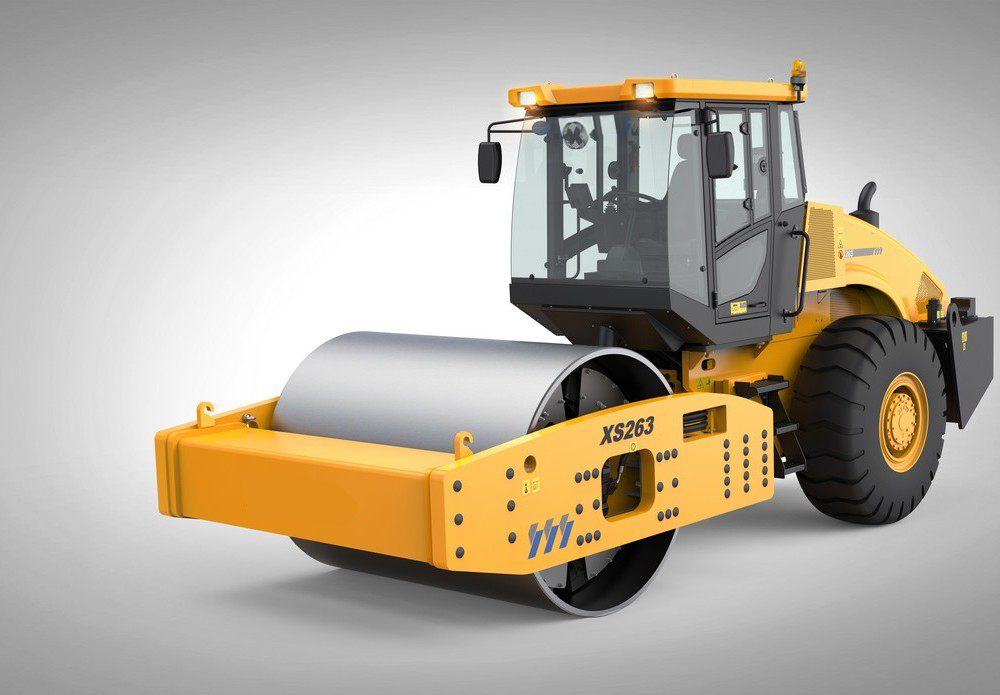

Home > Road machinery>Road roller>XCMG XS263 Hydraulic Single Drum Vibratory Roller





Similar Product

Select the products

<< BACK TO LIST

Item	Unit	Specification
Working performance
Static linear load	N/cm	784
Vibration frequency	Hz	27/32
Theoretical amplitude of vibration	mm	1.9/0.95
Centrifugal force	kN	410/300
Drum width	mm	2170
Min. ground clearance	mm	457
Travelling performance
Speed range I	km/h	0-3.4
II	km/h	0-5
III	km/h	0-5.2
IV	km/h	0-10.4
Theoretical gradeability	%	50%
Min. turning radius	mm	6964
wheel base	mm	6964
Weight
Operating weight	kg	26000
Distributed weight on front drum	kg	9000
Distributed weight on vibrating drum	kg	17000
Dimensions
Overall dimensions(L×W×H)	mm	6877×2430×3330
Engine
Model		Shangchai
Rated speed	r/min	2000
Rated power	kW	162
The fuel consumption	g/kW·h	218
