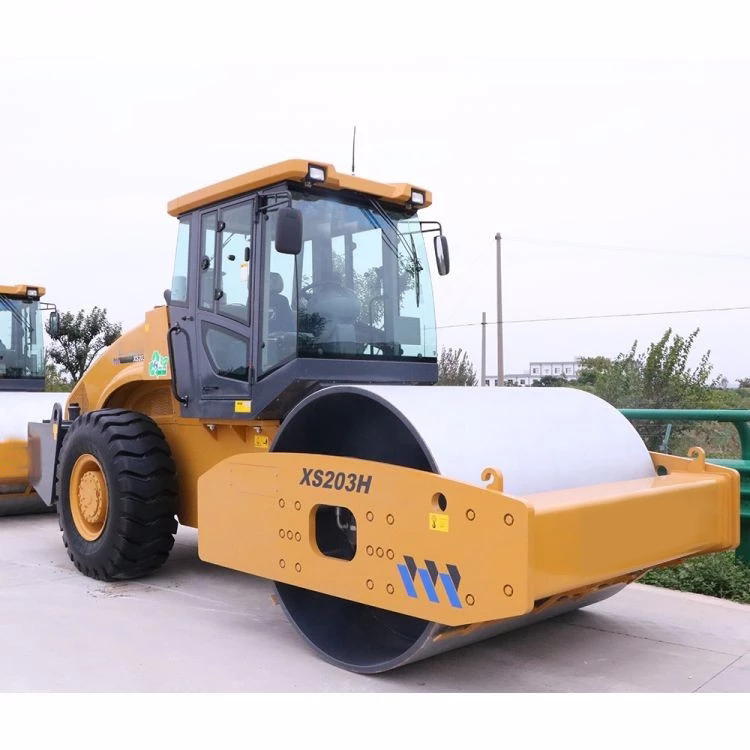

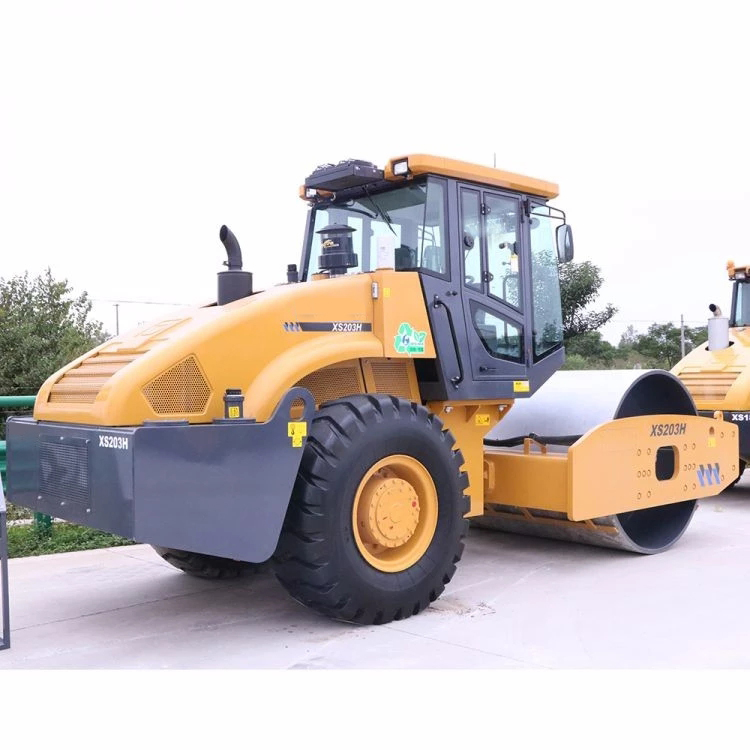

Home > Road machinery>Road roller>XCMG XS203H Hydraulic Single Drum Vibratory Roller





Similar Product

Select the products

<< BACK TO LIST

Main parameter:
Operating weight :20 tons ,
Drum width: 2130 mm,

Detailed configuration
SHANGCHAI SC7H190G3 engine 140kw ,
Rexroth hydraulic system,
DANA axle

Description	Unit	Parameter value
Work weight	kg	20000
Drive wheel distribution weight	kg	10000
Vibratory drum distribution weight	kg	10000
Static line load	N/cm	470
Vibration frequency	Hz	28/33
Theoretical amplitude	mm	1.9/0.95
Exciting force	kN	353/245
Speed range Ⅰ	km/h	0-5.5
Speed range Ⅱ		0-8.5
Wheelbase	mm	3180
Compaction width	mm	2130
Theoretical climbing ability	%	39
Minimum turning radius	mm	6500
Vibratory drum diameter	mm	1600
Minimum ground clearance	mm	440
Engine Model	Model	SC7H190G3
Rated speed	r/min	2200
Rated power	kW	140
Dimensions	mm	6220×2430×3200
Vibration system pressure	MPa	35
Steering system pressure	MPa	38
Drive system pressure	MPa	16
