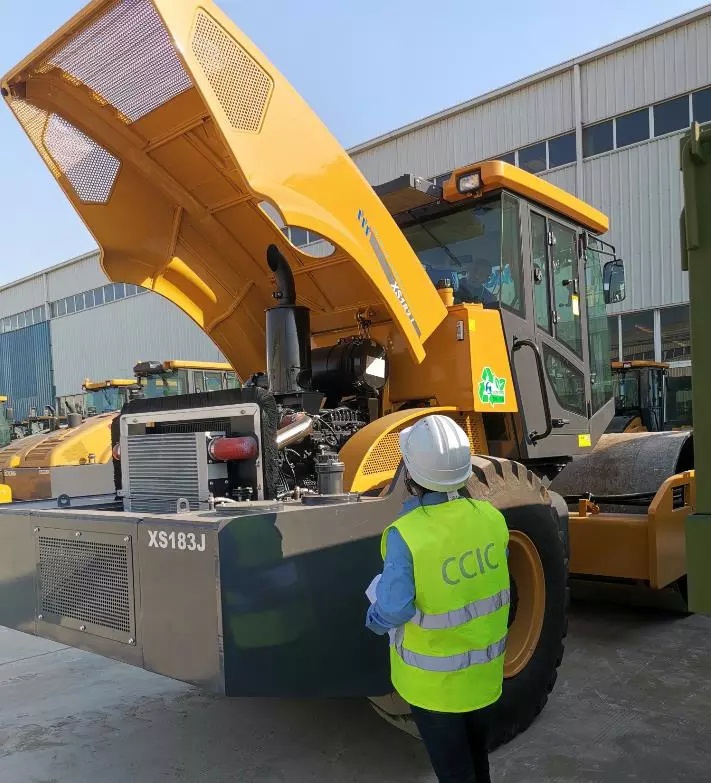

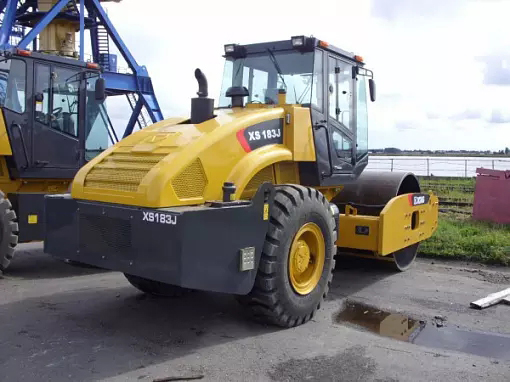

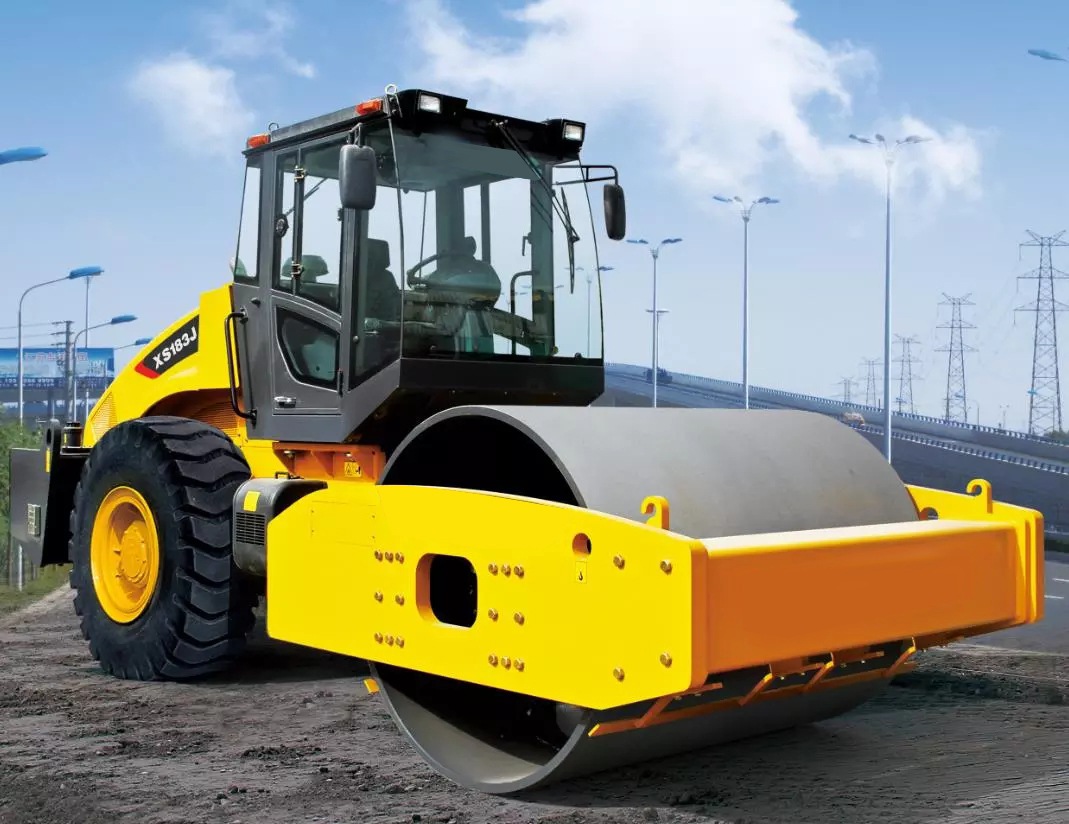

Home > Road machinery>Road roller>XCMG XS183J Mechanical Single Drum Vibratory Roller





Similar Product

Select the products

<< BACK TO LIST

Item	Unit	Specification
Working performance
Static linear load	N/cm	422
Vibration frequency	Hz	28
Theoretical amplitude of vibration	mm	1.9/0.95
Centrifugal force	kN	320/160
Travelling performance
Speed range Forward I	km/h	2.54
Forward II	km/h	4.97
Forward III	km/h	10.51
Backward I	km/h	2.52
Backward II	km/h	4.98
Backward III	km/h	-
Theoretical gradeability	%	30%
Min. turning radius	mm	6500
Braking distance	m	＜3.8
Weight
Operating weight	kg	18000
Distributed weight on driving drum	kg	9000
Distributed weight on vibrating drum	kg	9000
Dimensions
Overall dimensions(L×W×H)	mm	6220×2390×3200
Wheel base	mm	3180
Drum width	mm	2130
Steering angle.	°	±33
Oscillation angle	°	±11
Min. ground clearance	mm	448
Engine
Model		Shangchai SC8D156.2G2B1
Rated speed	r/min	1800
Rated power	kW	118
Emission Standard		Non-road, National II
