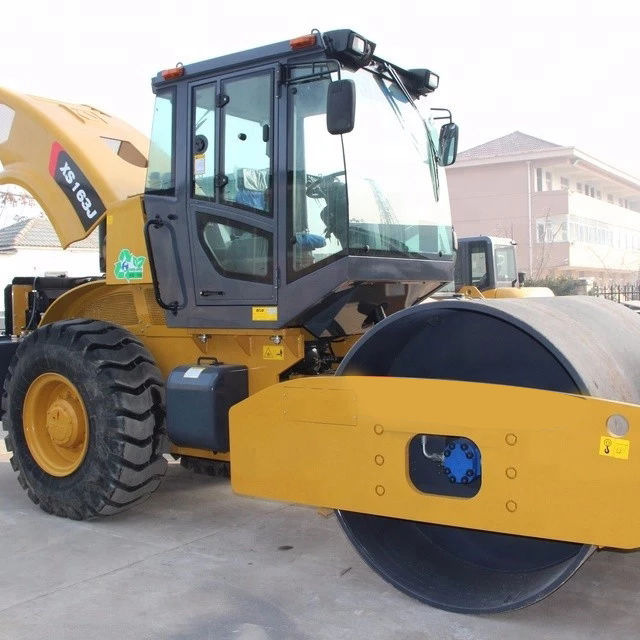

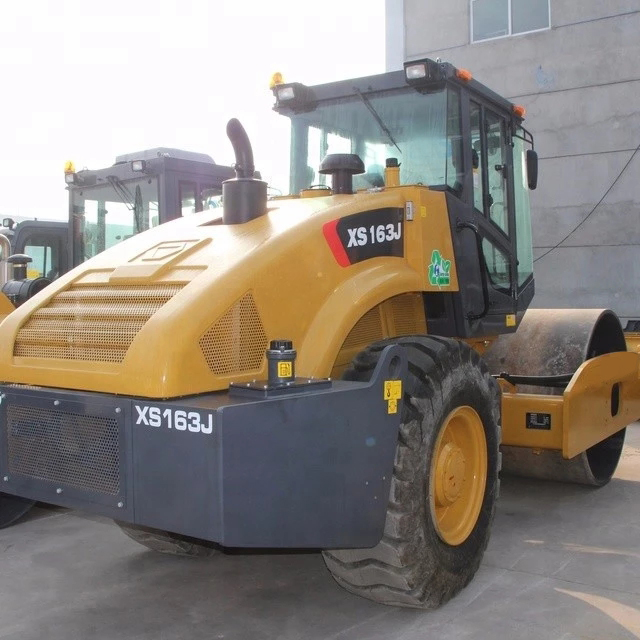

Home > Road machinery>Road roller>XCMG XS163J Mechanical Single Drum Vibratory Roller





Similar Product

Select the products

<< BACK TO LIST

Main parameter:
Operating weight :16 tons ,
Drum width: 2130 mm,

Detailed configuration
shangchai SC4H140.192 engine 103KW ,
Rexroth hydraulic system,
DANA axle
Driving cabin with air conditioner equipped,

Model	Unit	XS163J
Operating weight	kg	16000
Load applied on front drum	kg	7700
Static linear load	N/cm	362
Speed range	km/h	F/R
Gear I	km/h	2.85/2.88
Gear II	km/h	5.08/5.02
Gear III	km/h	11.17/-
Theoretical gradeability	%	30
Min. outer turning radius	mm	6500
Steering angle	°	±30
Swing angle	°	±11
Vibration frequency	Hz	28
Nominal amplitude (high/low)	mm	1.9/0.95
Exiting force (high/low amplitude)	kN	290/145
Engine model		Shanghai Diesel Engine SC4H140.192
Type		/
Max. power	kW	103
Hydraulic tank capacity	L	170
Fuel tank capacity	L	310
