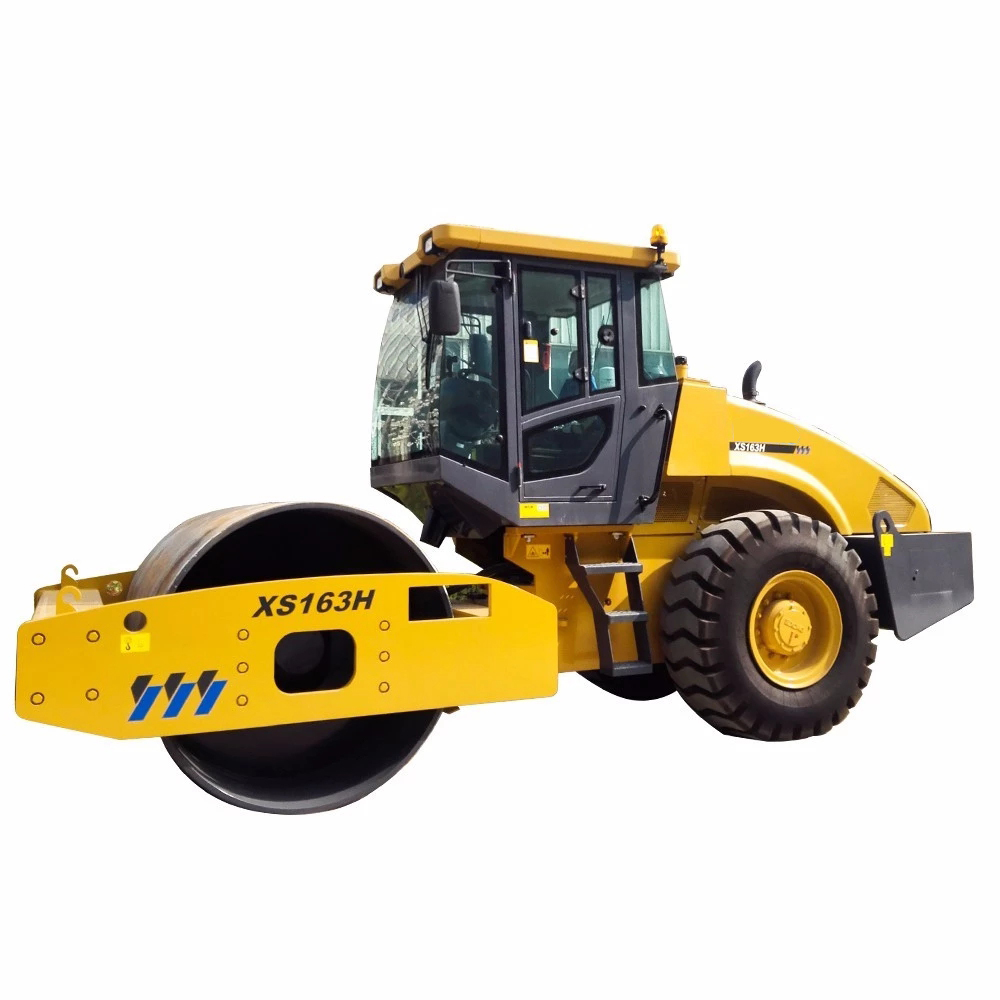

XCMG XS163H Hydraulic Single Drum Vibratory Roller


Similar Product





<<  BACK TO LIST

The XS163H full-hydraulic single-drive vibratory roller is more comfortable to maneuver with superior compaction performance and efficiency. It is suitable for compaction operations such as concrete, stabilized soil, pebbles, sandy soil, and sticky soil. It is an ideal compaction device for the construction of high-grade highways, airports, ports, and embankments.



Basic specification

Engine model

Shangchai

Rated power/speed

110kW/2300rpm

Dimension(LxWxH)

8900×2625×3470mm

Operating weight(Standard)

16000kg

Performance specification

Travelling speed ,forward

5,8,11,19,23,38 km/h

Travelling speed ,reverse

5,11,23 km/h

Tractive force(f=0.75)

77KN

Max. gradeability

20%

Tire inflation pressure

260 kPa

Working hydraulic pressure

16 MPa

Transmission pressure

1.3~1.8MPa

Operating specification

Max. steering angle of front wheels

±50°

Max. lean angle of front wheels

±17°
