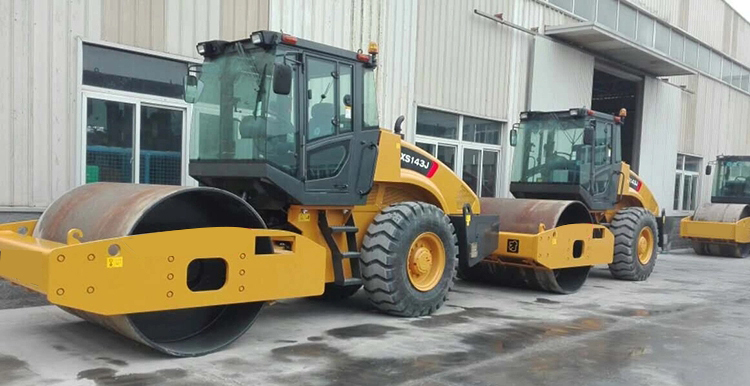

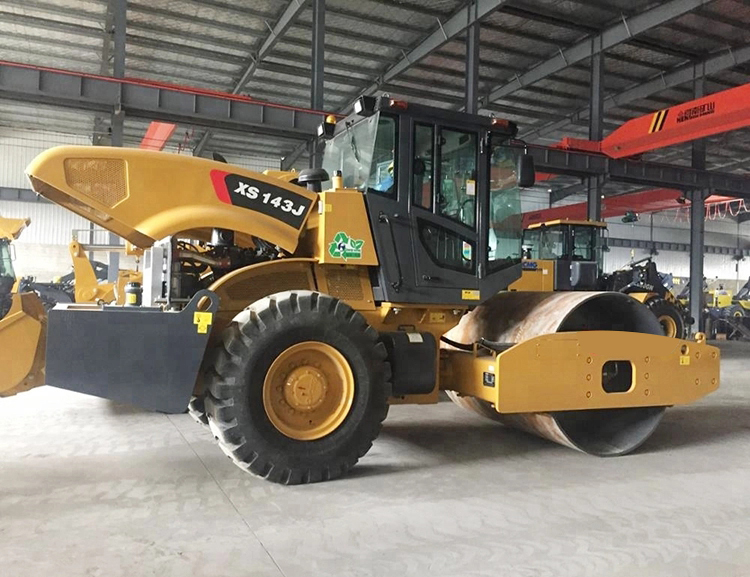

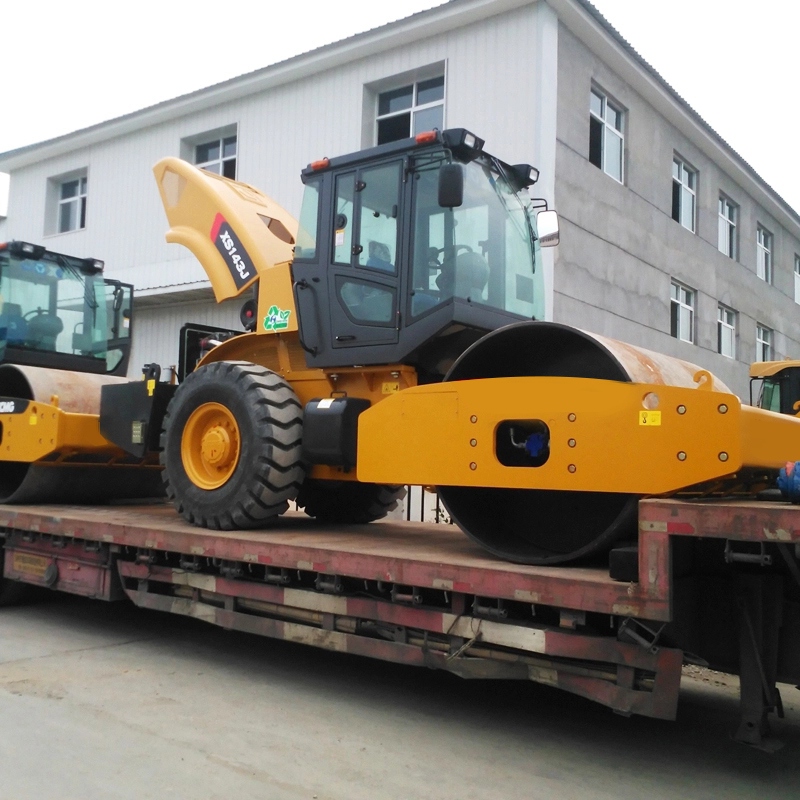

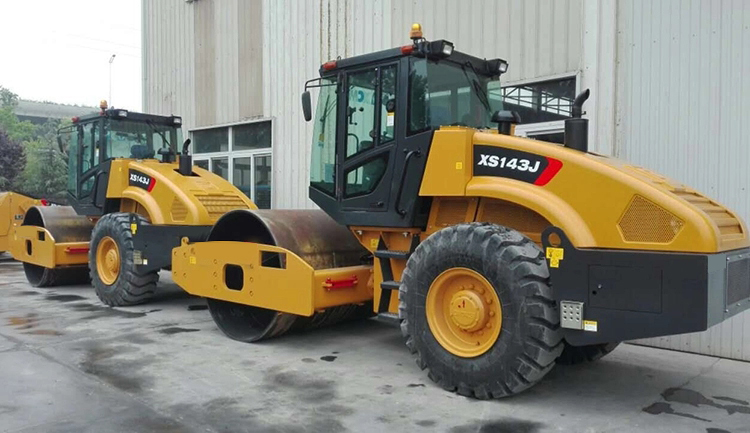

XCMG XS143J Single drum vibratory roller has a very high static line load and exciting force and is suitable to the compaction operation of pebbles, sandy soils, moraine soil, blasting rock and clayey soil, etc. and it is also suitable to the compaction of concrete and stabilized soil base materials in various large projects.
Description | Unit | Parameter |
Operating weight | kg | 14000 |
Distributed mass of driving wheel | kg | 7300 |
Distributed mass of vibrating drum | kg | 6700 |
Static linear load | N/cm | 315 |
Vibration frequency | Hz | 28/33 |
Theoretical amplitude | mm | 1.9/0.95 |
Cenerifugal force | kN | 274/137 |
Wheelbase | mm | 3040 |
Compacting width | mm | 2130 |
Theoretical gradeability | % | 30 |
Engine Model | SC4H140.1G2 | |
Engine Rated speed | r/min | 1800 |
Engine Rated power | kW | 103 |
External dimension(length*width*height) | mm | 6010*2300*3200 |
Pressure of vibration system | MPa | 18 |
Pressure of steering system | MPa | 16 |
