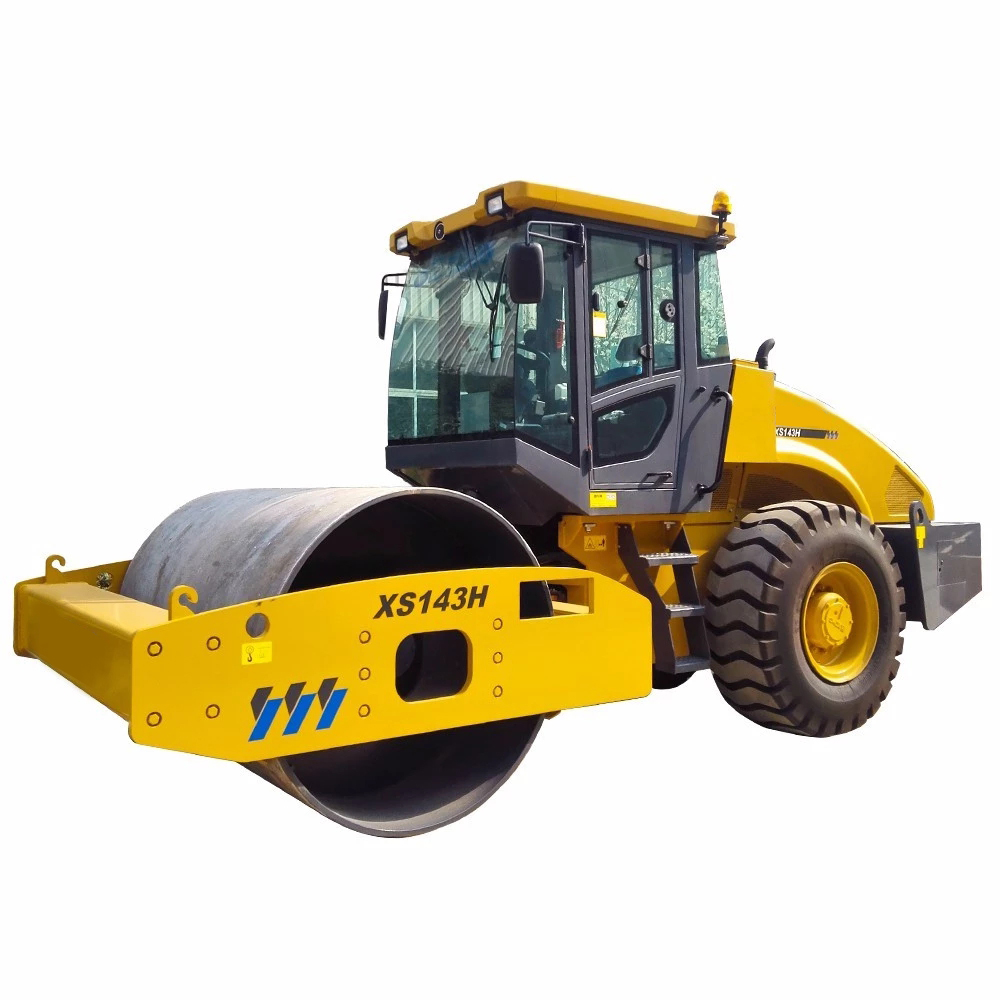

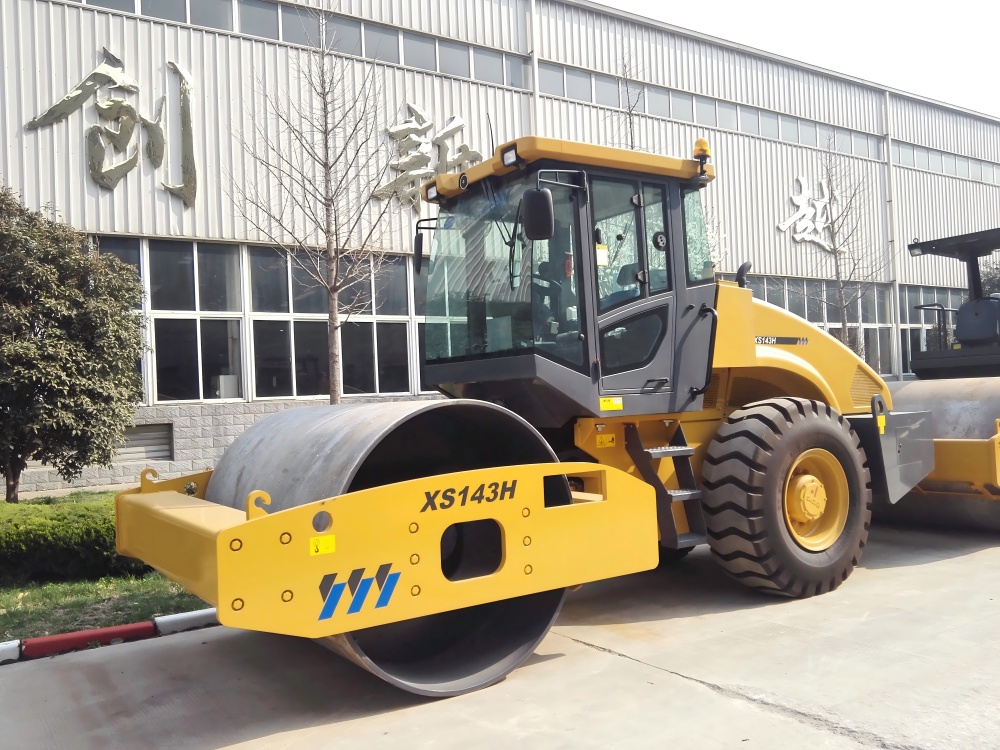

The XS143H fully hydraulic single-drive vibratory roller is more comfortable to operate and offers superior compaction performance and efficiency.
It is suitable for compaction operations such as concrete, stabilized soil, pebbles, sandy soil, and sticky soil. It is an ideal compaction device for the construction of high-grade highways, airports, ports, and embankments.
Specification
Type | Unit | XS143H |
Operating weight | kg | 14000 |
Load on front drum | kg | 8200 |
Load on rear wheels | kg | 5800 |
Drum width | mm | 2130 |
Static linear load | N/cm | 385 |
Vibration frequency(Low/High) | Hz | 28/35 |
Nominal amplitude(High/Low) | mm | 1.86/0.88 |
Excitation force(High/Low) | KN | 305/225 |
Travel speed | km/h | 0~12 |
Steering angle | ° | ±33 |
Swing angle | ° | ±10 |
Theoretical gradeability | % | 55 |
Min. external turning radius | mm | 6415 |
Engine model | Shangchai | |
Engine power | kw | 100 |
Dimension | mm | 6150x2300x3200 |
