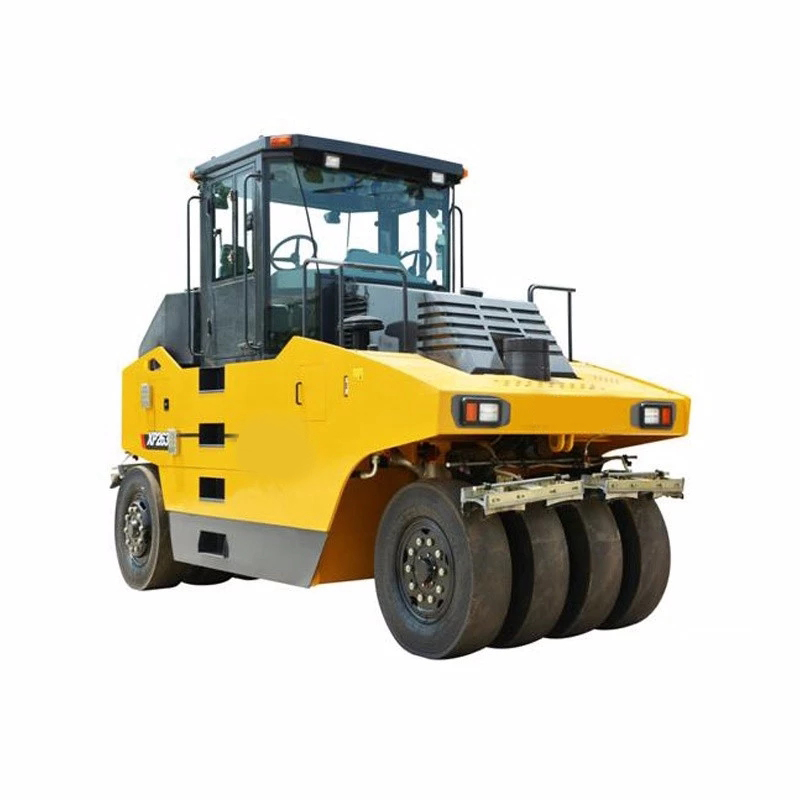

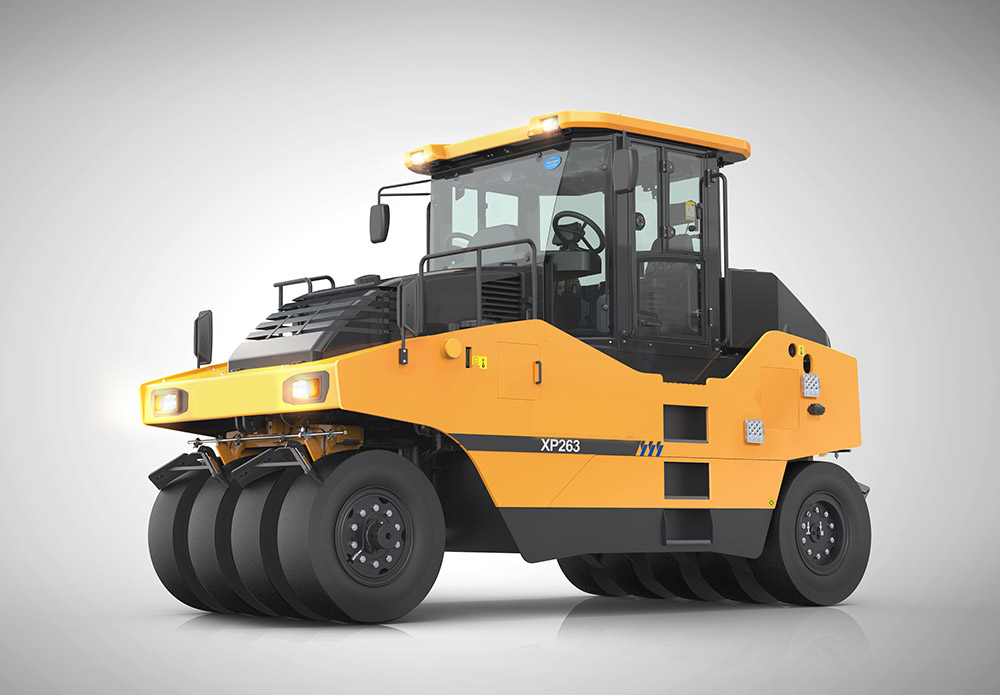

Home > Road machineryRoad roller XCMG XP263 Tyre Roller
XP263 tire roller is a self-propelled static roller, suitable for compacting asphalt pavement, foundation layer, sub-base layer and filling project, etc. It is an indispensable compaction equipment for road construction and water conservancy construction.
Item | Unit | Specification |
Weight | ||
Operating weight | kg | 15000 |
Counter weight | kg | 10550 |
Water weight | kg | 650 |
Max. working weight | kg | 26300 |
Working performance | ||
Compaction width | mm | 2360 |
Overlap of front and rear wheels | % | 65 |
Ground pressure | kPa | 200-470 |
Min. ground clearance | mm | 300 |
Travelling performance | ||
Speed range Forward I |
km/h |
0-8 |
Forward II | km/h | 0-20 |
Forward III | km/h | - |
Backward I | km/h | 0-8 |
Backward II | km/h | 0-20 |
Wheel base | mm | 3840 |
Wheel track | mm | 510 |
Theoretical gradeability | % | 20% |
Min. turning radius | mm | 7620 |
Engine | ||
Model | SC7H160.2G3 | |
Rated speed | r/min | 1800 |
Rated power | Kw | 132 |
The fuel consumption | g/Kw·h | ≤235 |
Max. torque | N.m | 765 |
Displacement | L | 8.27 |
Dimensions | ||
Overall dimensions(L×W×H) | mm | 5015×2530×3310 |
