Home > Road machineryRoad rollerXCMG XMR083 Light-weight Roller

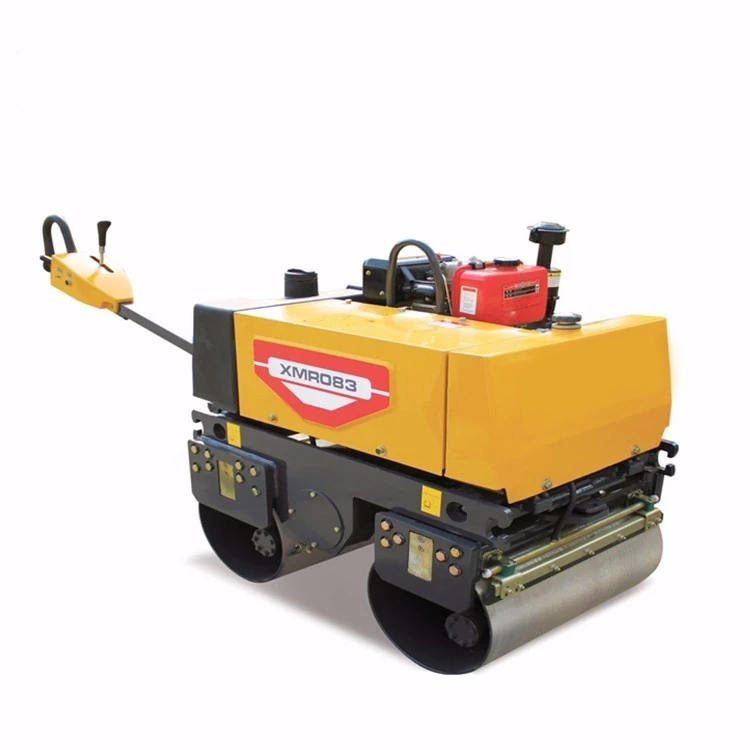

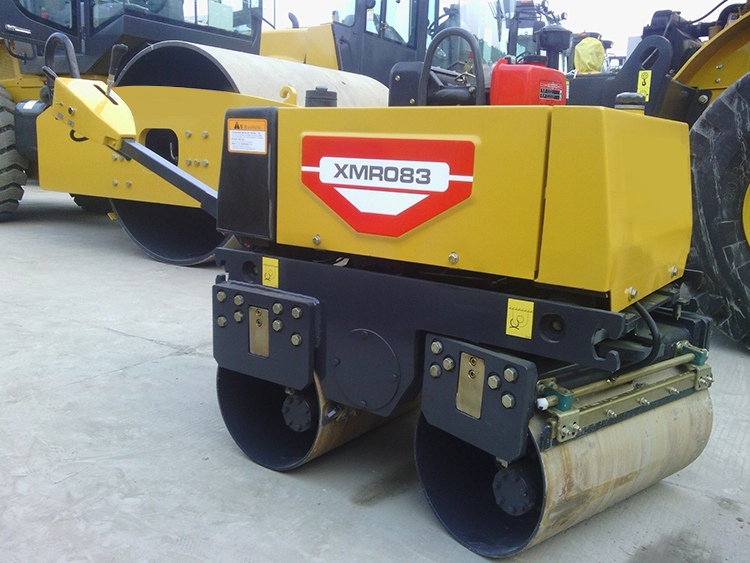

XMR083 is walk-behind double drum vibratory roller with operating mass of 0.8 tons, has features such as electromagnetic vibration, valve control hydraulic steering and comfortable operation.
It is mainly used for compacting asphalt concrete surface layer, especially for urban roads, stadiums and other minor works. Can also be used for small and medium base, sub base and compacted materials. Has good edge compaction performance, in narrow job sites and groove-based shows its unique advantages.
Item | Unit | XMR083 |
Operating mass | kg | 800 |
Drum diameter | mm | 400 |
Drum width | mm | 708 |
Speed range | km/h | 0～3.6 |
Theoretical gradeability | % | 30 |
Minimum turning radius | mm | 3135 |
Minimum ground clearance | mm | 250 |
Wheel base | mm | 720 |
Steering angle | ° | ±15 |
Vibrational frequency | Hz | 55 |
Nominal amplitude | mm | 0.32 |
Exciting force | kN | 15.8 |
Engine type | 186F | |
Rated speed | r/min | 2600 |
Engine rated power | kW | 5 |
Engine fuel consumption | g/kW.h | 280 |
Overall dimension（LxWxH） | mm | 2695×760×1200 |
Hydraulic tank volume | L | 16 |
Diesel tank volume | L | 5.5 |
Water tank volume | L | 40 |
