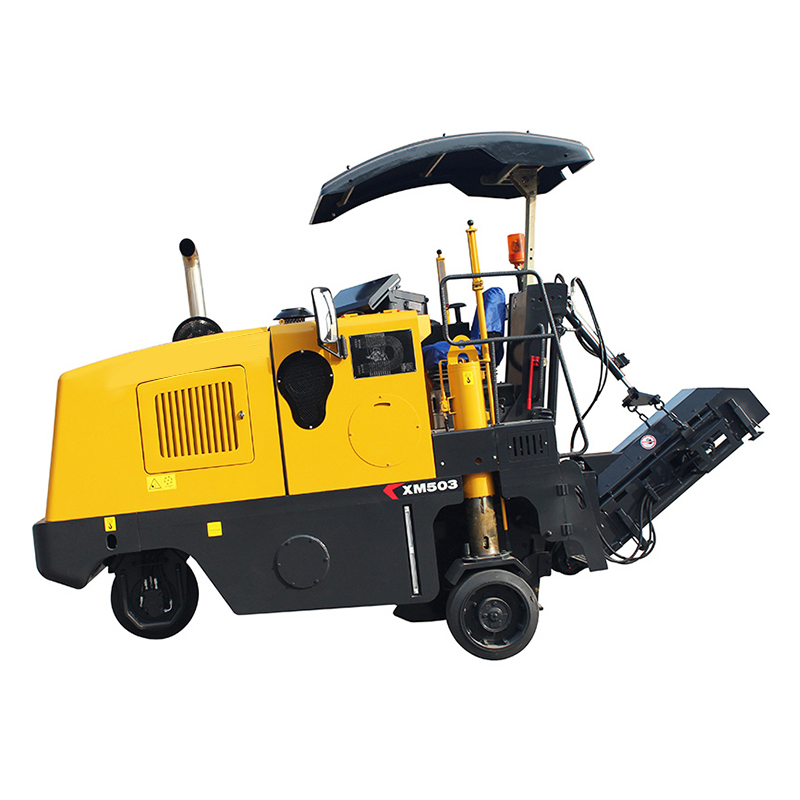

XCMG XM503 Milling Machine


Similar Product


Select the products




<<  BACK TO LIST

Model



XM503

Engine

Model


Shangchai

Rated Power/ Speed

kw/rpm

92/2200

Operating Speed

m/min

0~40


Driving Speed

km/h

0~6

Specifications

Gradeability

%

50

Ground clearance

mm

180

Operating Weight

kg

7800/7300

Max Milling Width

mm

500


Max Milling Depth

mm

180

Operating Parameters

Number of tools


54

Drum diameter with tools

mm

660

Overall Size

Machinery (LxWxH)

mm

3785x1765x3346


Conveyor (LxWxH)

mm

2000x800x600

Fuel Tank Capacity

L

140

Hydraulic Oil Tank Capacity

L

120

Water Tank Capacity

L

300
