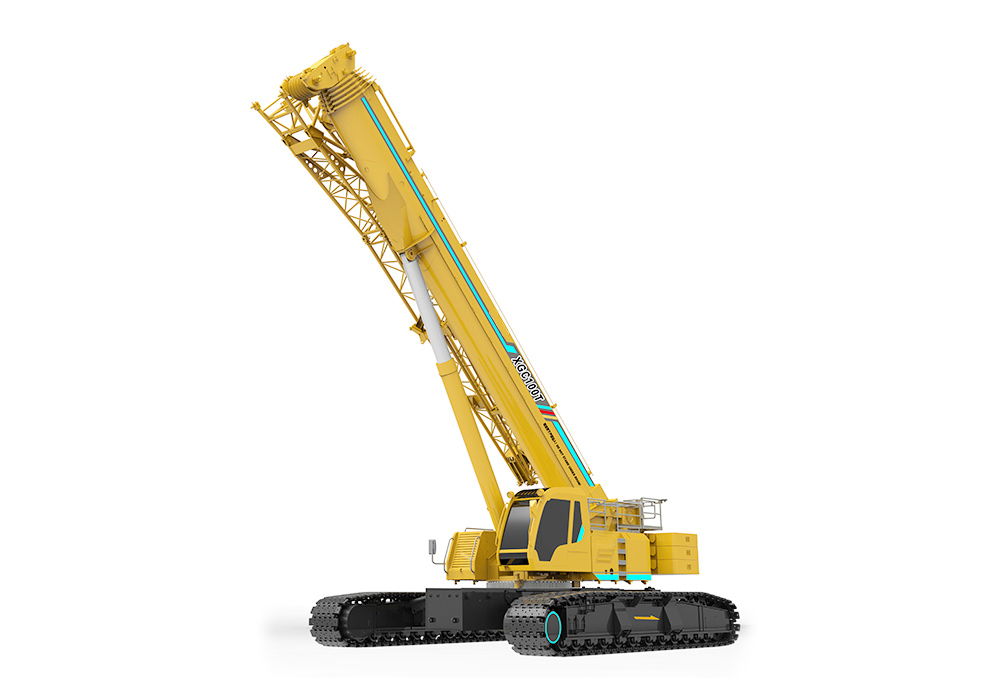

Based on many years’ development and application experiences of telescopic crawler crane, XCMG launched the new generation XGC100 in 2013 according to the market demands. Inheriting the advantages from the old generation product, XGC100T telescopic crawler crane pays more attention to the improvement of lifting performance, assembly/disassembly and transport convenience and operation comfort. It will bring new experience to customers with multiple outstanding features such as new appearance, industry leading lifting capacity and perfect self-assembly and disassembly function.
Item | Unit | Specification |
Dimension | ||
Overall length | (mm) | 14747 |
Overall width | (mm) | 6300/3920 |
Overall height | (mm) | 3463 |
Main. Driven wheel center distance | (mm) | 6425 |
crawler width | (mm) | 900 |
Weight | ||
Dead weight in travel state | (kg) | 105287 |
Travel | ||
No load travel speed | (km/h) | 3.2 |
Full load travel speed | (km/h) | 1 |
Min. ground clearance | (mm) | 341 |
Max. gradeability | (%) | 60 |
Ground pressure | (MPa) | 0.089 |
Engine | ||
Noise | (A) | 80 |
Engine model | - | QSL8.9 |
Engine rated output | (kW) | 224 |
Engine rated Speed | (r/min) | 1800 |
Engine emission standard | Off road EU Stage IIIA | |
Volume | ||
Hydraulic oil tank volume | (L) | 1100 |
Fuel tank volume | (L) | 600 |
Lifting performance | ||
Max. total rated lifting load | (t) | 100 |
Min. rated working radius | (m) | 3 |
Base boom max. load moment | (kN·m ) | 3920 |
Full extend boom max. load moment | (kN·m ) | 1605 |
Lifting height-base boom | (m) | 13 |
Lifting height-full extend boom | (m) | 55.6 |
Lifting height-full extend boom + jib | (m) | 71.2 |
Base boom | (m) | 12.2 |
Full-extend boom | (m) | 56 |
Full-extend boom+Jib | (m) | 74.1 |
Jib angle | (°) | 0°、15°、30° |
Working speed | ||
Boom elevating time | (s) | 70 |
Boom telescoping time | (s) | 400 |
Max. slewing speed | (r/min) | 2.2 |
Main winch max. speed(single line) | (m/min ) | 140 |
Auxiliary winch max.speed(single line) | (m/min ) | - |
