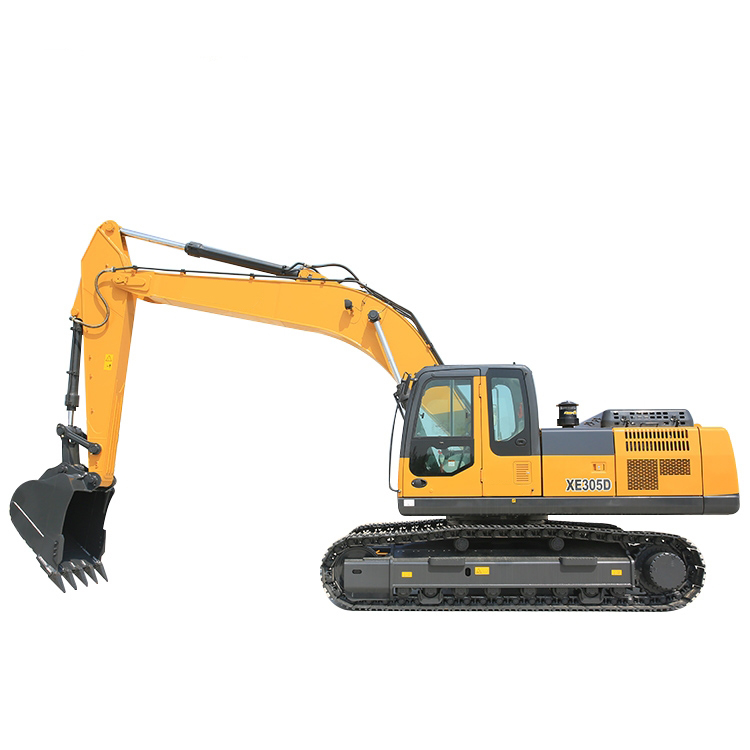

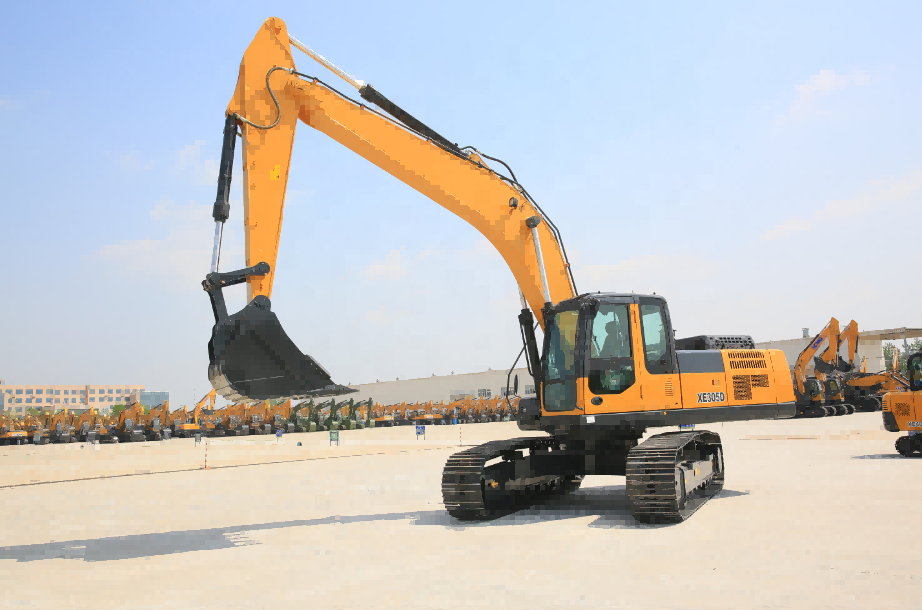

Home > Earth moving machineryExcavator XCMG XE305D Crawler Excavator
Main components:
Operation Weight: 30800kg
Engine: Cummins QSB7
Rated Power: 169kW/2050rpm
Main pump: Kawasaki K5V140DTP
The domestic leading hydraulic system distribution technology features high energy-saving and efficiency.
The highest breakout force on the loading end is leading the industry by 15%~20% compared with like models.
The advanced structure and hinge points on the digging end and the industry’s largest rotating angle of the bucket ensure strong soil holding capacity.
Item | Unit | Specification (XE305D) |
Operating weight | kg | 30800 |
Bucket capacity | CBM | 1.2-1.6 |
Model | Engine | QSB7 |
No. of cylinders | --- | 6 |
Output power | kW/ r/min | 169/2050 |
torque/speed | N.m | 895/1250 |
Displacement | L | 6.7 |
Travel speed(H/L) | km/h | 5.2/3.1 |
Grade ability | % | 70 |
Rotary speed | r/min | 9.8 |
Ground pressure | K Pa | 60 |
Bucket digging force | KN | 198 |
Arm digging force | KN | 138 |
Main pump | -- | K5V140DTP |
Rated flow of main pump | L/min | 2×140 |
Main safety valve pressure | M Pa | 34.3/37 |
Pressure of pilot system | M Pa | 3.9 |
Fuel tank capacity | L | 520 |
Hydraulic tank capacity | L | 270 |
Engine oil capacity | L | 20 |
Overall length | mm | 10645 |
Overall width | mm | 3190 |
Overall height | mm | 3410 |
Width of platform | mm | 3050 |
Length of crawler | mm | 4944 |
Overall width of chassis | mm | 3190 |
Width of crawler | mm | 600 |
