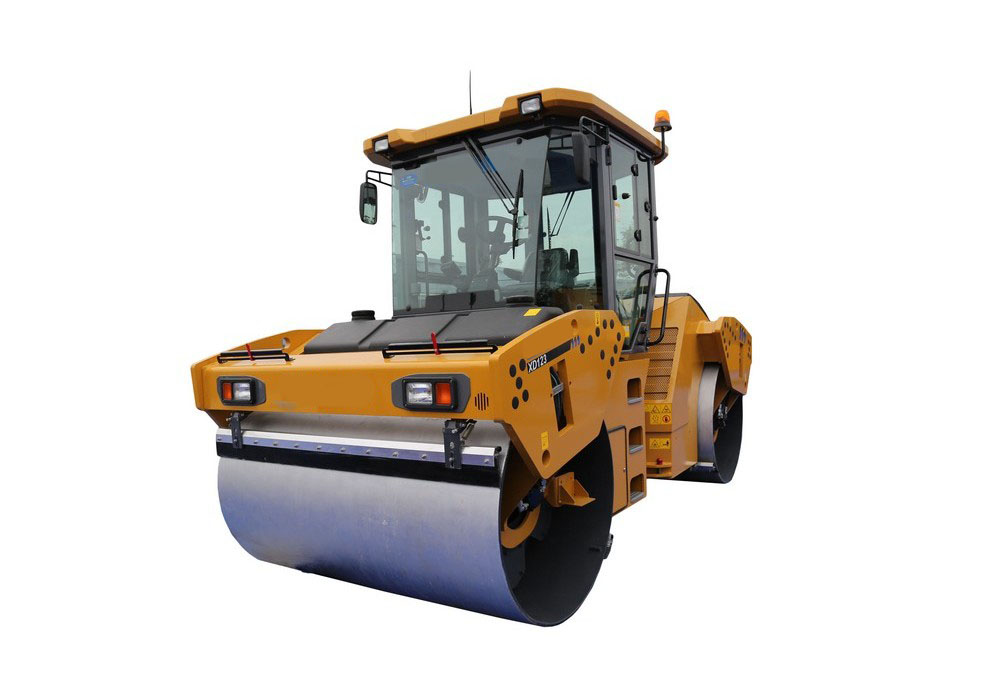

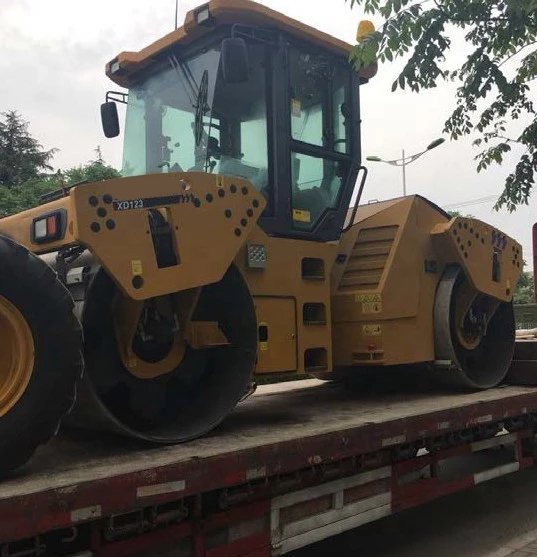

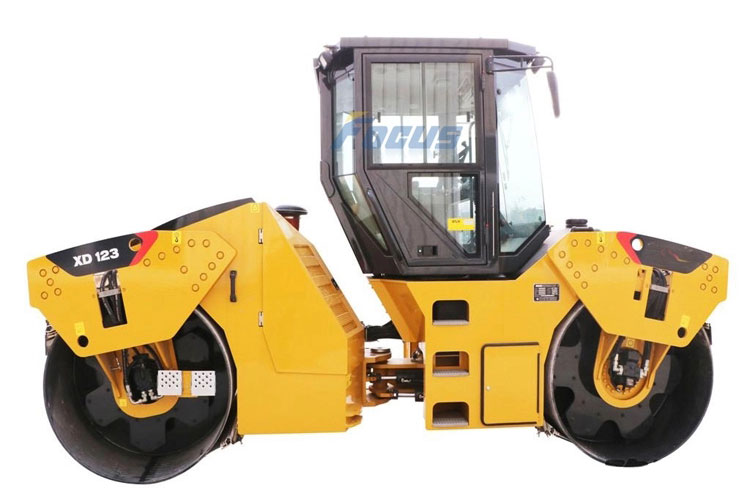

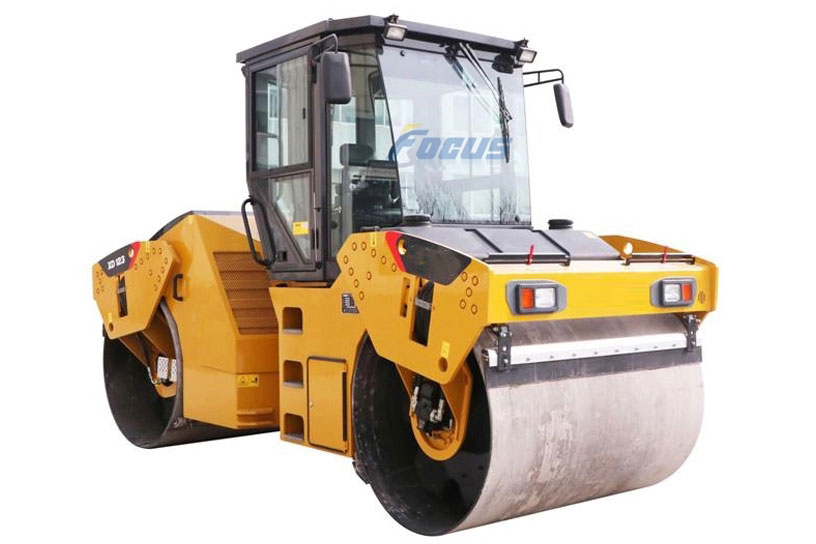

Home > Road machineryRoad rollerXCMG XD123 Hydraulic Double Drum Vibratory Roller
Similar Product
Select the products
Main parameters:
Operating weight :12 tons ,
Vibration frequency : 45/55 Hz,
Drum width:2130 mm,
Detailed configuration
Deutz BF4M2012C engine,119Kw,
Saul hydraulic system,
Electronic control system ,
Driving cabin with air conditioner equipped,
Advantages
Adopt top brand engine , pump ,vibratory bearing .Great working performance .
High vibrational frequency ensure good effect of compaction .
XD123 vibratory roller is suitable for road compaction operations of roads, parking lots, airports and other large projects. It can also be used to compact roadbed and sub-base materials, and has a wide range of applications.
Parameter | Unit | XD123 | |
Weight distribution | Working weight | kg | 12300 |
Front wheel distribution weight | 6150 | ||
Rear wheel distribution weight | 6150 | ||
Maneuverability | Speed range | km/h | I 0-6 / II 0-12 |
Theoretical gradeability | % | 35 | |
Minimum turning radius mm (in/out) | 4800/6930 | ||
Largest amount of crab | mm | ±160 | |
Swing angle | ° | ±8 | |
Steering angle | ° | ±35 | |
Compaction performance | Static linear load | N/cm | 283/283 |
Nominal amplitude | mm | 0.3/0.75 | |
Vibration frequency | Hz | 55/45 | |
Exciting force (high frequency/low frequency) | kN | 85/140 | |
Engine | Type | In-line four-cylinder pressurized water cooling type | |
rated power | kw | 119 | |
rated speed | r/min | 2300 | |
Overall dimensions(L×W×H) | mm | 5700*2420*3020(3220) | |
