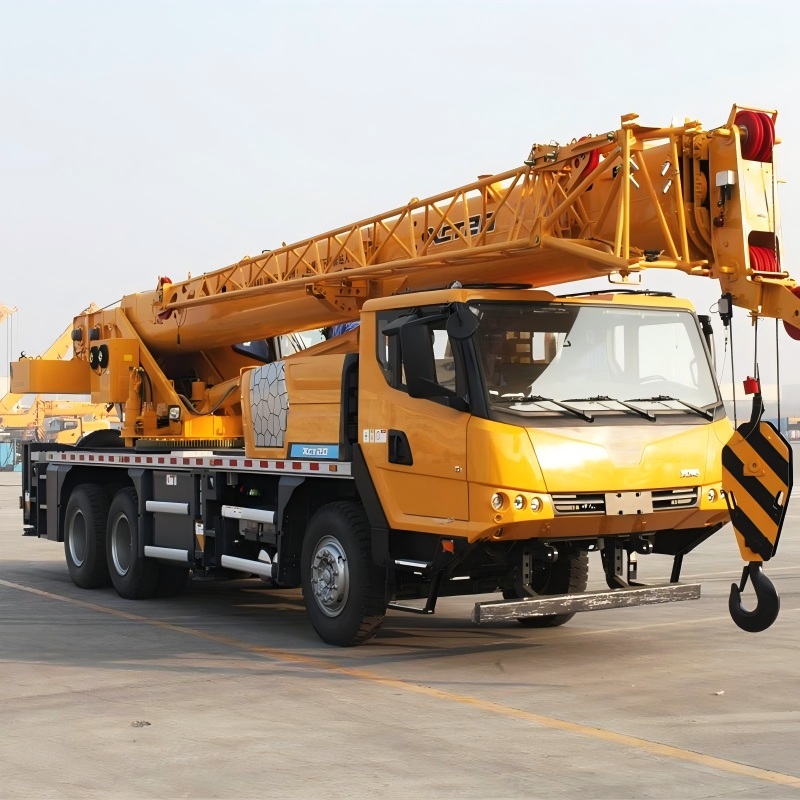

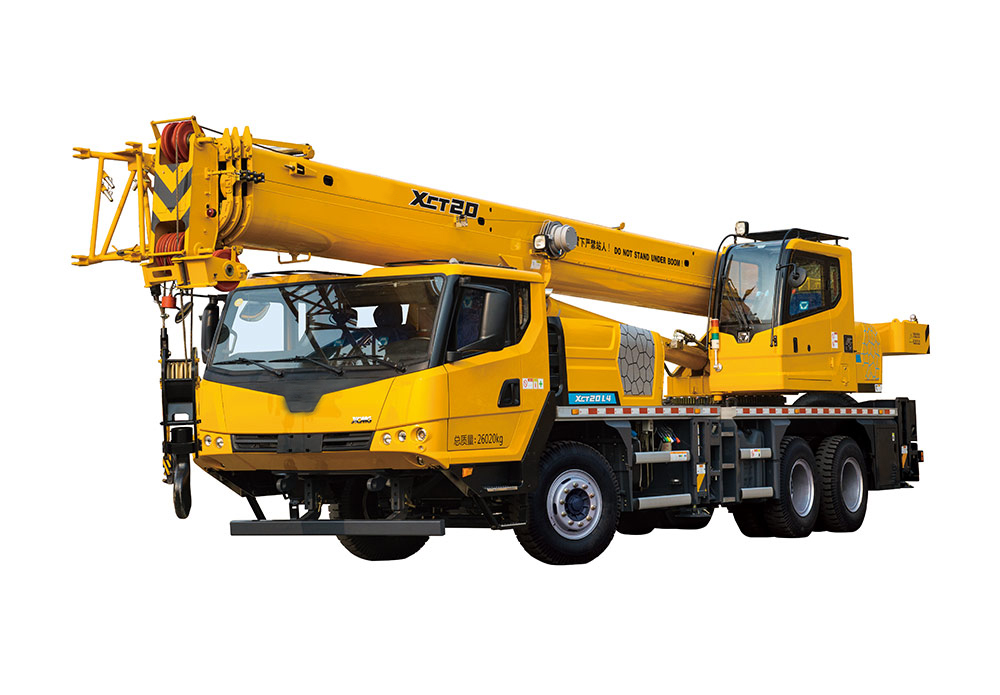

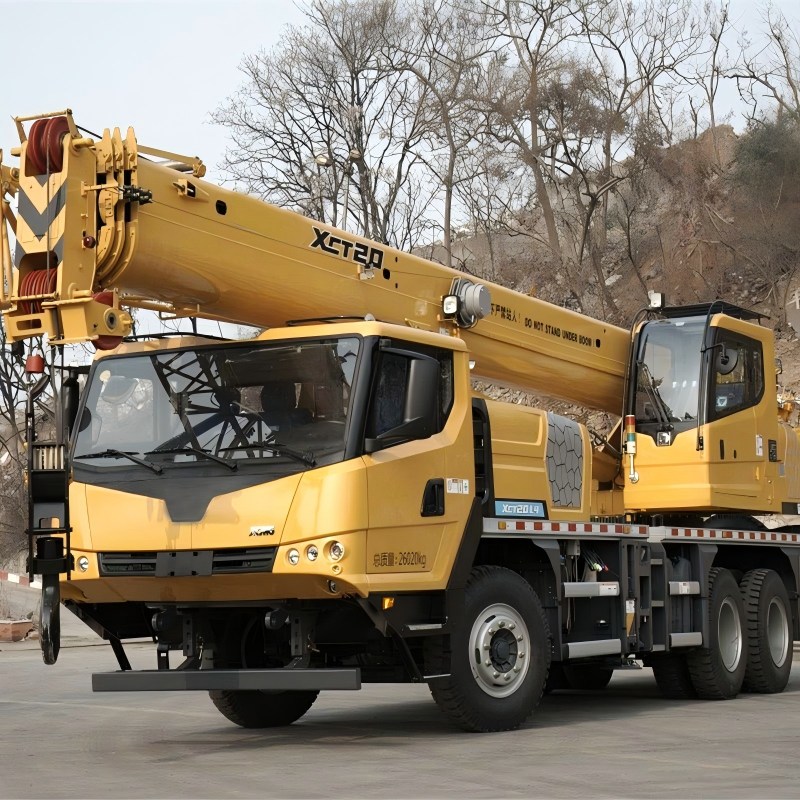

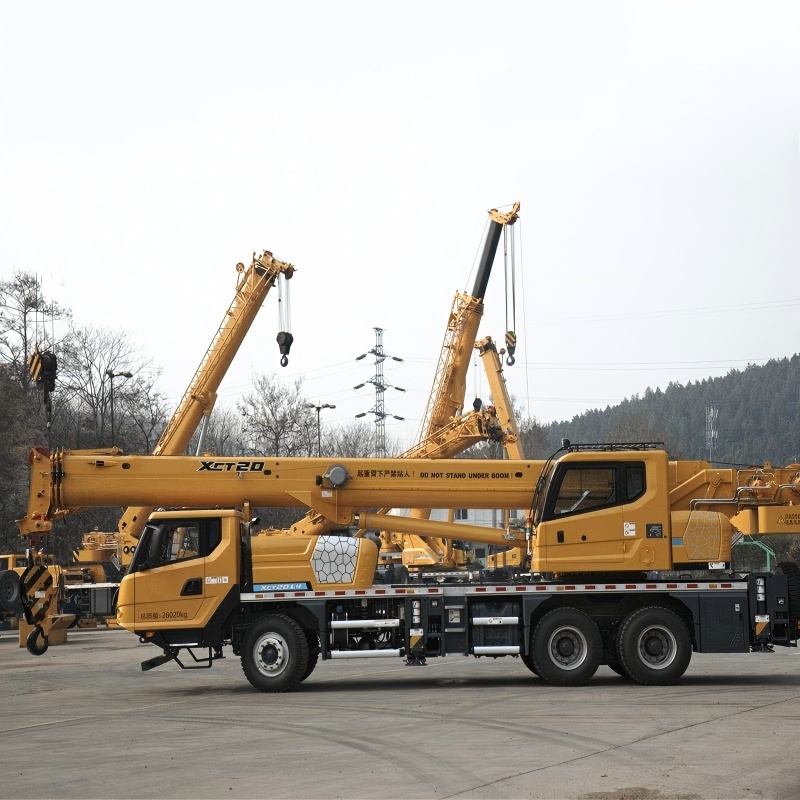

XCMG XCT20L4 Truck Crane


Similar Product





<<  BACK TO LIST

XCT20L4 has four new section of the U-shaped main boom, the main arm length of 34m, jib length of 8.3m, are leading the industry's highest level; lifting machine industry, the highest performance.Car-level level of interactive system, the whole ergonomic work space design, button partition is more reasonable, more friendly man-machine dialogue, manipulation more comfortable.

Item

Unit

Specification

Dimensions

Overall length

mm

12535

Overall width

mm

2500

Overall height

mm

3420

Wheel base

mm

4425+1350

Wheel track

mm

2027 /1834

Weight

Total weight in travel

Kg

26020

Axle load

Kg

6450/19570

Power

Engine model


SC7H260Q4/WP7.270.E434

Engine rated power

kw/(r/min)

192/2300/199/2100

Engine rated torque

N.m/(r/min)

1000/1200~1600/1160/1200~1500

Travel

Travelling

Max. travel speed

km/h

85/80

Min. stable travel speed

km/h

2~5

Turning

Min. turning diameter

m

20

Min. turning diameter(boom head)

m

24

Max. grade ability

45/50

Min. ground clearance

mm

261

Approach angle

°

19/12(With front protection)

Departure angle

°

13

Braking distance

m

≤10(The speed is 30km/h)

Fuel consumption for 100km

L

30

Lifting performance

Max. total rated lifting capacity

t

20

Min. rated working radius

m

3

Base boom Max. load moment

kN·m

957

Turning radius at turntable tail

mm

3425

Outrigger

Longitudinal distance span

m

5.23

Lateral distance span

m

6.16

Max. lifting height

Base boom

m

10.9

Fully extended boom

m

34.5

Fully extended boom+jib

m

42.8

Fully extended boom+jib+ extension


-

Boom length

Base boom

m

10.6

Fully extended boom

m

34

Fully extended boom+jib

m

42.3

Fully extended boom+jib+ extension

m

-

Working speed

Max. swing speed

r/min

3

Lifting speed

Main winch

s

135

Vice winch

s

135

Boom full extension time

extension

s

50

contraction

s

       -

Boom elevating time

Lifting

s

35

Dropping

s

-

Horizontal

Stretching

s

25

Retracting

s

23

Vertical

Stretching

s

25

Retracting

s

24
